Official File parts/2937.dat
Part Attributes:
File Header:

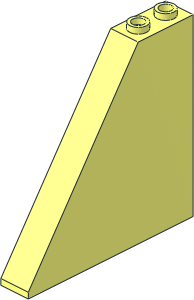

0 Slope Brick 55 1 x 6 x 5 with Bottom Stud Holders
0 Name: 2937.dat
0 Author: Vincent Messenet [Cheenzo]
0 !LDRAW_ORG Part UPDATE 2023-06
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2023-09-29 {LEGO Instructions App} Original part shape
0 !HISTORY 2023-09-29 [Cheenzo] File preparation for LDraw Parts Tracker
0 !HISTORY 2023-11-19 [OrionP] Official Update 2023-06
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\2937s01.dat
4 16 10 116 -100 10 120 -100 10 120 20 10 0 -20
3 16 10 0 -20 10 120 20 10 0 20
4 16 -10 120 -100 -10 116 -100 -10 0 -20 -10 120 20
3 16 -10 0 -20 -10 0 20 -10 120 20
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2023-09-29 20:30:47
2023-09-30 08:12:36
2023-09-30 09:16:25
All slopes have the same error. The height should have been 5 ldu, but for some reason it is only 4 ldu on all slopes.
This has been accepted, but is very annoying.
I think you should change this part, or, we should redesign all slopes, patterned and stickered, to be more accurate.
This has been accepted, but is very annoying.
I think you should change this part, or, we should redesign all slopes, patterned and stickered, to be more accurate.
2023-09-30 12:21:22
is it possible that this issue is from the standard 45° Slope? Because these are 24 high and have a slope of 20x20 which leaves 4...
I guess its wanted to have all slopes to have the same "lip"...
Just checked it: most slopes have the lip height same as stud height (4LDU)
I guess its wanted to have all slopes to have the same "lip"...
Just checked it: most slopes have the lip height same as stud height (4LDU)
2023-10-09 11:22:11
2023-10-10 17:20:55
2023-10-11 17:34:14
2023-11-17 03:22:48
2023-11-19 03:08:49
Release 2023-06
Creative Commons Attribution License information
This part is copyright © Vincent Messenet
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Orion Pobursky,
3D View
Website copyright ©2003-2025 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor,
endorse, or authorize this site. Visit the official Lego website at
http://www.lego.com
I am wondering if this is something to be fixed on 30249, I am ready to do it and this could result in a common subfile for both parts
