Unofficial File p/connectslit3.dat
File Header:

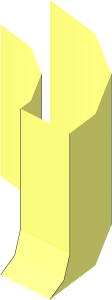

0 Technic Pin Long Middle Slit Quarter with Small Rectangular Hole and Round Center Hole
0 Name: connectslit3.dat
0 Author: Jens Brühl [jb70]
0 !LDRAW_ORG Unofficial_Primitive
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 6 4 0 0 -1 -0.199 1 0 0 0 0 1 8\1-4ndis.dat
1 16 0 0 0 0 0 6 0 5 0 6 0 0 3-16cyli.dat
4 16 5.5434 0 2.2962 5.801 0 1 5.801 5 1 5.5434 5 2.2962
4 16 3.801 0 1 3.6956 0 1.5308 3.6956 5 1.5308 3.801 5 1
0 BFC INVERTNEXT
1 16 6 4 0 0 -2 -0.199 1 0 0 0 0 1 8\1-4cylo.dat
1 16 4 4 0 0 1 -0.199 1 0 0 0 0 1 8\1-4ndis.dat
0 BFC INVERTNEXT
1 16 0 0 0 0 0 4 0 5 0 4 0 0 3-16cyli.dat
5 24 3.6956 5 1.5308 3.6956 0 1.5308 2.8284 5 2.8284 4 5 0
5 24 5.5434 5 2.2962 5.5434 0 2.2962 5.801 5 1 4.2426 5 4.2426
1 16 4.801 2 1 0 0 1 2 0 0 0 1 0 rect2p.dat
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
None
Official parents and subparts
Part Events:
Modified primitive for slots with round inner hole (like 39888.dat)
All cylo and ndis are "rotated of -.199, but not all other faces have vertices in correct position.
You have to change:
4 5 3.7951 -6 1 3.6956 -6 1.5308 3.6956 6 1.5308 3.7951 6 1
in 4 16 3.801 -6 1 3.6956 -6 1.5308 3.6956 6 1.5308 3.801 6 1
1 16 4.7995 0 1 0.003 0 1.003 5 0 0 0 1 0 rect2p.dat
in 1 16 4.801 0 1 0 0 1 5 0 0 0 1 0 rect2p.dat
5 24 5.5434 6 2.2962 5.5434 -6 2.2962 4.2426 -9 4.2426 5.801 -6 1
in 5 24 5.5434 6 2.2962 5.5434 -6 2.2962 4.2426 6 4.2426 6 6 0
1 16 3.9941 -5 0 0 1 -0.199 -1 0 0 0 0 1 8\1-4ndis.dat
in 1 16 4 -5 0 0 1 -0.199 -1 0 0 0 0 1 8\1-4ndis.dat
1 16 3.9941 5 0 0 1 -0.199 1 0 0 0 0 1 8\1-4ndis.dat
in 1 16 4 5 0 0 1 -0.199 1 0 0 0 0 1 8\1-4ndis.dat
You have to add:
5 24 3.6956 6 1.5308 3.6956 -6 1.5308 2.8284 6 2.8284 4 6 0
You have to change:
4 5 3.7951 -6 1 3.6956 -6 1.5308 3.6956 6 1.5308 3.7951 6 1
in 4 16 3.801 -6 1 3.6956 -6 1.5308 3.6956 6 1.5308 3.801 6 1
1 16 4.7995 0 1 0.003 0 1.003 5 0 0 0 1 0 rect2p.dat
in 1 16 4.801 0 1 0 0 1 5 0 0 0 1 0 rect2p.dat
5 24 5.5434 6 2.2962 5.5434 -6 2.2962 4.2426 -9 4.2426 5.801 -6 1
in 5 24 5.5434 6 2.2962 5.5434 -6 2.2962 4.2426 6 4.2426 6 6 0
1 16 3.9941 -5 0 0 1 -0.199 -1 0 0 0 0 1 8\1-4ndis.dat
in 1 16 4 -5 0 0 1 -0.199 -1 0 0 0 0 1 8\1-4ndis.dat
1 16 3.9941 5 0 0 1 -0.199 1 0 0 0 0 1 8\1-4ndis.dat
in 1 16 4 5 0 0 1 -0.199 1 0 0 0 0 1 8\1-4ndis.dat
You have to add:
5 24 3.6956 6 1.5308 3.6956 -6 1.5308 2.8284 6 2.8284 4 6 0
Fixed
2025-02-06 21:25:18
2025-02-07 17:13:53
I think this is too long. Mine are only 4 mm long. On both 32556b and 39888.
2025-02-08 19:48:30
