File Detail parts/39888.dat

Unofficial File parts/39888.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

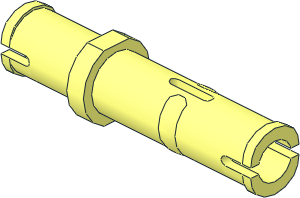

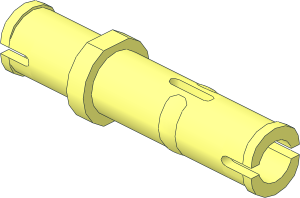

Technic Pin Long without Friction Type 2

File Header:

0 Technic Pin Long without Friction Type 2
0 Name: 39888.dat
0 Author: Jens Brühl [jb70]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 !HELP 32556b and 39888 have different ends
0 !HELP 39888 have a recessed flat surface, not modelled

0 BFC CERTIFY CCW

0 !KEYWORDS BrickLink 32556

0 !HISTORY 2025-02-09 [MagFors] Subfiled

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\32556s01.dat
1 16 30 0 0 0 -1 0 0 0 -1 1 0 0 connectcollar5.dat
1 16 30 0 0 0 -1 0 0 0 1 1 0 0 connectcollar5.dat
1 16 -30 0 0 0 1 0 0 0 -1 1 0 0 connectcollar5.dat
1 16 -30 0 0 0 1 0 0 0 1 1 0 0 connectcollar5.dat
1 16 -23 0 0 0 11 0 0 0 -6 -6 0 0 4-4cyli.dat
0 BFC INVERTNEXT
1 16 15 0 0 0 8 0 0 0 -4 -4 0 0 4-4cyli.dat
1 16 15 0 0 0 8 0 0 0 -6 -6 0 0 4-4cyli.dat
0 BFC INVERTNEXT
1 16 -10 0 0 0 -13 0 0 0 -4 -4 0 0 4-4cyli.dat

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

Has uncertified subfiles

parts/s/32556s01.dat (Needs More Votes)
p/connectslit3.dat (Needs More Votes)
p/connectring.dat (Needs More Votes)
p/connectslit4.dat (Needs More Votes)

Current Votes:

None

Official parents and subparts

Part Events:

Jens Brühl [jb70]

initially submitted the part.

2023-10-05 17:28:30

see https://rebrickable.com/parts/39888/technic-pin-long-without-friction-ridges-with-anti-roll-notch/

Orion Pobursky [OrionP]

submitted a new version of the part.

2024-03-23 00:59:43

Update ring primitives via script. This will not reset the vote status of the part.

Magnus Forsberg [MagFors]

posted a vote of Hold.

2025-02-06 21:24:00

confricrib4 can't be used here. It's open in both ends.

Magnus Forsberg [MagFors]

made the following comment.

2025-02-08 14:49:35

I think this number should be an alias of 32556b, currently missing, but I'm working on it.
None of my 39888 have the recessed flat surface shown on the images at RB, making them identical.
I have also made a new rib primitive to be used on this, and other 3L pins.

Is it ok if I fix this?

Jeff Jones [notmaster]

made the following comment.

2025-02-08 15:04:29

go ahead

Jens Brühl [jb70]

submitted a new version of the part.

2025-02-08 15:52:07

Fixed by using new primitive connectring.dat

Jens Brühl [jb70]

made the following comment.

2025-02-08 16:00:21

Sorry, Magnus. I did not read your comments before submitting. You are free to compare it with your work and choose the best of our parallel work.

Magnus Forsberg [MagFors]

made the following comment.

2025-02-08 16:10:31

I think the ring should be longer, and the slot shorter.

Jens Brühl [jb70]

made the following comment.

2025-02-08 16:15:37

OK! I will fix the slot to 4mm. Do you like to change the ring, if you already made a new one?

Magnus Forsberg [MagFors]

made the following comment.

2025-02-08 16:50:12

No, I did it just like you, only extended it to be 3-8.

Magnus Forsberg [MagFors]

made the following comment.

2025-02-08 16:59:39

I was wrong. There is a recessed surface on one of the flat sections.
Which makes 39888 different from 32556b. No alias.

Magnus Forsberg [MagFors]

made the following comment.

2025-02-08 17:13:07

And you changed the ends, correctly. 39888 should use connectcollar5.
32556a and b have the older design.

Jens Brühl [jb70]

submitted a new version of the part.

2025-02-08 19:50:08

Added blocking center hole, smaller slit and longer ring.

Magnus Forsberg [MagFors]

submitted a new version of the part.

2025-02-09 08:38:53

Magnus Forsberg [MagFors]

edited the part header.

2025-02-09 08:40:13

Header Edits

keywords:

to

description:
Technic Pin Long with Dual Slots and Recessed Surface
to
Technic Pin Long without Friction with Dual Slots and Recessed Surface

Jens Brühl [jb70]

made the following comment.

2025-02-09 14:07:31

If we need to show the recessed surface on this part, we should do it with all Technic Pins "Type 2" like 61332.dat, 42924.dat and 65304.dat as well. The all have the same design of collar.
From functional aspect of part usage I think, we could keep the "simplified" design of 61332.dat, 42924.dat and 65304.dat and use it for 39888.dat as well.

Magnus Forsberg [MagFors]

made the following comment.

2025-02-09 15:13:45

Ok, I'll remove the recessed surface.

Magnus Forsberg [MagFors]

made the following comment.

2025-02-09 15:18:43

Why did you not place the stopper ring surface in the primitive?

Jens Brühl [jb70]

made the following comment.

2025-02-09 15:37:07

Which primitive do you mean?

Magnus Forsberg [MagFors]

made the following comment.

2025-02-09 15:46:42

I wrote: "Couldn't it be added once in connectslit4 instead 4 times in the parts using it?"
But then I realized it doesn't work in 32556a.

Magnus Forsberg [MagFors]

submitted a new version of the part.

2025-02-09 15:53:51

Jens Brühl [jb70]

submitted a new version of the part.

2025-02-14 22:39:03

Header Edit: Changed Part Name

Jens Brühl [jb70]

submitted a new version of the part.

2025-02-14 22:44:08

Removed "recessed surface" from history

Magnus Forsberg [MagFors]

made the following comment.

2025-02-15 08:30:53

I find it odd to call this Type 2, when it has two previous versions.
But it is better than mine, describing something that wasn't there.
