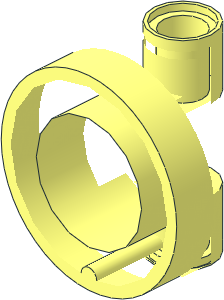

0 ~Technic Steering Wheel Bearing with 2 Pegholes and 2 Axleholes Arms Centre
0 Name: s\23801s03.dat
0 Author: Jens Brühl [jb70]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2022-09-15 [PTadmin] Official Update 2022-05
0 !HISTORY 2023-10-05 [jb70] subfiled from 23801.dat by Philippe Hurbain [Philo]
0 !HISTORY 2023-11-13 [jb70] Using Hi-Res Primitives on outer Ring
