Unofficial File parts/s/23801s02.dat
File Header:

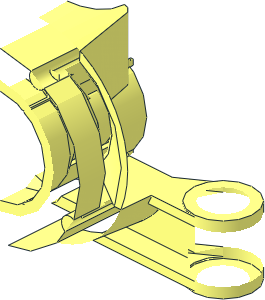

0 ~Technic Steering Wheel Bearing with 2 Pegholes & 2 Axleholes Arms Half
0 Name: s\23801s02.dat
0 Author: Jens Brühl [jb70]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2022-09-15 [PTadmin] Official Update 2022-05
0 !HISTORY 2023-10-05 [jb70] subfiled from 23801s01.dat by Philippe Hurbain [Philo]
0 !HISTORY 2023-11-13 [jb70] Using Hi-Res Primitives on outer Ring
Show contents
0 BFC INVERTNEXT
1 16 0 0 -30 9.89949 0 9.89949 -9.89949 0 9.89949 0 8 0 1-4cylo.dat
1 16 0 0 -30 1.9799 0 1.9799 -1.9799 0 1.9799 0 1 0 1-4ring5.dat
1 16 0 0 -30 6.42902 0 15.52104 15.52104 0 -6.42902 0 1 0 1-16chrd.dat
1 16 0 0 -30 0 0 16.79985 16.79985 0 0 0 1 0 1-16chrd.dat
1 16 0 0 -30 0 0 16.79985 -16.79985 0 0 0 1 0 1-16chrd.dat
1 16 0 0 -30 6.42902 0 15.52104 -15.52104 0 6.42902 0 1 0 1-16chrd.dat
1 16 0 0 -30 9.5671 0 23.09703 -23.09703 0 9.5671 0 1 0 1-16chrd.dat
1 16 0 0 -30 0 0 25 -25 0 0 0 1 0 1-16chrd.dat
1 16 0 0 -30 0 0 25 25 0 0 0 1 0 1-16chrd.dat
1 16 0 0 -30 9.5671 0 23.09703 23.09703 0 -9.5671 0 1 0 1-16chrd.dat
1 16 0 0 -30 17.6777 0 17.6777 17.6777 0 -17.6777 0 1 0 1-16chrd.dat
0 BFC INVERTNEXT
1 16 0 0 -16 7.07107 0 7.07107 -7.07107 0 7.07107 0 12 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 0 0 -19 1.41421 0 1.41421 -1.41421 0 1.41421 0 3 0 1-4con5.dat
0 BFC INVERTNEXT
1 16 0 0 -22 1.41421 0 1.41421 -1.41421 0 1.41421 0 3 0 1-4con6.dat
0 BFC INVERTNEXT
1 16 0 0 -4 .70711 0 .70711 -.70711 0 .70711 0 5 0 1-4con9.dat
1 16 0 0 2 2.12132 0 2.12132 -2.12132 0 2.12132 0 -1 0 1-4ring3.dat
1 16 0 0 2 1.41421 0 1.41421 -1.41421 0 1.41421 0 -1 0 1-4ring6.dat
1 16 0 0 -9 9.89949 0 9.89948 -9.89948 0 9.89949 0 11 0 1-4cyli.dat
1 16 0 0 -18 1.84776 0 .76537 .76537 0 -1.84776 0 -1 0 3-16ring13.dat
1 16 0 0 -18 12.0104 0 4.97488 4.97488 0 -12.0104 0 9.75 0 3-16con1.dat
0 BFC INVERTNEXT
1 16 0 0 -22 7.69899 0 3.18903 3.18903 0 -7.69899 0 7.11382 0 3-16con2.dat
1 16 0 0 -2.679 .92388 0 -.38268 .38268 0 .92388 0 -15.3211 0 48\1-8con28.dat
1 16 0 0 -9 0 0 28.5871 28.5871 0 0 0 1 0 48\1-16edge.dat
4 16 10.94 26.411 -9 10.715 25.868 -18 7.246 27.045 -18 7.398 27.612 -9
4 16 3.731 28.341 -9 7.398 27.612 -9 7.246 27.045 -18 3.654 27.759 -18
4 16 0 28.587 -9 3.731 28.341 -9 3.654 27.759 -18 0 28 -18
5 24 7.246 27.045 -18 7.398 27.612 -9 10.94 26.411 -9 3.731 28.341 -9
5 24 3.654 27.759 -18 3.731 28.341 -9 7.398 27.612 -9 0 28.587 -9
5 24 3.654 27.759 -18 0 28 -18 0 28.587 -9 0 28 -30
5 24 7.246 27.045 -18 3.655 27.761 -18 3.731 28.343 -9 3.655 27.761 -30
5 24 10.714 25.868 -18 7.247 27.046 -18 7.399 27.613 -9 7.247 27.046 -30
5 24 13.999 24.248 -18 10.715 25.869 -18 10.94 26.411 -9 10.715 25.869 -30
5 24 17.044 22.213 -18 14 24.249 -18 14.294 24.757 -9 14 24.249 -30
5 24 19.798 19.798 -18 17.045 22.214 -18 17.403 22.68 -9 17.045 22.214 -30
5 24 22.213 17.045 -18 19.799 19.799 -18 20.214 20.214 -9 19.799 19.799 -30
5 24 24.247 14 -18 22.214 17.045 -18 22.68 17.403 -9 22.214 17.045 -30
5 24 25.867 10.715 -18 24.249 14 -18 24.757 14.294 -9 24.249 14 -30
0 BFC INVERTNEXT
1 16 0 0 1 6.36396 0 6.36396 -6.36396 0 6.36396 0 1 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 0 0 -30 17.6777 0 17.6777 -17.6777 0 17.6777 0 8 0 3-16cylo.dat
5 24 7.071 7.071 -16 8.485 8.485 -19 9.239 3.827 -16 3.827 9.239 -16
5 24 8.485 8.485 -19 9.9 9.9 -22 11.086 4.592 -19 4.592 11.087 -19
2 24 6.756 12 -30 5.358 12.934 -30
2 24 9.9 9.9 -30 7.5 11.503 -30
2 24 6.756 12 -22 5.358 12.934 -22
2 24 9.9 9.9 -22 7.5 11.503 -22
5 24 9.9 9.9 -30 9.9 9.9 -22 5.358 12.934 -30 12.934 5.358 -30
5 24 6.364 6.364 1 7.071 7.071 -4 8.315 3.444 1 3.444 8.315 1
2 24 7.071 7.071 -16 6 7.787 -16
2 24 7.071 7.071 -4 6 7.787 -4
5 24 7.071 7.071 -16 7.071 7.071 -4 3.827 9.239 -16 9.239 3.827 -16
2 24 6.364 6.364 1 6 6.607 1
2 24 6.364 6.364 2 6 6.607 2
5 24 6.364 6.364 1 6.364 6.364 2 3.444 8.315 1 8.315 3.444 1
4 16 7.5 12 -30 6.429 15.521 -30 11.879 11.88 -30 9.9 9.9 -30
4 16 5.358 12.934 -30 6.429 15.521 -30 7.5 12 -30 6.756 12 -30
3 16 7.5 11.503 -30 7.5 12 -30 9.9 9.9 -30
3 16 8.485 8.485 -19 7.071 7.071 -16 7.5 8 -17.546
3 16 8.485 8.485 -19 7.5 8 -17.546 7.5 9.144 -19
4 16 6 8 -16.271 7.5 8 -17.546 7.071 7.071 -16 6 7.787 -16
4 16 8.485 8.485 -19 7.5 9.144 -19 7.5 11.503 -22 9.9 9.9 -22
3 16 5.358 12.934 -22 6.756 12 -22 4.971 12 -20.483
4 16 9.9 9.9 -30 9.9 9.9 -22 7.5 11.503 -22 7.5 11.503 -30
4 16 5.358 12.934 -30 6.756 12 -30 6.756 12 -22 5.358 12.934 -22
4 16 6.364 6.364 1 6 6.607 1 6 7.787 -4 7.071 7.071 -4
4 16 7.071 7.071 -4 6 7.787 -4 6 7.787 -16 7.071 7.071 -16
4 16 6 6.607 1 6.364 6.364 1 6.364 6.364 2 6 6.607 2
3 16 7.5 9.144 2 7.5 8 2 8.486 8.485 2
3 16 8.486 8.485 2 7.5 8 2 6.364 6.364 2
4 16 6.364 6.364 2 7.5 8 2 6 8 2 6 6.607 2
2 24 6.756 12 -30 7.5 12 -30
2 24 6 8 -16.271 6 7.787 -16
2 24 6 8 -16.271 7.5 8 -17.546
2 24 4.971 12 -20.483 6.756 12 -22
2 24 6.756 12 -30 6.756 12 -22
2 24 6 7.787 -4 6 6.607 1
2 24 6 7.787 -16 6 7.787 -4
2 24 6 6.607 1 6 6.607 2
2 24 6 6.607 2 6 8 2
2 24 6 8 2 7.5 8 2
4 16 6 7.787 -4 6 8 2 6 8 -16.271 6 7.787 -16
4 16 6 6.607 2 6 8 2 6 7.787 -4 6 6.607 1
2 24 6 8 2 6 8 -16.271
4 16 7.5 8 -17.546 6 8 -16.271 6 8 2 7.5 8 2
4 16 0 12 -19 0 14 -22 5.358 12.934 -22 4.971 12 -20.483
4 16 0 14 -22 0 14 -30 5.358 12.934 -30 5.358 12.934 -22
4 16 0 16.8 -30 6.429 15.521 -30 5.358 12.934 -30 0 14 -30
5 24 5.358 12.934 -30 5.358 12.934 -22 6.756 12 -30 0 14 -30
2 24 5.358 12.934 -30 0 14 -30
2 24 5.358 12.934 -22 0 14 -22
4 16 5.358 -12.934 -30 0 -14 -30 0 -14 -22 5.358 -12.934 -22
4 16 5.358 -12.934 -30 6.429 -15.521 -30 0 -16.8 -30 0 -14 -30
5 24 5.358 -12.934 -22 5.358 -12.934 -30 6.756 -12 -30 0 -14 -30
2 24 0 -14 -30 5.358 -12.934 -30
2 24 0 -14 -22 5.358 -12.934 -22
2 24 0 12 -19 4.971 12 -20.483
5 24 4.971 12 -20.483 5.358 12.934 -22 0 12 -19 8.485 8.485 -19
4 16 6.756 12 -30 7.5 12 -30 7.5 12 -8 6.756 12 -22
4 16 4.971 12 -20.483 6.756 12 -22 7.5 12 -8 0 12 -8
3 16 4.971 12 -20.483 0 12 -8 0 12 -19
2 24 7.5 8 2 7.5 8 -17.546
2 24 7.5 12 3.444 7.5 12 -30
2 24 7.5 11.503 -30 7.5 12 -30
2 24 7.5 9.144 -19 7.5 8 -17.546
2 24 7.5 11.503 -22 7.5 9.144 -19
2 24 7.5 11.503 -30 7.5 11.503 -22
2 24 7.5 9.144 2 7.5 10.5 2
2 24 7.5 8 2 7.5 9.144 2
2 24 7.5 10.5 3.444 7.5 10.5 2
4 16 7.5 8 -17.546 7.5 8 2 7.5 9.144 2 7.5 9.144 -19
4 16 7.5 9.144 -19 7.5 9.144 2 7.5 10.5 2 7.5 11.503 -22
3 16 7.5 11.503 -22 7.5 12 -30 7.5 11.503 -30
4 16 7.5 12 3.444 7.5 12 -30 7.5 11.503 -22 7.5 10.5 2
3 16 7.5 10.5 3.444 7.5 12 3.444 7.5 10.5 2
2 24 7.5 10.5 2 8.602 10.5 2
1 16 7.908 11.25 3.444 -.40746 0 0 0 0 -.75 0 -1 0 rect.dat
4 16 8.602 10.5 2 8.315 10.5 3.444 7.5 10.5 3.444 7.5 10.5 2
2 24 8.602 10.5 2 8.315 10.5 3.444
4 16 7.5 9.144 2 8.485 8.485 2 9.9 9.9 2 8.602 10.5 2
3 16 7.5 10.5 2 7.5 9.144 2 8.602 10.5 2
3 16 8.602 10.5 2 9.9 9.9 2 8.602 10.766 2
2 24 8.602 10.5 2 8.602 10.766 2
2 24 9.9 9.9 2 8.602 10.766 2
4 16 8.602 10.766 0 8.602 10.766 2 9.9 9.9 2 9.9 9.9 -9
2 24 9 10.501 0 8.602 10.766 2
5 24 7.071 -7.071 -16 8.485 -8.485 -19 9.239 -3.827 -16 3.827 -9.239 -16
5 24 8.485 -8.485 -19 9.9 -9.9 -22 11.086 -4.592 -19 4.592 -11.087 -19
2 24 6.756 -12 -30 5.358 -12.934 -30
2 24 9.9 -9.9 -30 7.5 -11.503 -30
2 24 6.756 -12 -22 5.358 -12.934 -22
2 24 9.9 -9.9 -22 7.5 -11.503 -22
5 24 9.9 -9.9 -30 9.9 -9.9 -22 5.358 -12.934 -30 12.934 -5.358 -30
5 24 6.364 -6.364 1 7.071 -7.071 -4 8.315 -3.444 1 3.444 -8.315 1
2 24 7.071 -7.071 -16 6 -7.787 -16
2 24 7.071 -7.071 -4 6 -7.787 -4
5 24 7.071 -7.071 -16 7.071 -7.071 -4 3.827 -9.239 -16 9.239 -3.827 -16
2 24 6.364 -6.364 1 6 -6.607 1
2 24 6.364 -6.364 2 6 -6.607 2
5 24 6.364 -6.364 1 6.364 -6.364 2 3.444 -8.315 1 8.315 -3.444 1
4 16 9.9 -9.9 -30 11.879 -11.88 -30 6.429 -15.521 -30 7.5 -12 -30
4 16 7.5 -12 -30 6.429 -15.521 -30 5.358 -12.934 -30 6.756 -12 -30
3 16 9.9 -9.9 -30 7.5 -12 -30 7.5 -11.503 -30
3 16 7.5 -8 -17.546 7.071 -7.071 -16 8.485 -8.485 -19
3 16 7.5 -9.144 -19 7.5 -8 -17.546 8.485 -8.485 -19
4 16 6 -7.787 -16 7.071 -7.071 -16 7.5 -8 -17.546 6 -8 -16.271
4 16 9.9 -9.9 -22 7.5 -11.503 -22 7.5 -9.144 -19 8.485 -8.485 -19
3 16 4.971 -12 -20.483 6.756 -12 -22 5.358 -12.934 -22
4 16 7.5 -11.503 -30 7.5 -11.503 -22 9.9 -9.9 -22 9.9 -9.9 -30
4 16 5.358 -12.934 -22 6.756 -12 -22 6.756 -12 -30 5.358 -12.934 -30
4 16 7.071 -7.071 -4 6 -7.787 -4 6 -6.607 1 6.364 -6.364 1
4 16 7.071 -7.071 -16 6 -7.787 -16 6 -7.787 -4 7.071 -7.071 -4
4 16 6 -6.607 2 6.364 -6.364 2 6.364 -6.364 1 6 -6.607 1
3 16 8.486 -8.485 2 7.5 -8 2 7.5 -9.144 2
3 16 6.364 -6.364 2 7.5 -8 2 8.486 -8.485 2
4 16 6 -6.607 2 6 -8 2 7.5 -8 2 6.364 -6.364 2
2 24 6.756 -12 -30 7.5 -12 -30
2 24 6 -8 -16.271 6 -7.787 -16
2 24 6 -8 -16.271 7.5 -8 -17.546
2 24 4.971 -12 -20.483 6.756 -12 -22
2 24 6.756 -12 -30 6.756 -12 -22
2 24 6 -7.787 -4 6 -6.607 1
2 24 6 -7.787 -16 6 -7.787 -4
2 24 6 -6.607 1 6 -6.607 2
2 24 6 -6.607 2 6 -8 2
2 24 6 -8 2 7.5 -8 2
4 16 6 -7.787 -16 6 -8 -16.271 6 -8 2 6 -7.787 -4
4 16 6 -6.607 1 6 -7.787 -4 6 -8 2 6 -6.607 2
2 24 6 -8 2 6 -8 -16.271
4 16 7.5 -8 2 6 -8 2 6 -8 -16.271 7.5 -8 -17.546
4 16 4.971 -12 -20.483 5.358 -12.934 -22 0 -14 -22 0 -12 -19
2 24 0 -12 -19 4.971 -12 -20.483
5 24 4.971 -12 -20.483 5.358 -12.934 -22 0 -12 -19 8.485 -8.485 -19
4 16 6.756 -12 -22 7.5 -12 -8 7.5 -12 -30 6.756 -12 -30
4 16 0 -12 -8 7.5 -12 -8 6.756 -12 -22 4.971 -12 -20.483
3 16 0 -12 -19 0 -12 -8 4.971 -12 -20.483
2 24 7.5 -8 2 7.5 -8 -17.546
2 24 7.5 -12 3.444 7.5 -12 -30
2 24 7.5 -11.503 -30 7.5 -12 -30
2 24 7.5 -9.144 -19 7.5 -8 -17.546
2 24 7.5 -11.503 -22 7.5 -9.144 -19
2 24 7.5 -11.503 -30 7.5 -11.503 -22
2 24 7.5 -9.144 2 7.5 -10.5 2
2 24 7.5 -8 2 7.5 -9.144 2
2 24 7.5 -10.5 3.444 7.5 -10.5 2
4 16 7.5 -9.144 -19 7.5 -9.144 2 7.5 -8 2 7.5 -8 -17.546
4 16 7.5 -11.503 -22 7.5 -10.5 2 7.5 -9.144 2 7.5 -9.144 -19
3 16 7.5 -11.503 -30 7.5 -12 -30 7.5 -11.503 -22
4 16 7.5 -10.5 2 7.5 -11.503 -22 7.5 -12 -30 7.5 -12 3.444
3 16 7.5 -10.5 2 7.5 -12 3.444 7.5 -10.5 3.444
2 24 7.5 -10.5 2 8.602 -10.5 2
1 16 7.908 -11.25 3.444 -.40746 0 0 0 0 -.75 0 -1 0 rect.dat
4 16 7.5 -10.5 2 7.5 -10.5 3.444 8.315 -10.5 3.444 8.602 -10.5 2
2 24 8.602 -10.5 2 8.315 -10.5 3.444
4 16 8.602 -10.5 2 9.9 -9.9 2 8.485 -8.485 2 7.5 -9.144 2
3 16 8.602 -10.5 2 7.5 -9.144 2 7.5 -10.5 2
3 16 8.602 -10.766 2 9.9 -9.9 2 8.602 -10.5 2
2 24 8.602 -10.5 2 8.602 -10.766 2
2 24 9.9 -9.9 2 8.602 -10.766 2
2 24 9 -10.501 0 8.602 -10.766 2
4 16 9.9 -9.9 -9 9.9 -9.9 2 8.602 -10.766 2 8.602 -10.766 0
2 24 9 -27.69 0 10.002 -27.349 0
2 24 10.002 -27.349 0 11 -26.941 -1
2 24 13.022 -24.73 -18 11 -26.941 -1
2 24 9.9 -9.9 0 10 -9.749 0
2 24 9 -10.501 0 9.9 -9.9 0
2 24 10 -9.749 0 11 -8.253 -1
2 24 11.941 -6.844 -9 11 -8.253 -1
4 16 9 -10.501 0 9 -27.69 0 10.002 -27.349 0 9.9 -9.9 0
3 16 9.9 -9.9 0 10.002 -27.349 0 10 -9.749 0
4 16 10 -9.749 0 10.002 -27.349 0 11 -26.941 -1 11 -8.253 -1
4 16 11.941 -6.844 -9 11 -8.253 -1 11 -26.941 -1 13.022 -24.73 -18
2 24 0 -28.588 -9 3.444 -28.406 -8.315
2 24 3.444 -28.406 -8.315 6.364 -27.995 -6.364
2 24 6.364 -27.995 -6.364 8.315 -27.686 -3.444
2 24 8.315 -27.686 -3.444 9 -27.69 0
4 16 0 -28.588 -9 0 -28.001 -18 3.654 -27.759 -18 3.444 -28.406 -8.315
4 16 3.444 -28.406 -8.315 3.654 -27.759 -18 7.246 -27.045 -18 6.364 -27.995 -6.364
3 16 10.716 -25.869 -18 13.022 -24.73 -18 11 -26.941 -1
3 16 6.364 -27.995 -6.364 7.246 -27.045 -18 8.315 -27.686 -3.444
4 16 9 -27.69 0 8.315 -27.686 -3.444 7.246 -27.045 -18 10.715 -25.869 -18
4 16 11 -26.941 -1 10.002 -27.349 0 9 -27.69 0 10.715 -25.869 -18
4 16 0 -25 -30 0 -25 -9 3.444 -24.315 -8.315 9.568 -23.098 -30
3 16 9.568 -23.098 -30 3.444 -24.315 -8.315 6.407 -23.726 -6.3
4 16 9.568 -23.098 -30 6.407 -23.726 -6.3 8.315 -23.346 -3.444 9.567 -23.097 -3.444
2 24 8.315 -23.346 -3.444 9.567 -23.097 -3.444
2 24 9.567 -23.097 -30 0 -25 -30
2 24 12.865 -22.013 -18 13.022 -24.73 -18
4 16 18.385 -18.385 -18 12.865 -22.013 -18 17.045 -22.213 -18 19.8 -19.799 -18
4 16 13.022 -24.73 -18 13.999 -24.248 -18 17.045 -22.213 -18 12.865 -22.013 -18
3 16 13.022 -24.73 -18 12.865 -22.013 -18 11.941 -6.844 -9
2 24 18.385 -18.385 -18 12.865 -22.013 -18
2 24 19.8 -19.799 -18 17.045 -22.213 -18
2 24 17.045 -22.213 -18 13.999 -24.248 -18
2 24 13.999 -24.248 -18 13.022 -24.73 -18
2 24 9 -10.501 0 9 -27.69 0
3 16 12.865 -22.013 -18 18.385 -18.385 -18 9.193 -9.193 -8.25
2 24 12.232 -12.232 -11.474 11.941 -6.848 -9.002
2 24 12.38 -14.102 -12.733 12.232 -12.232 -11.474
2 24 11.941 -6.848 -9.002 11.941 -6.846 -9.001
2 24 12.865 -22.013 -18 12.38 -14.102 -12.733
5 24 10.002 -27.349 0 10 -9.749 0 9.9 -9.9 0 11 -26.941 -1
5 24 11 -26.941 -1 11 -8.253 -1 10 -9.749 0 11.941 -6.844 -9
5 24 13.022 -24.73 -18 11.941 -6.844 -9 11 -26.941 -1 12.865 -22.013 -18
2 24 23.653 10.715 -18 24.021 9.95 -18
3 16 23.653 10.715 -18 24.021 9.95 -18 25.912 10.715 -18
4 16 10.5 10.5 -9.637 9.193 9.193 -8.25 12.01 4.975 -8.25 24.021 9.95 -18
5 24 12.01 4.975 -8.25 24.021 9.95 -18 9.193 9.193 -8.25 13 0 -8.25
3 16 24.021 9.95 -18 23.653 10.715 -18 10.5 10.5 -9.637
2 24 10.5 10.5 -9.637 8.914 10.715 -8.75
2 24 9.9 9.9 0 8.602 10.766 0
2 24 9.193 9.193 -8.25 10.5 10.5 -9.637
2 24 9.9 9.9 0 10.5 10.5 0
2 24 9.9 9.9 -9 9.9 9.9 0
2 24 23.653 10.715 -18 10.5 10.5 -9.637
4 16 10.5 10.5 -9.637 10.5 10.5 0 9.9 9.9 0 9.193 9.193 -8.25
1 16 11.646 -21.708 -30 2.07867 0 -1.38892 1.38892 0 2.07867 0 -1 0 2-4edge.dat
1 16 11.646 -21.708 -3.444 -1.38892 0 -2.07867 2.07867 0 -1.38892 0 -1 0 1-4edge.dat
1 16 11.646 -21.708 -30 2.07867 0 -1.38892 1.38892 0 2.07867 0 1 0 2-4disc.dat
1 16 11.646 -21.708 -30 2.07867 0 -1.38892 1.38892 0 2.07867 0 10 0 2-4cyli.dat
1 16 11.646 -21.708 -20 -1.38892 0 -2.07867 2.07867 0 -1.38892 0 16.5559 0 1-4cyli.dat
2 24 8.315 24 -3.444 8.315 14 -3.444
4 16 8.315 24 -3.444 18 18 -3.444 21 13 -3.444 8.315 13 -3.444
2 24 0 16.8 -9 3.444 16.115 -8.315
2 24 3.444 16.115 -8.315 6.364 15.534 -6.364
2 24 6.364 15.534 -6.364 6.407 15.526 -6.3
2 24 6.429 15.522 -6.267 8.315 14.262 -3.444
2 24 8.315 14.261 -3.444 10.203 13 -3.444
1 16 21.708 11.646 -30 -1.38892 0 -2.07867 2.07867 0 -1.38892 0 -1 0 2-4edge.dat
1 16 21.708 11.646 -30 -1.38892 0 -2.07867 2.07867 0 -1.38892 0 10 0 2-4cyli.dat
1 16 21.708 11.646 -30 -1.38892 0 -2.07867 2.07867 0 -1.38892 0 1 0 2-4disc.dat
1 16 21.708 11.646 -20 -1.38892 0 -2.07867 2.07867 0 -1.38892 0 16.5559 0 1-8cyli.dat
1 16 21.708 11.646 -3.444 -1.38892 0 -2.07867 2.07867 0 -1.38892 0 -1 0 1-8edge.dat
2 24 20.319 13.725 -30 17.678 17.678 -30
2 24 17.678 17.678 -30 9.568 23.098 -30
2 24 9.568 23.098 -30 2.5 24.503 -30
4 16 20.319 13.725 -3.444 17.678 17.678 -3.444 17.678 17.678 -30 20.319 13.725 -30
4 16 17.678 17.678 -30 17.678 17.678 -3.444 9.568 23.098 -3.444 9.568 23.098 -30
5 24 17.678 17.678 -30 17.678 17.678 -3.444 9.568 23.098 -30 23.098 9.568 -30
4 16 2.5 24.503 -30 9.568 23.098 -30 9.568 23.098 -3.444 2.5 24.503 -8
5 24 9.568 23.098 -30 9.568 23.098 -3.444 0 25 -30 17.678 17.678 -30
2 24 2.5 24.503 -30 2.5 24.503 -8
2 24 19.815 13 -3.444 10.015 13 -3.444
1 16 14.909 13 -13.722 0 0 4.70625 0 -1 0 10.2779 0 0 rect2p.dat
2 24 13.135 10 -15 19.886 10 -19.886
4 16 13.135 10 -24 19.886 10 -24 19.886 10 -19.886 13.135 10 -15
2 24 19.886 10 -19.886 19.886 10 -24
2 24 13.135 10 -15 13.135 10 -24
2 24 19.815 13 -24 10.015 13 -24
2 24 19.886 10 -24 13.135 10 -24
4 16 22.808 10 -22 23.098 9.568 -22 15.398 6.378 -14.886 12.978 10 -14.886
5 24 15.398 6.378 -14.886 23.098 9.568 -22 11.785 11.785 -14.886 16.667 0 -14.886
5 24 11.785 -11.785 -14.886 17.678 -17.678 -22 15.398 -6.378 -14.886 6.378 -15.398 -14.886
4 16 19.815 13 -24 19.886 10 -24 13.135 10 -24 10.015 13 -24
2 24 20.319 9.567 -19.989 19.629 10.257 -19.824
2 24 20.319 9.567 -19.989 21.22 9.194 -20.461
2 24 21.22 9.194 -20.461 22.196 9.194 -21.167
2 24 22.196 9.194 -21.167 23.097 9.567 -22
2 24 13.135 10 -24 11.879 11.879 -24
2 24 19.256 11.158 -24 19.256 12.134 -24
2 24 19.629 10.257 -24 19.256 11.158 -24
2 24 19.886 10 -24 19.629 10.257 -24
2 24 19.256 12.134 -24 19.615 13 -24
2 24 10.202 13 -24 11.879 11.879 -24
2 24 9.6 -13.403 -3.444 9.567 -23.097 -3.444
2 24 8.315 -23.346 -3.444 8.315 -14.261 -3.444
4 16 8.315 -14.261 -3.444 9.6 -13.403 -3.444 9.567 -23.097 -3.444 8.315 -23.346 -3.444
2 24 20.319 13.725 -3.444 20.319 13.725 -30
2 24 23.097 9.567 -30 23.097 9.567 -22
2 24 13.725 -20.319 -22 13.725 -20.319 -30
2 24 9.567 -23.097 -30 9.567 -23.097 -3.444
2 24 12.5 -11 -24 12.5 -21 -24
2 24 9.6 -13.403 -24 9.6 -21 -24
2 24 13.725 -20.319 -30 17.678 -17.678 -30
2 24 13.725 -20.319 -22 17.678 -17.678 -22
4 16 13.725 -20.319 -22 17.678 -17.678 -22 17.678 -17.678 -30 13.725 -20.319 -30
5 24 17.678 -17.678 -22 17.678 -17.678 -30 9.567 -23.097 -22 23.097 -9.567 -22
4 16 12.5 -19.6 -24 12.5 -10.6 -24 12.5 -10.6 -14 12.5 -19.6 -20
4 16 12.5 -21 -24 9.6 -21 -24 9.6 -13.403 -24 12.5 -11 -24
4 16 9.6 -20.6 -3.444 9.6 -13.403 -3.444 9.6 -13.403 -24 9.6 -20.6 -24
4 16 11.5 -11.976 -14.886 11.785 -11.785 -14.886 17.678 -17.678 -22 11.5 -21.806 -22
2 24 12.5 -12.5 -15.749 12.5 -10.716 -14.886
2 24 12.5 -19.6 -20.887 12.5 -12.5 -15.749
2 24 13.725 -20.319 -22 13.035 -19.629 -21.167
2 24 12.134 -19.256 -24 12.5 -19.408 -24
2 24 12.134 -19.256 -20.461 13.035 -19.629 -21.167
2 24 12.5 -19.408 -24 12.5 -19.408 -20
2 24 11.158 -19.256 -24 12.134 -19.256 -24
2 24 11.5 -19.256 -20.155 12.134 -19.256 -20.461
2 24 10.257 -19.629 -24 11.158 -19.256 -24
2 24 9.6 -20.286 -24 10.257 -19.629 -24
2 24 9.6 -20.286 -24 9.6 -20.286 -3.444
2 24 9.6 -13.403 -24 11.879 -11.879 -24
2 24 9.6 -13.403 -24 9.6 -13.403 -3.444
2 24 12.5 -10.951 -24 12.5 -10.951 -14.234
2 24 11.879 -11.879 -24 12.439 -11.042 -24
4 16 9.6 -13.403 -3.444 6.429 -15.521 -6.3 6.429 -15.522 -15 9.567 -13.425 -15
2 24 0 -16.8 -9 3.444 -16.115 -8.315
2 24 3.444 -16.115 -8.315 6.429 -15.521 -6.3
2 24 6.429 -15.521 -6.3 8.315 -14.261 -3.444
2 24 8.315 -14.261 -3.444 9.6 -13.403 -3.444
2 24 6.407 -23.726 -6.3 8.315 -23.346 -3.444
2 24 0 -25 -9 3.444 -24.315 -8.315
2 24 3.444 -24.315 -8.315 6.407 -23.726 -6.3
2 24 20.319 13.725 -3.444 17.678 17.678 -3.444
2 24 9.568 23.098 -3.444 17.678 17.678 -3.444
2 24 3.444 24.315 -8.315 6.364 23.735 -6.364
2 24 6.364 23.735 -6.364 8.315 23.347 -3.444
2 24 8.315 23.347 -3.444 9.568 23.098 -3.444
2 24 2.5 24.503 -8.503 3.444 24.315 -8.315
5 24 9.9 9.9 2 9.9 9.9 -9 8.602 10.766 0 12.935 5.358 2
5 24 9.9 -9.9 -9 9.9 -9.9 2 8.602 -10.766 2 12.935 -5.358 -9
1 16 40 10 0 -3 0 0 0 1 0 0 0 3 4-4ring2.dat
1 16 40 30 0 -3 0 0 0 -1 0 0 0 -3 4-4ring2.dat
1 16 40 30 0 -9 0 0 0 -.5 0 0 0 -9 4-4cyli.dat
1 16 40 30 0 -9 0 0 0 -1 0 0 0 -9 4-4edge.dat
1 16 40 29.5 0 0 0 -9 0 -1 0 -9 0 0 3-8edge.dat
1 16 40 29.5 0 -9 0 0 0 -1 0 0 0 -9 1-4ndis.dat
1 16 40 29.5 0 0 0 9 0 -2.5 0 -9 0 0 5-8cyli.dat
2 24 0 29.5 -9 40 29.5 -9
2 24 9 29.5 0 24 29.5 0
1 16 28.818 28.25 3.182 0 0 -4.81805 1.25 0 0 0 -1 -3.18195 rect3.dat
3 16 31 29.5 0 24 29.5 0 33.636 29.5 6.364
1 16 40 10 0 -9 0 0 0 .5 0 0 0 -9 4-4cyli.dat
1 16 40 10 0 -9 0 0 0 1 0 0 0 -9 4-4edge.dat
1 16 40 10.5 0 0 0 -9 0 1 0 -9 0 0 3-8edge.dat
1 16 40 10.5 0 -9 0 0 0 1 0 0 0 -9 1-4ndis.dat
1 16 40 10.5 0 0 0 9 0 2.5 0 -9 0 0 5-8cyli.dat
1 16 28.818 11.75 3.182 0 0 -4.81805 1.25 0 0 0 -1 -3.18195 rect3.dat
3 16 24 10.5 0 31 10.5 0 33.636 10.5 6.364
3 16 24 29.5 0 31 29.5 0 31 29.5 -9
4 16 9 29.5 0 24 29.5 0 31 29.5 -9 9 29.5 -9
3 16 24 27 0 31 27 0 33.636 27 6.364
3 16 31 13 0 24 13 0 33.636 13 6.364
1 16 27.5 20 0 3.5 0 0 0 0 7 0 -1 0 rect2p.dat
2 24 10.94 27 -9 40 27 -9
4 16 0 29.5 -9 40 29.5 -9 40 27 -9 10.94 27 -9
2 24 23.653 10.715 -18 24.001 9.979 -18
2 24 25.912 10.715 -18 23.653 10.715 -18
2 24 10.5 10.5 -9.637 10.5 10.5 0
4 16 26.37 10.5 -8.985 31 10.5 -9 31 10.5 0 24 10.5 0
4 16 26.37 10.5 -8.985 24 10.5 0 10.5 10.5 0 10.5 10.5 -9.637
4 16 25.912 10.715 -18 26.37 10.5 -8.985 10.5 10.5 -9.637 23.653 10.715 -18
2 24 24 10.5 0 10.5 10.5 0
5 24 11.098 14 -2.679 11.098 26 -2.679 12.05 14 -4.95 10 14 0
1 16 21.315 20 -2.679 -10.21745 0 0 0 0 7 0 1 0 rect2a.dat
4 16 40 27 -9 31.533 27 -2.679 11.098 27 -2.679 10.94 27 -9
2 24 10.94 26.411 -9 10.94 27 -9
2 24 10.94 27 -9 11.098 27 -2.679
4 16 9 10.5 0 9.9 9.9 0 10.5 10.5 0 9 29.5 0
4 16 10.5 10.5 0 24 13 0 24 27 0 9 29.5 0
3 16 24 10.5 0 24 13 0 10.5 10.5 0
3 16 24 27 0 24 29.5 0 9 29.5 0
2 24 9 10.5 0 9 29.5 0
4 16 7.398 27.612 -9 3.731 28.341 -9 0 29.5 -9 10.94 27 -9
3 16 7.398 27.612 -9 10.94 27 -9 10.94 26.411 -9
3 16 0 29.5 -9 3.731 28.341 -9 0 28.587 -9
4 16 11.098 27 -2.679 11.098 26.792 -2.679 10.94 26.411 -9 10.94 27 -9
2 24 11.098 26.792 -2.679 10.94 26.411 -9
2 24 26.37 10.5 -8.985 25.912 10.715 -18
2 24 26.37 10.5 -8.985 40 10.5 -9
2 24 25.854 13 -2.679 25.395 13 -9
2 24 31.533 13 -2.679 25.854 13 -2.679
2 24 25.395 13 -9 40 13 -9
4 16 25.395 13 -9 25.854 13 -2.679 31.533 13 -2.679 40 13 -9
4 16 25.395 13 -9 40 13 -9 40 10.5 -9 26.37 10.5 -8.985
2 24 26.412 10.94 -8.988 25.395 13 -9
2 24 26.412 10.94 -8.988 26.37 10.5 -8.985
3 16 25.869 10.715 -18 26.793 11.098 -2.679 26.37 10.5 -8.985
5 24 10.715 25.868 -18 10.94 26.411 -9 0 28 -18 19.799 19.799 -18
1 16 0 0 2 9.89949 0 9.89949 -9.89949 0 9.89949 0 -1 0 1-4edge.dat
1 16 0 0 -9 9.89949 0 9.89949 -9.89949 0 9.89949 0 -1 0 1-4edge.dat
1 16 0 0 -2.679 26.7925 0 -11.0977 11.0977 0 26.7925 0 -1 0 48\1-8edge.dat
1 16 0 0 -15 11.8794 0 11.8794 -11.8794 0 11.8794 0 1 0 1-4edge.dat
1 16 0 0 -18 24.0209 0 9.94977 9.94977 0 -24.0209 0 1 0 3-16edge.dat
1 16 0 0 -18 25.8686 0 10.7151 10.7151 0 -25.8686 0 1 0 48\3-16edge.dat
1 16 0 0 -18 25.8686 0 10.7151 10.7151 0 -25.8686 0 -1 0 48\3-16aring.dat
1 16 0 12 0 9 0 0 0 -1.5 0 0 0 9 1-16cyli.dat
1 16 0 -12 0 9 0 0 0 1.5 0 0 0 9 1-16cyli.dat
1 16 0 0 -6.3 11.8794 0 -11.8794 11.8794 0 11.8794 0 2.8559 0 1-16cyli.dat
1 16 0 24.512 -9 2.5 0 0 0 0 -2.5 .48773 -1 0 1-4edge.dat
3 16 9.568 23.098 -3.444 8.315 23.347 -3.444 2.5 24.503 -8
3 16 9.6 -13.403 -3.444 8.315 -14.261 -3.444 6.429 -15.521 -6.3
5 24 6.429 -15.521 -15 6.429 -15.521 -6.3 9.567 -13.425 -15 0 -16.8 -15
5 24 10.715 -25.869 -18 7.246 -27.045 -18 7.246 -27.045 -30 8.315 -27.155 -3.444
5 24 13.022 -24.73 -18 10.715 -25.869 -18 10.716 -25.869 -30 11 -26.941 -1
5 24 3.444 -28.406 -8.315 7.246 -27.045 -18 3.654 -27.759 -18 6.364 -27.995 -6.364
5 24 10.715 -25.869 -18 11 -26.941 -1 10.002 -27.349 0 13.022 -24.73 -18
5 24 6.364 -27.995 -6.364 7.246 -27.045 -18 3.444 -28.406 -8.315 8.315 -27.686 -3.444
5 24 3.444 -28.406 -8.315 3.654 -27.759 -18 0 -28.588 -9 7.246 -27.045 -18
5 24 7.246 -27.045 -18 8.315 -27.686 -3.444 10.715 -25.869 -18 6.364 -27.995 -6.364
5 24 9 -27.69 0 10.715 -25.869 -18 7.246 -27.045 -18 13.022 -24.73 -18
5 24 0 -28.001 -18 3.654 -27.759 -18 0 -28.588 -9 0 -28 -30
5 24 3.654 -27.759 -18 7.246 -27.045 -18 3.444 -28.406 -8.315 3.654 -27.759 -30
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
None
Official parents and subparts
Part Events:
Subfile structure modified to be reused with 65766.dat
Used Hi Res Primitives for outer ring
Fixed issues with gaps between faces and primitives on the inside.
Creative Commons Attribution License information
This part is copyright © Jens Brühl
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
3D View
Website copyright ©2003-2025 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor,
endorse, or authorize this site. Visit the official Lego website at
http://www.lego.com
