Unofficial File parts/s/u9224bs01.dat
File Header:

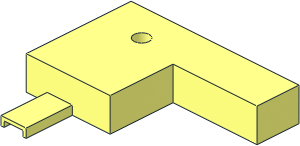

0 ~Train Track 12V Tapered Point Housing
0 Name: s\u9224bs01.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2012-03-30 [PTadmin] Official Update 2012-01
0 !HISTORY 2023-10-01 [Blechtaler] with cable slot and adapted to the reworked u9226
0 !HISTORY 2025-04-26 [Blechtaler] took authorship
Show contents
1 16 -96 17 -20 0 1 0 0 0 -13 46 0 0 recte3.dat
1 16 -100 15 -20 0 1 0 0 0 -15 50 0 0 recte3.dat
1 16 -20 15 10 0 80 0 15 0 0 0 0 20 box2-7.dat
0 BFC INVERTNEXT
1 16 20 15 -40 0 -40 0 15 0 0 0 0 30 box2-5.dat
0 BFC INVERTNEXT
1 16 -20 17 10 0 76 0 13 0 0 0 0 16 box2-7.dat
1 16 16 17 -36 0 -40 0 13 0 0 0 0 30 box2-5.dat
0 BFC INVERTNEXT
1 16 -68 30 -90 0 0 9 0 -5 0 24 0 0 box3u2p.dat
1 16 -68 30 -92 0 0 12 0 -8 0 22 0 0 box3u2p.dat
0 BFC INVERTNEXT
1 16 -98 30 3 2 0 0 0 -10 0 0 0 1.5 box3u2p.dat
1 16 -60 0 0 1 0 0 0 1 0 0 0 1 s\u9224bs02.dat
1 16 -60 0 0 -1 0 0 0 1 0 0 0 -1 s\u9224bs02.dat
2 24 -100 0 -70 -20 0 -70
2 24 -20 30 -70 -56 30 -70
2 24 -80 30 -70 -100 30 -70
2 24 -24 30 -66 -59 30 -66
2 24 -77 30 -66 -96 30 -66
2 24 -100 30 30 -100 30 4.5
2 24 -96 30 26 -96 30 4.5
2 24 -96 30 -66 -96 30 1.5
2 24 -100 30 1.5 -100 30 -70
2 24 -24 4 -66 -96 4 -66
2 24 -80 30 -114 -77 30 -114
2 24 -56 30 -114 -59 30 -114
4 16 -67 0 -7 -67 0 0 -100 0 30 -100 0 -70
3 16 -67 0 0 -67 0 7 -100 0 30
3 16 -100 0 30 -67 0 7 -60 0 7
4 16 -60 0 7 -53 0 7 60 0 30 -100 0 30
4 16 -53 0 0 60 0 -10 60 0 30 -53 0 7
4 16 -53 0 -7 -20 0 -10 60 0 -10 -53 0 0
4 16 -20 0 -70 -20 0 -10 -53 0 -7 -60 0 -7
4 16 -20 0 -70 -60 0 -7 -67 0 -7 -100 0 -70
4 16 -96 4 -66 -96 4 26 -74 4 0 -74 4 -14
3 16 -74 4 0 -96 4 26 -74 4 14
3 16 -74 4 14 -96 4 26 -60 4 14
4 16 -96 4 26 56 4 26 -46 4 14 -60 4 14
4 16 -46 4 14 56 4 26 56 4 -6 -24 4 -6
3 16 -46 4 14 -24 4 -6 -46 4 0
4 16 -46 4 -14 -46 4 0 -24 4 -6 -24 4 -66
3 16 -60 4 -14 -46 4 -14 -24 4 -66
4 16 -96 4 -66 -74 4 -14 -60 4 -14 -24 4 -66
4 16 60 30 30 56 30 26 -96 30 26 -100 30 30
4 16 60 30 -10 56 30 -6 56 30 26 60 30 30
4 16 -20 30 -10 -24 30 -6 56 30 -6 60 30 -10
4 16 -24 30 -6 -20 30 -10 -20 30 -70 -24 30 -66
4 16 -56 30 -70 -59 30 -66 -24 30 -66 -20 30 -70
4 16 -59 30 -66 -56 30 -70 -56 30 -114 -59 30 -114
4 16 -59 25 -114 -59 30 -114 -56 30 -114 -56 22 -114
4 16 -56 22 -114 -80 22 -114 -77 25 -114 -59 25 -114
4 16 -80 22 -114 -80 30 -114 -77 30 -114 -77 25 -114
4 16 -80 30 -70 -77 30 -66 -77 30 -114 -80 30 -114
4 16 -100 30 -70 -96 30 -66 -77 30 -66 -80 30 -70
4 16 -100 0 -70 -100 30 -70 -80 30 -70 -80 22 -70
4 16 -100 0 -70 -80 22 -70 -56 22 -70 -20 0 -70
4 16 -56 22 -70 -56 30 -70 -20 30 -70 -20 0 -70
4 16 -77 25 -66 -77 30 -66 -96 30 -66 -96 4 -66
4 16 -24 4 -66 -59 25 -66 -77 25 -66 -96 4 -66
4 16 -24 4 -66 -24 30 -66 -59 30 -66 -59 25 -66
4 16 -100 30 30 -100 30 4.5 -100 20 4.5 -100 0 30
4 16 -100 0 30 -100 20 4.5 -100 20 1.5 -100 0 -70
4 16 -100 0 -70 -100 20 1.5 -100 30 1.5 -100 30 -70
4 16 -96 30 26 -96 4 26 -96 20 4.5 -96 30 4.5
4 16 -96 20 1.5 -96 20 4.5 -96 4 26 -96 4 -66
4 16 -96 30 1.5 -96 20 1.5 -96 4 -66 -96 30 -66
4 16 -96 30 1.5 -96 30 -66 -100 30 -70 -100 30 1.5
4 16 -96 30 4.5 -100 30 4.5 -100 30 30 -96 30 26
Status:
Needs 1 More Vote (CN)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
-
Has Uncertified Subfiles
Current Votes:
| User | Vote |
|---|---|
| Holly-Wood | Certify |
Official parents and subparts
Part Events:
Rene Rechthaler [Blechtaler]
initially submitted the part.
2023-10-05 23:00:17
Steffen [Steffen]
made the following comment.
2024-02-24 12:14:29
Rene Rechthaler [Blechtaler]
submitted a new version of the part (all votes reset).
2024-03-02 15:14:47
Takeshi Takahashi [RainbowDolphin]
posted a vote of Certify
2024-05-31 15:24:09
Rene Rechthaler [Blechtaler]
submitted a new version of the part (all votes reset).
2024-11-15 14:35:15
with stoppers for the small tabs on the axle
also fixed some t-junk
also fixed some t-junk
Rene Rechthaler [Blechtaler]
made the following comment.
2024-12-14 15:42:00
do we have to rename it to u9224bs01 and obsolete the original because the height is different?
Orion Pobursky [OrionP]
renamed the part.
2025-04-24 16:35:48
Rene Rechthaler [Blechtaler]
submitted a new version of the part (all votes reset).
2025-04-26 12:27:22
took authorship (this part is changed a lot compared to the original one)
Javier Orquera [kuramapika1]
made the following comment.
2025-05-17 23:31:03
The section that goles to the rail isn't fully rect; it have an slightly curve to match the curvature of the rail.
Rene Rechthaler [Blechtaler]
made the following comment.
2025-05-17 23:44:21
yes I know (I have the part), should it get included?
as of now, that part is mostly from the original one...
as of now, that part is mostly from the original one...
Willy Tschager [Holly-Wood]
posted a vote of Certify
2025-09-30 08:21:10
Creative Commons Attribution License information
This part is copyright ©
Rene Rechthaler
Licensed under
CC BY 4.0
"added cable slot"
