Unofficial File parts/s/821s01.dat
File Header:

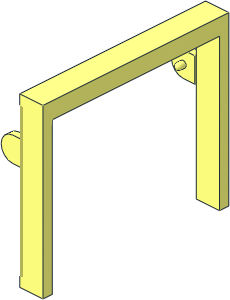

0 ~Garage Door Frame 1 x 6 x 4 without Studs - without Tabs
0 Name: s\821s01.dat
0 Author: N. W. Perry [Plastikean]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 -2.5 0 0 0 0 -7.5 0 1 0 60 0 0 rect.dat
1 16 -4 1 0 0 0 -6 0 1 0 54 0 0 box2-11.dat
2 24 2 2 54 -10 2 54
2 24 2 2 -54 -10 2 -54
1 16 3.5 6 0 0 0 -1.5 0 4 0 54 0 0 box2-5.dat
4 16 5 0 60 5 0 -60 5 10 -54 5 10 54
4 16 2 2 54 -10 2 54 -10 102 54 2 10 54
4 16 5 10 54 2 10 54 -10 102 54 5 102 54
4 16 -10 102 -54 -10 2 -54 2 2 -54 2 10 -54
4 16 -10 102 -54 2 10 -54 5 10 -54 5 102 -54
4 16 -10 6 60 -10 2 54 -10 0 54 -10 0 60
4 16 -10 102 54 -10 2 54 -10 6 60 -10 96 60
3 16 -10 102 54 -10 96 60 -10 102 60
2 24 -10 2 54 -10 102 54
2 24 -10 0 60 -10 6 60
2 24 -10 96 60 -10 102 60
4 16 -10 0 60 5 0 60 -8 6 60 -10 6 60
4 16 -8 96 60 -8 6 60 5 0 60 5 102 60
4 16 -10 102 60 -10 96 60 -8 96 60 5 102 60
4 16 5 0 60 5 10 54 5 102 54 5 102 60
2 24 5 102 60 5 0 60
2 24 5 102 54 5 10 54
4 16 -10 0 -54 -10 2 -54 -10 6 -60 -10 0 -60
4 16 -10 6 -60 -10 2 -54 -10 102 -54 -10 96 -60
3 16 -10 96 -60 -10 102 -54 -10 102 -60
2 24 -10 2 -54 -10 102 -54
2 24 -10 0 -60 -10 6 -60
2 24 -10 96 -60 -10 102 -60
4 16 -8 6 -60 5 0 -60 -10 0 -60 -10 6 -60
4 16 5 0 -60 -8 6 -60 -8 96 -60 5 102 -60
4 16 -8 96 -60 -10 96 -60 -10 102 -60 5 102 -60
4 16 5 10 -54 5 0 -60 5 102 -60 5 102 -54
2 24 5 102 -60 5 0 -60
2 24 5 102 -54 5 10 -54
1 16 -2.5 102 57 7.5 0 0 0 -1 0 0 0 3 rect.dat
1 16 -2.5 102 -57 7.5 0 0 0 -1 0 0 0 3 rect.dat
1 16 -17.5 33.5 57 0 0 -7.5 7.5 0 0 0 -4 0 2-4cylo.dat
1 16 -17.5 33.5 57 0 0 -7.5 7.5 0 0 0 -1 0 2-4chrd.dat
1 16 -13.75 33.5 57 3.75 0 0 0 0 -7.5 0 -1 0 rect1.dat
1 16 -17.5 33.5 53 0 0 -7.5 7.5 0 0 0 1 0 2-4chrd.dat
1 16 -13.75 33.5 53 3.75 0 0 0 0 -7.5 0 1 0 rect1.dat
1 16 -13.75 41 55 0 0 3.75 0 -1 0 2 0 0 rect3.dat
1 16 -13.75 26 55 0 0 3.75 0 1 0 2 0 0 rect3.dat
1 16 -10 33.5 53.5 0 -1 0 0 0 7.5 -.5 0 0 rect1.dat
1 16 -17.5 33.5 53 0 0 -2 2 0 0 0 1 0 4-4edge.dat
1 16 -17.5 33.5 50.5 0 0 -2 -2 0 0 0 2.5 0 4-4cyli.dat
1 16 -17.5 33.5 50.5 0 0 -2 -2 0 0 0 -2.5 0 4-8sphe.dat
1 16 -17.5 33.5 -57 0 0 -7.5 7.5 0 0 0 4 0 2-4cylo.dat
1 16 -17.5 33.5 -57 0 0 -7.5 7.5 0 0 0 1 0 2-4chrd.dat
1 16 -13.75 33.5 -57 3.75 0 0 0 0 -7.5 0 1 0 rect1.dat
1 16 -17.5 33.5 -53 0 0 -7.5 7.5 0 0 0 -1 0 2-4chrd.dat
1 16 -13.75 33.5 -53 3.75 0 0 0 0 -7.5 0 -1 0 rect1.dat
1 16 -13.75 41 -55 0 0 3.75 0 -1 0 2 0 0 rect3.dat
1 16 -13.75 26 -55 0 0 3.75 0 1 0 2 0 0 rect3.dat
1 16 -10 33.5 -53.5 0 -1 0 0 0 -7.5 .5 0 0 rect1.dat
1 16 -17.5 33.5 -53 0 0 -2 2 0 0 0 1 0 4-4edge.dat
1 16 -17.5 33.5 -50.5 0 0 -2 -2 0 0 0 -2.5 0 4-4cyli.dat
1 16 -17.5 33.5 -50.5 0 0 -2 -2 0 0 0 2.5 0 4-8sphe.dat
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
None
Official parents and subparts
Part Events:
N. W. Perry [Plastikean]
initially submitted the part.
2023-10-10 01:51:06
N. W. Perry [Plastikean]
submitted a new version of the part (all votes reset).
2023-10-10 01:54:38
Fixing a BFC error…
Magnus Forsberg [MagFors]
posted a vote of Hold
2023-10-15 13:56:17
All empty comments, loose zeros, should be deleted.
Magnus Forsberg [MagFors]
posted a vote of Hold
2023-10-15 14:03:52
Orientation is wrong. Should be the same as the doors.
N. W. Perry [Plastikean]
made the following comment.
2023-10-15 23:03:08
Agreed. The weird orientation was inherited from somewhere…
I'll also change the origin to match existing 821, or should it be at the hinge pin to also match the door?
I'll also change the origin to match existing 821, or should it be at the hinge pin to also match the door?
N. W. Perry [Plastikean]
submitted a new version of the part (all votes reset).
2023-10-15 23:05:44
Orientation and origin fixed
Magnus Forsberg [MagFors]
posted a vote of Hold
2023-10-16 15:18:41
I don't like this origin.
We have a chance now to correct the strange origin of 821.dat, if we choose to renumber and move it.
821 has an origin inherited from the bottom plate 820.dat. Bad. Should be at top stud surface, between the studs.
These 2 frames should have an origin that make them behave like the doors and windows from the Mursten era of parts.
You had a good origin. Only the orientation was wrong.
1 7 0 0 0 1 0 0 0 1 0 0 0 1 820.dat
1 2 70 -96 0 0 0 -1 0 1 0 1 0 0 821b.dat
1 4 53 -62 0 0 1 0 -1 0 0 0 0 1 822ec01.dat
1 10047 60 -24 70 -1 0 0 0 1 0 0 0 -1 u8001c.dat
1 10047 70 -48 80 0 0 -1 0 1 0 1 0 0 u8001a.dat
1 10047 60 -72 70 -1 0 0 0 1 0 0 0 -1 u8001c.dat
1 10047 70 -96 80 0 0 -1 0 1 0 1 0 0 u8001a.dat
1 7 0 0 0 1 0 0 0 1 0 0 0 1 821.dat
1 2 70 -72 120 0 0 -1 0 1 0 1 0 0 u8041.dat
btw, there's a collission between the counterweights and the conical, sloping ramp.
We have a chance now to correct the strange origin of 821.dat, if we choose to renumber and move it.
821 has an origin inherited from the bottom plate 820.dat. Bad. Should be at top stud surface, between the studs.
These 2 frames should have an origin that make them behave like the doors and windows from the Mursten era of parts.
You had a good origin. Only the orientation was wrong.
1 7 0 0 0 1 0 0 0 1 0 0 0 1 820.dat
1 2 70 -96 0 0 0 -1 0 1 0 1 0 0 821b.dat
1 4 53 -62 0 0 1 0 -1 0 0 0 0 1 822ec01.dat
1 10047 60 -24 70 -1 0 0 0 1 0 0 0 -1 u8001c.dat
1 10047 70 -48 80 0 0 -1 0 1 0 1 0 0 u8001a.dat
1 10047 60 -72 70 -1 0 0 0 1 0 0 0 -1 u8001c.dat
1 10047 70 -96 80 0 0 -1 0 1 0 1 0 0 u8001a.dat
1 7 0 0 0 1 0 0 0 1 0 0 0 1 821.dat
1 2 70 -72 120 0 0 -1 0 1 0 1 0 0 u8041.dat
btw, there's a collission between the counterweights and the conical, sloping ramp.
N. W. Perry [Plastikean]
submitted a new version of the part (all votes reset).
2023-10-21 01:28:53
Origin reverted
N. W. Perry [Plastikean]
made the following comment.
2023-10-21 01:34:29
Re: the collision, yeah...this kind of confirms what I've suspected, that the counterweights are a bit too thick. But to fix this requires fixing the connection point on the door as well. Worth it?
Willy Tschager [Holly-Wood]
made the following comment.
2025-10-06 06:19:30
* Duplicated edges due to rects:
2 24 -10 41 53 -10 26 53
2 24 -10 41 -53 -10 26 -53
* Rects
2 24 -10 41 53 -10 26 53
2 24 -10 41 -53 -10 26 -53
* Rects
Willy Tschager [Holly-Wood]
made the following comment.
2025-10-06 06:25:44
* T-junk
2 27 -10 0 60 -10 0 -60
2 27 -10 26 54 -10 41 54
2 27 -10 0 60 -10 0 -60
2 27 -10 26 54 -10 41 54
