File Detail parts/u9187f.dat

Official File parts/u9187f.dat

Part Attributes:

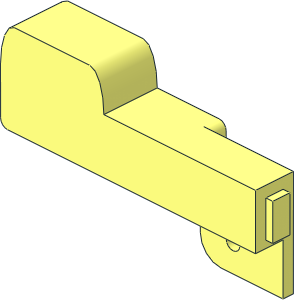

~Garage Door Counterweight with Pin Hole Right

File Header:

0 ~Garage Door Counterweight with Pin Hole Right
0 Name: u9187f.dat
0 Author: N. W. Perry [Plastikean]
0 !LDRAW_ORG Part UPDATE 2023-07
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS Lego Mursten

0 !HISTORY 2023-12-31 [OrionP] Official Update 2023-07

Show contents

0 BFC INVERTNEXT
1 16 0 0 -1.5 0 0 2 2 0 0 0 3 0 4-4cylo.dat
1 16 0 0 -1.5 0 0 2 2 0 0 0 1 0 4-4ndis.dat
1 16 0 0 1.5 0 0 2 2 0 0 0 -1 0 4-4ndis.dat

1 16 -3.5 1.5 -1.5 0 0 -6 6 0 0 0 3 0 1-4cylo.dat
1 16 -3.5 1.5 -1.5 0 0 -6 6 0 0 0 1 0 1-4chrd.dat
1 16 -3.5 1.5 1.5 0 0 -6 6 0 0 0 -1 0 1-4chrd.dat

3 16 -2 2 -1.5 -3.5 7.5 -1.5 0 2 -1.5
4 16 2 2 -1.5 0 2 -1.5 -3.5 7.5 -1.5 14.5 7.5 -1.5
4 16 2 2 -1.5 14.5 7.5 -1.5 14.5 -6.5 -1.5 2 0 -1.5
3 16 2 0 -1.5 14.5 -6.5 -1.5 2 -2 -1.5
4 16 0 -2 -1.5 2 -2 -1.5 14.5 -6.5 -1.5 -9.5 -6.5 -1.5
3 16 0 -2 -1.5 -9.5 -6.5 -1.5 -2 -2 -1.5
4 16 -2 0 -1.5 -2 -2 -1.5 -9.5 -6.5 -1.5 -9.5 1.5 -1.5
4 16 -3.5 7.5 -1.5 -2 2 -1.5 -2 0 -1.5 -9.5 1.5 -1.5
1 16 -9.5 -2.5 0 0 1 0 0 0 -4 -1.5 0 0 rect3.dat
1 16 5.5 7.5 0 0 0 9 0 -1 0 1.5 0 0 rect3.dat

1 16 -57.5 -8.5 -9.5 0 0 -2 2 0 0 0 15.5 0 1-4cylo.dat
1 16 -57.5 -8.5 -9.5 0 0 -2 2 0 0 0 1 0 1-4chrd.dat
1 16 -57.5 -8.5 6 0 0 -2 2 0 0 0 -1 0 1-4chrd.dat

4 16 -11.5 -6.5 6 -11.5 -6.5 1.5 -57.5 -6.5 -9.5 -57.5 -6.5 6
4 16 -57.5 -6.5 -9.5 -11.5 -6.5 1.5 -9.5 -6.5 1.5 -9.5 -6.5 -1.5
4 16 -57.5 -6.5 -9.5 -9.5 -6.5 -1.5 14.5 -6.5 -1.5 14.5 -6.5 -9.5
1 16 -59.5 -15 -1.75 0 1 0 -6.5 0 0 0 0 7.75 rect2p.dat
4 16 -59.5 -21.5 -9.5 -59.5 -8.5 -9.5 -57.5 -6.5 -9.5 -29.5 -21.5 -9.5
4 16 14.5 -21.5 -9.5 -29.5 -21.5 -9.5 -57.5 -6.5 -9.5 14.5 -6.5 -9.5
4 16 -59.5 -8.5 6 -59.5 -21.5 6 -29.5 -21.5 6 -57.5 -6.5 6
4 16 -29.5 -21.5 6 -9.5 -8.5 6 -11.5 -6.5 6 -57.5 -6.5 6
4 16 -9.5 -19.5 6 -9.5 -8.5 6 -29.5 -21.5 6 -11.5 -21.5 6
4 16 -11.5 -21.5 1.5 -11.5 -21.5 6 -29.5 -21.5 6 -29.5 -21.5 -9.5
4 16 -9.5 -21.5 1.5 -11.5 -21.5 1.5 -29.5 -21.5 -9.5 14.5 -21.5 -9.5
3 16 14.5 -21.5 1.5 -9.5 -21.5 1.5 14.5 -21.5 -9.5

1 16 -11.5 -8.5 1.5 0 0 2 2 0 0 0 4.5 0 1-4cylo.dat
1 16 -11.5 -8.5 1.5 0 0 2 2 0 0 0 -1 0 1-4ndis.dat
1 16 -11.5 -8.5 6 0 0 2 2 0 0 0 -1 0 1-4chrd.dat
1 16 -9.5 -14 3.75 0 -1 0 5.5 0 0 0 0 2.25 rect2p.dat
1 16 -11.5 -19.5 1.5 0 0 2 -2 0 0 0 4.5 0 1-4cylo.dat
1 16 -11.5 -19.5 1.5 0 0 2 -2 0 0 0 -1 0 1-4ndis.dat
1 16 -11.5 -19.5 6 0 0 2 -2 0 0 0 -1 0 1-4chrd.dat

3 16 -3.5 7.5 1.5 -2 2 1.5 0 2 1.5
4 16 -3.5 7.5 1.5 0 2 1.5 2 2 1.5 14.5 7.5 1.5
3 16 2 0 1.5 14.5 7.5 1.5 2 2 1.5
4 16 2 0 1.5 2 -2 1.5 14.5 -21.5 1.5 14.5 7.5 1.5
3 16 0 -2 1.5 14.5 -21.5 1.5 2 -2 1.5
4 16 0 -2 1.5 -9.5 -6.5 1.5 -9.5 -8.5 1.5 14.5 -21.5 1.5
3 16 -9.5 -6.5 1.5 0 -2 1.5 -2 -2 1.5
4 16 -9.5 -6.5 1.5 -2 -2 1.5 -2 0 1.5 -9.5 1.5 1.5
4 16 -2 0 1.5 -2 2 1.5 -3.5 7.5 1.5 -9.5 1.5 1.5
3 16 -9.5 -19.5 1.5 14.5 -21.5 1.5 -9.5 -8.5 1.5
3 16 -9.5 -21.5 1.5 14.5 -21.5 1.5 -9.5 -19.5 1.5

1 16 14.5 -13.5 -4 0 2 0 0 0 5 2.5 0 0 box5.dat
4 16 14.5 -6.5 -9.5 14.5 -6.5 -1.5 14.5 -8.5 -1.5 14.5 -8.5 -6.5
4 16 14.5 -8.5 -6.5 14.5 -18.5 -6.5 14.5 -21.5 -9.5 14.5 -6.5 -9.5
4 16 14.5 -21.5 -9.5 14.5 -18.5 -6.5 14.5 -18.5 -1.5 14.5 -21.5 1.5
3 16 14.5 -21.5 1.5 14.5 -18.5 -1.5 14.5 -8.5 -1.5
4 16 14.5 7.5 1.5 14.5 -21.5 1.5 14.5 -8.5 -1.5 14.5 -6.5 -1.5
3 16 14.5 7.5 1.5 14.5 -6.5 -1.5 14.5 7.5 -1.5

1 16 -55.5 -21.5 -9.5 0 0 -4 -10 0 0 0 15.5 0 1-4cylo.dat
1 16 -55.5 -21.5 -9.5 0 0 -4 -10 0 0 0 1 0 1-4chrd.dat
1 16 -55.5 -21.5 6 0 0 -4 -10 0 0 0 -1 0 1-4chrd.dat
1 16 -33.5 -21.5 -9.5 0 0 4 -10 0 0 0 15.5 0 1-4cylo.dat
1 16 -33.5 -21.5 -9.5 0 0 4 -10 0 0 0 1 0 1-4chrd.dat
1 16 -33.5 -21.5 6 0 0 4 -10 0 0 0 -1 0 1-4chrd.dat
4 16 -29.5 -21.5 -9.5 -33.5 -31.5 -9.5 -55.5 -31.5 -9.5 -59.5 -21.5 -9.5
1 16 -44.5 -31.5 -1.75 -11 0 0 0 1 0 0 0 -7.75 rect2p.dat
4 16 -29.5 -21.5 6 -59.5 -21.5 6 -55.5 -31.5 6 -33.5 -31.5 6

2 24 -11.5 -6.5 6 -57.5 -6.5 6
2 24 -9.5 -6.5 1.5 -11.5 -6.5 1.5
2 24 -9.5 -6.5 -1.5 14.5 -6.5 -1.5
2 24 14.5 -6.5 -9.5 -57.5 -6.5 -9.5
2 24 14.5 7.5 -1.5 14.5 -6.5 -1.5
2 24 14.5 -6.5 -1.5 14.5 -6.5 -9.5
2 24 14.5 -6.5 -9.5 14.5 -21.5 -9.5
2 24 14.5 -21.5 -9.5 14.5 -21.5 1.5
2 24 14.5 -21.5 1.5 14.5 7.5 1.5
2 24 -29.5 -21.5 -9.5 -29.5 -21.5 6
2 24 -29.5 -21.5 6 -11.5 -21.5 6
2 24 -11.5 -21.5 1.5 14.5 -21.5 1.5
2 24 -29.5 -21.5 -9.5 14.5 -21.5 -9.5

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

N. W. Perry [Plastikean]

initially submitted the part.

2023-10-11 23:52:58

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2023-10-14 13:21:15

Magnus Forsberg [MagFors]

posted a vote of Hold.

2023-10-15 13:47:31

Please use 1-4chrd insted of 1-4disc primitives.
box primitives, only adding pointless vertices, should be avoided.

N. W. Perry [Plastikean]

submitted a new version of the part.

2023-10-16 00:41:22

Now 99 percent disc- and box-free.

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2023-10-19 15:25:00

Magnus Forsberg [MagFors]

posted a vote of Certify.

2023-10-19 16:43:50

"Regular use of this method produces a satisfied reviewer"

Magnus Forsberg [MagFors]

cancelled their vote.

2023-10-28 12:37:45

https://library.ldraw.org/tracker/32687

I think the counter weights could be changed to better avoid the collision.
This surface could be moved 0.5 ldu
4 12 -59.5 -21.5 -10 -59.5 -8.5 -10 -57.5 -6.5 -10 -29.5 -21.5 -10
4 12 14.5 -21.5 -10 -29.5 -21.5 -10 -57.5 -6.5 -10 14.5 -6.5 -10
4 12 -29.5 -21.5 -10 -33.5 -31.5 -10 -55.5 -31.5 -10 -59.5 -21.5 -10
making the surface around the remaining box somewhat symetrical, without a need to change the door.

N. W. Perry [Plastikean]

made the following comment.

2023-11-07 16:05:44

Ok, I will make that change. I still feel the door will need to be changed ultimately, because the photos I have clearly show these inner edges as being flush to each other. But this can be saved for a future project as it does not affect functionality the way this collision does.
(The question will be whether all door versions have to be changed or only this one, because it also affects the cross subpart which at the moment is common to all variants.)

N. W. Perry [Plastikean]

submitted a new version of the part.

2023-11-07 16:07:05

Inner surface moved 0.5 LDU

Magnus Forsberg [MagFors]

posted a vote of Certify.

2023-11-08 20:22:22

Vincent Messenet [Cheenzo]

posted a vote of Certify.

2023-11-08 20:45:06

Orion Pobursky [OrionP]

posted a vote of Admin Review.
