Unofficial File parts/s/6177973afs01.dat
File Header:

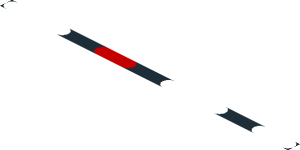

0 ~Sticker 1.8 x 1.8 with Red and White Stripes in Black Square on Grey Background - One Stripe
0 Name: s\6177973afs01.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
0 // Primitives
1 0 -11.4 0 0 0 0 -.5 0 1 0 .5 0 0 2-4ndis.dat
1 15 -11.4 0 0 0 0 -.5 0 1 0 .5 0 0 2-4chrd.dat
1 15 -7.25 0 0 0 0 .5 0 1 0 .5 0 0 2-4chrd.dat
1 0 -7.25 0 0 0 0 .5 0 1 0 .5 0 0 2-4ndis.dat
1 0 -3.9 0 0 0 0 -.5 0 1 0 .5 0 0 2-4ndis.dat
1 4 -3.9 0 0 0 0 -.5 0 1 0 .5 0 0 2-4chrd.dat
1 4 -1.8 0 0 0 0 .5 0 1 0 .5 0 0 2-4chrd.dat
1 0 -1.8 0 0 0 0 .5 0 1 0 .5 0 0 2-4ndis.dat
1 0 1.55 0 0 0 0 -.5 0 1 0 .5 0 0 2-4ndis.dat
1 15 1.55 0 0 0 0 -.5 0 1 0 .5 0 0 2-4chrd.dat
1 15 5.75 0 0 0 0 .5 0 1 0 .5 0 0 2-4chrd.dat
1 0 5.75 0 0 0 0 .5 0 1 0 .5 0 0 2-4ndis.dat
1 0 9.1 0 0 0 0 -.5 0 1 0 .5 0 0 2-4ndis.dat
1 15 9.1 0 0 0 0 -.5 0 1 0 .5 0 0 2-4chrd.dat
1 15 11.4 0 0 0 0 .5 0 1 0 .5 0 0 2-4chrd.dat
1 0 11.4 0 0 0 0 .5 0 1 0 .5 0 0 2-4ndis.dat
0 // Faces
0 // Black faces
4 0 -6.75 0 0 -4.4 0 0 -4.4 0 .5 -6.75 0 .5
4 0 -6.75 0 0 -6.75 0 -.5 -4.4 0 -.5 -4.4 0 0
4 0 -1.3 0 0 1.05 0 0 1.05 0 .5 -1.3 0 .5
4 0 -1.3 0 0 -1.3 0 -.5 1.05 0 -.5 1.05 0 0
4 0 6.25 0 0 8.6 0 0 8.6 0 .5 6.25 0 .5
4 0 6.25 0 0 6.25 0 -.5 8.6 0 -.5 8.6 0 0
0 // Red face
4 4 -3.9 0 .5 -3.9 0 -.5 -1.8 0 -.5 -1.8 0 .5
0 // White faces
4 15 -11.4 0 .5 -11.4 0 -.5 -7.25 0 -.5 -7.25 0 .5
4 15 1.55 0 .5 1.55 0 -.5 5.75 0 -.5 5.75 0 .5
4 15 9.1 0 .5 9.1 0 -.5 11.4 0 -.5 11.4 0 .5
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
None
Official parents and subparts
Part Events:
2023-10-17 21:05:39
Creative Commons Attribution License information
This part is copyright © Massimo Maso
Licensed under CC BY 4.0
