Unofficial File parts/s/6177973ds01.dat

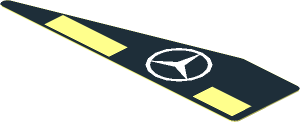

~Sticker 1.0 x 3.8 with White Logos on Black Background Right - Common Part
File Header:
0 ~Sticker 1.0 x 3.8 with White Logos on Black Background Right - Common Part 0 Name: s\6177973ds01.dat 0 Author: Massimo Maso [Sirio] 0 !LDRAW_ORG Unofficial_Subpart 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW
Show contents
0 // Logo primitives 1 15 -17.15 -.25 -1.25 1.4 0 0 0 1 0 0 0 1.4 logo-mercedes-star.dat 1 0 -17.15 -.25 -1.25 1.4 0 0 0 1 0 0 0 1.4 logo-mercedes-star-inner.dat 0 // Stickerback 1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\stickerback010x038a.dat 0 // Primitives 1 0 -9.44385 -.25 8.5 0 0 -1.5 0 1 0 1.5 0 0 1-16chrd.dat 1 0 6.5 -.25 8.5 1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat 1 0 -60.4438 -.25 -8.5 0 0 -1.5 0 1 0 -1.5 0 0 7-16chrd.dat 1 0 6.5 -.25 -8.5 1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat 1 0 -17.15 -.25 -1.25 -7 0 0 0 1 0 0 0 -7 3-4ndis.dat 1 0 -17.15 -.25 -1.25 0 0 -7 0 1 0 7 0 0 1-8tndis.dat 1 0 -17.15 -.25 -1.25 -7 0 0 0 1 0 0 0 7 1-8tndis.dat 0 // Top face 0 // Black complementary faces 3 0 -22.0997 -.25 5.75 -10.0179 -.25 9.88585 -61.01785 -.25 -7.11415 3 0 -22.0997 -.25 5.75 -17.15 -.25 5.75 -10.0179 -.25 9.88585 3 0 -22.0997 -.25 5.75 -24.15 -.25 3.6997 -22.0997 -.25 3.6997 4 0 -22.0997 -.25 5.75 -48.94 -.25 -3.675 -39.4 -.25 -3.675 -24.15 -.25 3.6997 3 0 -22.0997 -.25 5.75 -61.01785 -.25 -7.11415 -48.94 -.25 -3.675 4 0 -10.15 -.25 5.75 -9.44385 -.25 10 -10.0179 -.25 9.88585 -17.15 -.25 5.75 4 0 -10.15 -.25 5.75 5.8 -.25 -2.8 6.5 -.25 10 -9.44385 -.25 10 4 0 -10.15 -.25 5.75 -10.15 -.25 -1.25 -5.8 -.25 -2.8 5.8 -.25 -2.8 4 0 -24.15 -.25 -1.25 -24.15 -.25 3.6997 -39.4 -.25 -3.675 -29.86 -.25 -3.675 4 0 -24.15 -.25 -1.25 -29.86 -.25 -3.675 -29.86 -.25 -9.24 -24.15 -.25 -8.25 4 0 -10.15 -.25 -1.25 -10.15 -.25 -8.25 -5.8 -.25 -8.6 -5.8 -.25 -2.8 4 0 5.8 -.25 -2.8 8 -.25 -8.5 8 -.25 8.5 6.5 -.25 10 4 0 5.8 -.25 -2.8 5.8 -.25 -8.6 6.5 -.25 -10 8 -.25 -8.5 4 0 -48.94 -.25 -9.24 -48.94 -.25 -3.675 -61.01785 -.25 -7.11415 -60.4438 -.25 -10 4 0 -48.94 -.25 -9.24 -60.4438 -.25 -10 6.5 -.25 -10 -29.86 -.25 -9.24 3 0 6.5 -.25 -10 5.8 -.25 -8.6 -5.8 -.25 -8.6 4 0 6.5 -.25 -10 -5.8 -.25 -8.6 -10.15 -.25 -8.25 -17.15 -.25 -8.25 4 0 6.5 -.25 -10 -17.15 -.25 -8.25 -24.15 -.25 -8.25 -29.86 -.25 -9.24
Status:
Not releaseable Needs 2 More Votes (N) Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
This part has the following warnings
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 1 0 -9.44385 -.25 8.5 0 0 -1.5 0 1 0 1.5 0 0 1-16chrd.dat
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 3 0 -22.0997 -.25 5.75 -10.0179 -.25 9.88585 -61.01785 -.25 -7.11415
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 3 0 -22.0997 -.25 5.75 -17.15 -.25 5.75 -10.0179 -.25 9.88585
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 3 0 -22.0997 -.25 5.75 -61.01785 -.25 -7.11415 -48.94 -.25 -3.675
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 4 0 -10.15 -.25 5.75 -9.44385 -.25 10 -10.0179 -.25 9.88585 -17.15 -.25 5.75
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 4 0 -10.15 -.25 5.75 5.8 -.25 -2.8 6.5 -.25 10 -9.44385 -.25 10
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 4 0 -48.94 -.25 -9.24 -48.94 -.25 -3.675 -61.01785 -.25 -7.11415 -60.4438 -.25 -10
Current Votes:

None

Official parents and subparts
Part Events:
Massimo Maso [Sirio]
Part Header Editor
initially submitted the part.
2023-10-17 21:05:40
Massimo Maso [Sirio]
Part Header Editor
submitted a new version of the part.
2023-10-26 22:56:07
Takeshi Takahashi [RainbowDolphin]
Senior Part Reviewer
posted a vote of Certify.
2024-09-23 21:55:19
Massimo Maso [Sirio]
Part Header Editor
submitted a new version of the part.
2024-09-25 05:53:19
Completed the logo.
Peter Blomberg [WUIt]
Part Header Editor
posted a vote of Certify.
2025-11-21 14:48:27
Rene Rechthaler [Blechtaler]
Part Header Editor
posted a vote of Certify.
2025-11-21 14:54:06
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Hold.
2025-11-22 16:01:14
I think the backside could be subfiled and reused in many of the Speed Champions F1 sets.
Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2025-11-22 16:30:14
as of now the other shortcuts with 60477.dat have a different shape
Massimo Maso [Sirio]
Part Header Editor
made the following comment.
2025-11-24 17:43:51
Wasn't it said that stickerbacks should only be rectangular or square?
or that the stickerback had to completely cover the face?

As Renè indicates, for the part there are two stickers of different lengths, a triangular one that covers the entire side face (6177973d) and a trapezoidal one that covers it only partially (6253618g).
Magnus Forsberg [MagFors]
Part Library Admin
made the following comment.
2025-11-24 21:41:19
The backsides are allowed to have any shape. Irregular shapes have a suffix. A single letter.
This can be: stickerback010x038a.dat
These all have the same shape, and can share a reusable backside.
https://www.bricklink.com/v2/catalog/catalogitem.page?P=60477pb010
https://www.bricklink.com/v2/catalog/catalogitem.page?P=60477pb001L
https://www.bricklink.com/v2/catalog/catalogitem.page?P=60477pb001R
https://www.bricklink.com/v2/catalog/catalogitem.page?P=60477pb014
Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2025-11-24 23:00:20
as this shape is quite special for this slope it could be 60477b01
Massimo Maso [Sirio]
Part Header Editor
submitted a new version of the part.
2025-11-25 17:02:28
