Unofficial File parts/s/6177973ss01.dat
File Header:

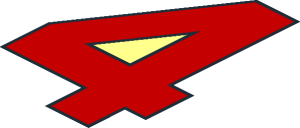

0 ~Sticker 0.8 x 7.8 with Black "44 Mercedes F1 W07 Hybrid 6" on Grey Background - Red Number 4
0 Name: s\6177973ss01.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP Exact dimensions X = 6.9; Z = 10
0 BFC CERTIFY CCW
Show contents
0 // Black frame
4 0 .414 0 5 .4957 0 4.85 2.3202 0 4.85 2.4702 0 5
4 0 2.3202 0 4.85 2.3202 0 -1.13 2.4702 0 -.98 2.4702 0 5
4 0 2.4702 0 -.98 2.3202 0 -1.13 3.3 0 -1.13 3.45 0 -.98
4 0 3.3 0 -1.13 3.3 0 -3.13 3.45 0 -3.28 3.45 0 -.98
4 0 3.3 0 -3.13 2.3202 0 -3.13 2.4702 0 -3.28 3.45 0 -3.28
4 0 2.3202 0 -3.13 2.3202 0 -4.85 2.4702 0 -5 2.4702 0 -3.28
4 0 2.3202 0 -4.85 .564 0 -4.85 .414 0 -5 2.4702 0 -5
4 0 -3.3 0 -3.13 -3.45 0 -3.28 .414 0 -3.28 .564 0 -3.13
4 0 -3.45 0 -.98 -3.45 0 -3.28 -3.3 0 -3.13 -3.3 0 -1.0243
4 0 .414 0 5 -3.45 0 -.98 -3.3 0 -1.0243 .4957 0 4.85
4 0 .564 0 -3.13 .414 0 -3.28 .414 0 -5 .564 0 -4.85
0 // Red filler
4 4 2.3202 0 -1.13 2.3202 0 -3.13 3.3 0 -3.13 3.3 0 -1.13
4 4 .564 0 -1.13 .564 0 -3.13 2.3202 0 -3.13 2.3202 0 -1.13
4 4 .564 0 2.2195 .564 0 -1.13 2.3202 0 -1.13 2.3202 0 4.85
4 4 .564 0 -3.13 .564 0 -4.85 2.3202 0 -4.85 2.3202 0 -3.13
4 4 -1.6003 0 -1.13 -3.3 0 -3.13 .564 0 -3.13 .564 0 -1.13
4 4 .564 0 2.2195 -3.3 0 -1.0243 -3.3 0 -3.13 -1.6003 0 -1.13
4 4 -3.3 0 -1.0243 .564 0 2.2195 2.3202 0 4.85 .4957 0 4.85
0 // Inner black frame
4 0 .414 0 1.711 .414 0 -.98 .564 0 -1.13 .564 0 2.2195
4 0 .414 0 -.98 -1.3248 0 -.98 -1.6003 0 -1.13 .564 0 -1.13
4 0 -1.6003 0 -1.13 -1.3248 0 -.98 .414 0 1.711 .564 0 2.2195
0 // Neutral filler
3 16 .414 0 1.711 -1.3248 0 -.98 .414 0 -.98
Status:
Needs 1 More Vote (CN)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
This part has the following warnings
- Number in description may need a leading space
Current Votes:
| User | Vote |
|---|---|
| RainbowDolphin | Certify |
Official parents and subparts
Part Events:
2023-10-18 16:28:13
2024-09-23 22:11:42
Creative Commons Attribution License information
This part is copyright © Massimo Maso
Licensed under CC BY 4.0
