Official File parts/s/45575s02.dat
File Header:

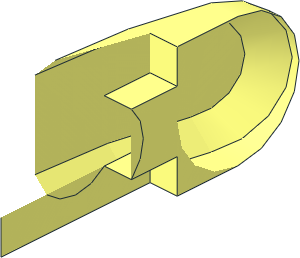

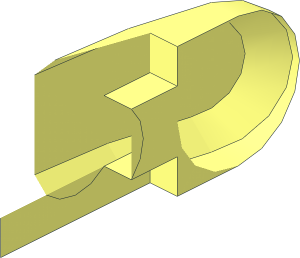

0 ~Technic Double Flexible Fixing Pin - One Half
0 Name: s\45575s02.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Subpart UPDATE 2023-07
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2023-12-31 [OrionP] Official Update 2023-07
Show contents
0 // Primitives
1 16 -7 0 20 0 1 2 6 0 0 0 0 6 2-4chrd.dat
1 16 -7 0 20 0 -1 2 6 0 0 0 0 6 2-4edge.dat
1 16 -4 0 20 0 -3 1 3 0 0 0 0 3 2-4con2.dat
1 16 -4 0 20 0 -1 3 9 0 0 0 0 9 2-4edge.dat
1 16 -1 0 20 0 -3 0 0 0 9 9 0 0 1-4cyls.dat
1 16 -1 0 20 0 -3 0 0 0 -9 9 0 0 1-4cyls.dat
1 16 0 0 20 0 -1 0 9 0 0 0 0 9 2-4cyli.dat
1 16 0 0 20 0 1 0 9 0 0 0 0 9 2-4edge.dat
1 16 -4 0 0 0 -1 0 6 0 0 0 0 6 1-8edge.dat
1 16 -4 0 0 0 -1 0 6 0 0 0 0 -6 1-8edge.dat
1 16 -4 6.6213 0 0 -1 0 0 0 2.3787 11 0 0 rect3.dat
1 16 -2 6.6213 15.5 2 0 0 0 2.3787 0 0 0 -4.5 box2-9.dat
1 16 -4 0 7.6213 0 4 0 0 0 4.2426 -3.3787 0 0 box3u4p.dat
1 16 -2 -6.6213 15.5 2 0 0 0 -2.3787 0 0 0 -4.5 box2-9.dat
1 16 0 0 0 0 -1 0 0 0 6 6 0 0 1-8edge.dat
1 16 0 0 0 0 -1 0 0 0 -6 6 0 0 1-8edge.dat
1 16 0 0 20 0 -1 0 -9 0 0 0 0 -9 2-4ndis.dat
0 // Faces
4 16 -6.25 -9 10 -7 -9 0 -4 -9 11 -4 -9 20
4 16 -6.25 -9 10 -9.25 -6 10 -10 -6 0 -7 -9 0
4 16 -6.25 -9 10 -4 -9 20 -7 -6 20 -9.25 -6 10
4 16 -9.25 -6 10 -9.25 6 10 -10 6 0 -10 -6 0
4 16 -9.25 -6 10 -7 -6 20 -7 6 20 -9.25 6 10
4 16 -6.25 9 10 -7 9 0 -10 6 0 -9.25 6 10
4 16 -6.25 9 10 -9.25 6 10 -7 6 20 -4 9 20
4 16 -6.25 9 10 -4 9 20 -4 9 11 -7 9 0
3 16 -4 9 -11 -7 9 0 -4 9 11
0 // Edges
2 24 -9.25 6 10 -10 6 0
2 24 -9.25 6 10 -7 6 20
2 24 -9.25 -6 10 -10 -6 0
2 24 -9.25 -6 10 -7 -6 20
2 24 -6.25 9 10 -7 9 0
2 24 -6.25 9 10 -4 9 20
2 24 -6.25 -9 10 -7 -9 0
2 24 -6.25 -9 10 -4 -9 20
0 // Conditional lines
5 24 -6.25 9 10 -9.25 6 10 -7 9 0 -4 9 20
5 24 -9.25 6 10 -9.25 -6 10 -10 6 0 -7 6 20
5 24 -7 6 20 -7 -6 20 -9.25 6 10 -5 0 26
5 24 -6.25 -9 10 -9.25 -6 10 -7 -9 0 -4 -9 20
5 24 -7 -9 0 -10 -6 0 -6.25 -9 -10 -6.25 -9 10
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2023-10-18 22:29:54
Added conditional line.
2023-10-20 06:03:48
2023-11-20 18:29:16
2023-12-07 19:47:10
2023-12-31 17:54:25
Release 2023-07
Creative Commons Attribution License information
This part is copyright © Massimo Maso
Licensed under CC BY 4.0
