File Detail parts/3468.dat

Download Download zip file View patterns/composites/shortcuts

Official File parts/3468.dat

Part Attributes:

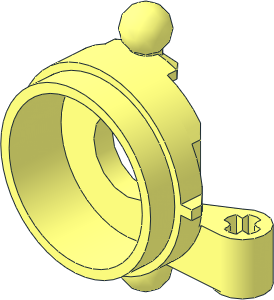

~Technic Steering Wheel Bearing Body Back

File Header:

0 ~Technic Steering Wheel Bearing Body Back
0 Name: 3468.dat
0 Author: Jens Brühl [jb70]
0 !LDRAW_ORG Part UPDATE 2024-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2023-10-25 {LEGO Instructions App} Original part shape
0 !HISTORY 2023-10-27 [Philo] File preparation for LDraw Parts Tracker
0 !HISTORY 2024-05-28 [OrionP] Official Update 2024-04

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3468s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\3468s01.dat
1 16 0 -40 0 0 -8 0 -8 0 0 0 0 -8 8-8sphe.dat
1 16 0 40 0 0 -8 0 -8 0 0 0 0 -8 8-8sphe.dat
0 BFC INVERTNEXT
1 16 0 0 0 14 0 0 0 0 -14 0 -7.5 0 4-4cylo.dat
1 16 0 0 -29 31 0 0 0 0 31 0 10 0 48\4-4cylo.dat
1 16 0 0 -29 3.44444 0 0 0 0 3.44444 0 1 0 48\4-4ring8.dat
1 16 0 0 -7.5 9.89949 0 9.89949 9.89949 0 -9.89949 0 1 0 4-4ndis.dat
0 BFC INVERTNEXT
1 16 0 0 -29 27.55556 0 0 0 0 27.55556 0 21.5 0 48\4-4cylo.dat

3 16 0 17.5 -4 2.7 21 -4 -2.7 21 -4
3 16 -2.7 25.8 -4 2.7 25.8 -4 0 28.939 -4
1 16 0 23.4 -4 2.7 0 0 0 0 2.4 0 7.5 0 box3u4p.dat
3 16 2.7 -21 -4 0 -17.5 -4 -2.7 -21 -4
3 16 2.7 -25.8 -4 -2.7 -25.8 -4 0 -28.939 -4
1 16 0 -23.4 -4 2.7 0 0 0 0 -2.4 0 7.5 0 box3u4p.dat

5 24 0 -30.276 5.3 0 -33.6 0 4.3848 -33.311 0 -4.3848 -33.311 0
5 24 0 28.939 5.3 0 28.939 -4 -1.853 28.606 -4 1.853 28.606 -4
5 24 0 17.5 -4 0 17.5 0 -2.7 17.2443 0 2.7 17.2443 0
5 24 0 33.6 -5 0 33.9043 -5 -1.9135 34.1392 -4.6195 1.9135 34.1392 -4.6195
5 24 0 -33.0642 5 0 -33.9043 5 -1.9135 -34.1392 4.6195 1.9135 -34.1392 4.6195
5 24 0 -28.939 -4 0 -28.939 5.3 1.853 -28.606 5.3 -1.853 -28.606 5.3
5 24 0 33.6 0 0 30.276 5.3 4.3848 33.311 0 -4.3848 33.311 0
5 24 0 33.9043 5 0 33.0642 5 1.9135 32.5349 4.6195 -1.9135 32.5349 4.6195
5 24 0 -33.9043 -5 0 -33.6 -5 -1.9135 -33.4739 -4.6195 1.9135 -33.4739 -4.6195
5 24 0 -17.5 -4 0 -17.5 0 2.7 -17.2444 0 -2.7 -17.2444 0

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Jens Brühl [jb70]

initially submitted the part.

2023-10-29 18:38:06

Jens Brühl [jb70]

submitted a new version of the part.

2023-11-01 00:35:47

Philo and me were working on the same part at the same time. We merged our work and this is the result. Many Thanks to Philo for his support!

Jens Brühl [jb70]

submitted a new version of the part.

2023-11-01 10:49:57

Changed part orientation to be aligned with similar parts like 23801.dat

Magnus Forsberg [MagFors]

made the following comment.

2023-11-01 17:28:40

I think you should follow up, and change the orientation of the subparts too.

Jens Brühl [jb70]

submitted a new version of the part.

2023-11-01 17:30:52

moved a cond line to correct position

Jens Brühl [jb70]

submitted a new version of the part.

2023-11-01 17:51:29

Changed orientation of main and sub part

Magnus Forsberg [MagFors]

made the following comment.

2023-11-04 17:42:00

I don't like the use of "Towball". It's not relevant to this part.

Jens Brühl [jb70]

submitted a new version of the part.

2023-11-05 15:01:53

I fixed the issues reviewed by MagFors.

Jens Brühl [jb70]

submitted a new version of the part.

2023-11-05 18:54:39

Moved some central parts to main file to reduce number of triangles.
Small adaption of part geometry in s\3468s02.dat.

Magnus Forsberg [MagFors]

posted a vote of Certify.

2023-11-05 22:25:32

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2024-05-25 23:18:54

Orion Pobursky [OrionP]

posted a vote of Admin Review.

2024-05-26 02:21:56

Orion Pobursky [OrionP]

2024-05-28 02:57:24

Release 2024-04
