File Detail parts/290.dat

Official File parts/290.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on BrickOwl

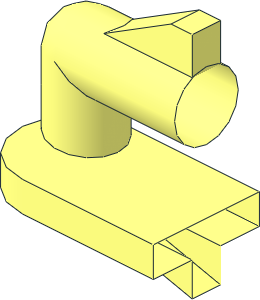

Magnet Holder for Train Base 6 x 22 Type 1

File Header:

0 Magnet Holder for Train Base  6 x 22 Type 1
0 Name: 290.dat
0 Author: Niels Karsdorp [nielsk]
0 !LDRAW_ORG Part UPDATE 2011-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CW

0 !KEYWORDS BrickLink x547c, Coupling, Rebrickable upn0272c

0 !HISTORY 2011-07-25 [PTadmin] Official Update 2011-01

Show contents

0 // Tube is a bit simplified for using sphere primitive

1 16 17 -6 0 1 0 0 0 1 0 0 0 1 s\735s01.dat

0 // Bottom
1 16 -1.5 0 0 0 0 -7.5 0 1 0 7.5 0 0 2-4edge.dat
1 16 -1.5 4 0 0 0 -7.5 0 1 0 7.5 0 0 2-4edge.dat
1 16 -1.5 0 0 0 0 -7.5 0 4 0 7.5 0 0 2-4cyli.dat
1 16 -1.5 0 0 0 0 -7.5 0 1 0 7.5 0 0 2-4disc.dat
1 16 -1.5 4 0 0 0 -7.5 0 -1 0 7.5 0 0 2-4disc.dat
2 24 17 0 -7.5 17 4 -7.5
2 24 17 0 7.5 17 4 7.5
2 24 17 0 7.5 17 0 -7.5
2 24 17 4 7.5 17 4 2
2 24 17 4 -7.5 17 4 -2
1 16 7.75 4 0 9.25 0 0 0 -4 0 0 0 7.5 box3u8p.dat
4 16 17 4 -7.5 17 4 -2 0 4 -2 -1.5 4 -7.5
4 16 -1.5 4 7.5 0 4 2 17 4 2 17 4 7.5
4 16 -1.5 4 7.5 -1.5 4 -7.5 0 4 -2 0 4 2
2 24 17 4 -2 17 8.5 -2
2 24 17 8.5 -2 17 8.5 2
2 24 17 4 2 0 4 2
2 24 17 4 -2 0 4 -2
2 24 0 4 -2 0 4 2
2 24 17 8.5 2 0 4 2
2 24 17 8.5 -2 0 4 -2
4 16 17 8.5 2 0 4 2 0 4 -2 17 8.5 -2
3 16 17 8.5 2 17 4 2 0 4 2
3 16 17 8.5 -2 0 4 -2 17 4 -2

0 // Top
1 16 17 -13 0 0 1 0 4.5 0 0 0 0 4.5 4-4edge.dat
1 16 17 -13 0 0 -12.5 0 4.5 0 0 0 0 4.5 4-4cyli.dat
1 16 0 -8.5 0 4.5 0 0 0 5 0 0 0 4.5 4-4cyli.dat
1 16 0 -3.5 0 -4.5 0 0 0 0.5 0 0 0 4.5 2-4cyls.dat
1 16 0 -3.5 0 -4.5 0 0 0 0.5 0 0 0 -4.5 2-4cyls.dat
1 16 0 -3 0 -4.5 0 0 -0.5 1 0 0 0 -4.5 4-4edge.dat
1 16 0 -3 0 -4.5 0 0 -0.5 -1 0 0 0 -4.5 4-4disc.dat
1 16 0 -13 0 0 0 -4.5 0 -4.5 0 4.5 0 0 2-8sphe.dat
1 16 0 -13 0 0 0 4.5 0 -4.5 4.5 4.5 0 0 2-4edge.dat
1 16 0 -8.5 0 4.5 0 0 0 -4.5 0 0 0 4.5 1-4cyls.dat
1 16 0 -8.5 0 4.5 0 0 0 -4.5 0 0 0 -4.5 1-4cyls.dat
1 16 0 -8.5 0 0 0 -4.5 0 -4.5 0 4.5 0 0 2-4cyli.dat
1 16 4.5 -13 0 0 -4.5 0 4.5 0 0 0 0 4.5 1-4cyls.dat
1 16 4.5 -13 0 0 -4.5 0 4.5 0 0 0 0 -4.5 1-4cyls.dat
1 16 4.5 -13 0 0 -4.5 0 0 0 -4.5 -4.5 0 0 2-4cyli.dat
2 24 17 -17.031 2 4.5 -17.031 2
2 24 17 -17.031 -2 4.5 -17.031 -2
2 24 4.5 -17.031 2 5.397 -17.5 0
2 24 4.5 -17.031 -2 5.387 -17.5 0
2 24 17 -17.031 2 17 -22 2
2 24 17 -17.031 -2 17 -22 -2
2 24 14 -22 2 4.5 -17.031 2
2 24 14 -22 -2 4.5 -17.031 -2
1 16 15.5 -22 0 1.5 0 0 0 1 0 0 0 2 rect.dat
4 16 17 -17.031 -2 17 -22 -2 17 -22 2 17 -17.031 2
4 16 14 -22 -2 4.5 -17.031 -2 4.5 -17.031 2 14 -22 2
4 16 17 -22 2 14 -22 2 4.5 -17.031 2 17 -17.031 2
4 16 17 -17.031 -2 4.5 -17.031 -2 14 -22 -2 17 -22 -2
0

Status:

Official

This part has the following errors

All parts must be BFC CERTIFY CCW

Unofficial parents

Part Events:

Archived Part Events:

None
