Official File parts/6636p0f.dat
Part Attributes:
Base Part: 6636.dat
File Header:

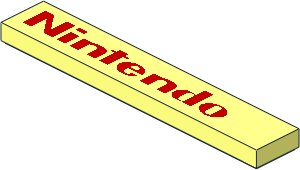

0 Tile 1 x 6 with Red "Nintendo" Pattern
0 Name: 6636p0f.dat
0 Author: Florent Faramond [Makou]
0 !LDRAW_ORG Part UPDATE 2024-07
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Bricklink 6636pb227, Rebrickable 6636pr0028, Set 71374
0 !HISTORY 2024-08-26 [OrionP] Official Update 2024-07
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\6636s01.dat
1 4 -9.25 0 0.5 1 0 0 0 1 0 0 0 1 logo-nintendo-text.dat
1 16 -9.25 0 0.5 1 0 0 0 1 0 0 0 1 logo-nintendo-box.dat
3 16 -51 0 6 -60 0 10 -55 0 6
3 16 -45 0 6 -60 0 10 -51 0 6
3 16 -41 0 6 -60 0 10 -45 0 6
3 16 -39 0 6 -60 0 10 -41 0 6
3 16 -35 0 6 -60 0 10 -39 0 6
3 16 20 0 6 24 0 6 60 0 10
3 16 36.7 0 -1.5 60 0 10 36.7 0 2.5
3 16 60 0 -10 36.7 0 -5.5 31.2 0 -5.5
3 16 4 0 -5 0 0 -10 8 0 -5
3 16 8 0 -5 0 0 -10 12 0 -5
3 16 12 0 -5 0 0 -10 13 0 -5
3 16 13 0 -5 0 0 -10 17 0 -5
3 16 17 0 -5 0 0 -10 20 0 -5
3 16 -1.8 0 -5.5 -7.5 0 -5.5 0 0 -10
3 16 -7.5 0 -5.5 -13 0 -5.5 0 0 -10
3 16 0 0 -10 -19 0 -5 -21 0 -5
3 16 0 0 -10 -21 0 -5 -25 0 -5
3 16 0 0 -10 -25 0 -5 -29 0 -5
3 16 -33 0 -5 -35 0 -5 -60 0 -10
3 16 -35 0 -5 -39 0 -5 -60 0 -10
3 16 -39 0 -5 -41 0 -5 -60 0 -10
3 16 -41 0 -5 -45 0 -5 -60 0 -10
3 16 -45 0 -5 -51 0 -5 -60 0 -10
3 16 -51 0 -5 -55 0 -5 -60 0 -10
4 16 60 0 -10 31.2 0 -5.5 25.7 0 -5.5 0 0 -10
4 16 25.7 0 -5.5 24 0 -5 20 0 -5 0 0 -10
4 16 4 0 -5 0 0 -5 -1.8 0 -5.5 0 0 -10
4 16 -60 0 -10 -55 0 -5 -55 0 6 -60 0 10
4 16 -60 0 10 -35 0 6 20 0 6 60 0 10
4 16 60 0 10 36.7 0 -1.5 36.7 0 -5.5 60 0 -10
4 16 -13 0 -5.5 -15 0 -5 -19 0 -5 0 0 -10
4 16 0 0 -10 -29 0 -5 -33 0 -5 -60 0 -10
4 16 30.97 0 2.47 36.7 0 2.5 60 0 10 24 0 6
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2023-11-17 19:43:33
update with logo primitive
update with primitive
* Holding 'til:
1 4 -9.25 0 0.5 1 0 0 0 1 0 0 0 1 logo-nintendo.dat
gets renamed
1 4 -9.25 0 0.5 1 0 0 0 1 0 0 0 1 logo-nintendo.dat
gets renamed
update due to the update of the prim
2023-11-20 05:58:35
update due to logo-nintendo-box.dat update
2023-11-21 08:12:36
* What is this:
0 !LPE VERTEX -55 0 -5.5
for?
* You should have split it in half:
2 24 -60 0 -10 0 0 -10
2 24 0 0 -10 60 0 -10
to ease triangulation
0 !LPE VERTEX -55 0 -5.5
for?
* You should have split it in half:
2 24 -60 0 -10 0 0 -10
2 24 0 0 -10 60 0 -10
to ease triangulation
update triangulation (Thanks Willy)
2023-11-23 16:38:51
This two tris can ce deleted:
3 16 60 0 10 24 0 6 36.7 0 6
3 16 36.7 0 6 24 0 6 31.2 0 2.5
and the gap closed with the vertex of the quad.
Also, you left blank space in the code.
3 16 60 0 10 24 0 6 36.7 0 6
3 16 36.7 0 6 24 0 6 31.2 0 2.5
and the gap closed with the vertex of the quad.
Also, you left blank space in the code.
Javier the code you posted is not related to this part. What did you try to point to?
Blank lines are fine to group certain sections of the part
Blank lines are fine to group certain sections of the part
2023-11-24 06:25:29
2023-11-24 06:26:18
* My bad. Commented on the wrong part. Javier is indeed right. This:
0 !LPE VERTEX 36.7 0 6
is not needed
0 !LPE VERTEX 36.7 0 6
is not needed
update triangulation (Thanks Javier & Willy)
2023-11-24 08:42:55
2024-05-21 14:22:30
2024-08-23 16:50:01
2024-08-26 02:10:46
Release 2024-07
