File Detail parts/2911.dat

Official File parts/2911.dat

Part Attributes:

File Header:

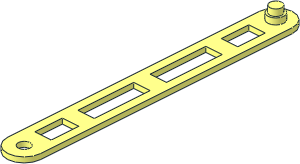

0 ~Monorail Track Points Interior Shover
0 Name: 2911.dat
0 Author: Bernd Broich [bbroich]
0 !LDRAW_ORG Part UPDATE 2024-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CW

0 !HISTORY 2010-07-05 [PTadmin] Official Update 2010-02
0 !HISTORY 2018-02-10 [gaia] Changed thickness to 3 LDU
0 !HISTORY 2020-06-28 [PTadmin] Official Update 2020-01
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02

Show contents

1 16 0 -3.5 76.75 3.5 0 0 0 1 0 0 0 3.5 4-4edge.dat
1 16 0 -3.5 76.75 4.75 0 0 0 1 0 0 0 4.75 4-4edge.dat
1 16 0 -7.25 76.75 3.5 0 0 0 1 0 0 0 3.5 4-4edge.dat
1 16 0 0 -76.75 -10 0 0 0 1 0 0 0 -10 2-4edge.dat
1 16 0 0 -76.75 3.5 0 0 0 1 0 0 0 3.5 4-4edge.dat
1 16 0 0 76.75 10 0 0 0 1 0 0 0 10 2-4edge.dat
1 16 0 0 76.75 4.75 0 0 0 1 0 0 0 4.75 4-4edge.dat
1 16 0 3 -76.75 10 0 0 0 1 0 0 0 -10 2-4edge.dat
1 16 0 3 -76.75 3.5 0 0 0 1 0 0 0 3.5 4-4edge.dat
1 16 0 3 76.75 10 0 0 0 1 0 0 0 10 2-4edge.dat

1 16 0 -3.5 76.75 4.75 0 0 0 3.5 0 0 0 4.75 4-4cyli.dat
1 16 0 -7.25 76.75 3.5 0 0 0 3.75 0 0 0 3.5 4-4cyli.dat
1 16 0 0 -76.75 10 0 0 0 3 0 0 0 -10 2-4cyli.dat
1 16 0 0 76.75 10 0 0 0 3 0 0 0 10 2-4cyli.dat
0 BFC INVERTNEXT
1 16 0 0 -76.75 3.5 0 0 0 3 0 0 0 3.5 4-4cyli.dat

1 16 0 -7.25 76.75 3.5 0 0 0 1 0 0 0 3.5 4-4disc.dat
1 16 0 0 -76.75 3.5 0 0 0 1 0 0 0 3.5 2-4ndis.dat
1 16 0 0 76.75 -4.75 0 0 0 1 0 0 0 -4.75 2-4ndis.dat
1 16 0 3 -76.75 3.5 0 0 0 -1 0 0 0 3.5 2-4ndis.dat
1 16 0 3 76.75 10 0 0 0 -1 0 0 0 10 2-4disc.dat

1 16 0 -3.5 76.75 -0.25 0 0 0 1 0 0 0 -0.25 1-4ring18.dat
1 16 0 -3.5 76.75 -0.25 0 0 0 1 0 0 0 0.25 1-4ring18.dat
1 16 0 -3.5 76.75 -0.5 0 0 0 1 0 0 0 -0.5 1-4ring7.dat
1 16 0 -3.5 76.75 -0.5 0 0 0 1 0 0 0 -0.5 1-4ring8.dat
1 16 0 -3.5 76.75 -0.5 0 0 0 1 0 0 0 0.5 1-4ring7.dat
1 16 0 -3.5 76.75 -0.5 0 0 0 1 0 0 0 0.5 1-4ring8.dat
1 16 0 -3.5 76.75 0.25 0 0 0 1 0 0 0 -0.25 1-4ring18.dat
1 16 0 -3.5 76.75 0.25 0 0 0 1 0 0 0 0.25 1-4ring18.dat
1 16 0 -3.5 76.75 0.5 0 0 0 1 0 0 0 -0.5 1-4ring7.dat
1 16 0 -3.5 76.75 0.5 0 0 0 1 0 0 0 -0.5 1-4ring8.dat
1 16 0 -3.5 76.75 0.5 0 0 0 1 0 0 0 0.5 1-4ring7.dat
1 16 0 -3.5 76.75 0.5 0 0 0 1 0 0 0 0.5 1-4ring8.dat
1 16 0 0 -76.75 -0.5 0 0 0 1 0 0 0 -0.5 1-4ring7.dat
1 16 0 0 -76.75 0.5 0 0 0 1 0 0 0 -0.5 1-4ring7.dat
1 16 0 0 -76.75 1 0 0 0 1 0 0 0 -1 2-4ring4.dat
1 16 0 0 -76.75 5 0 0 0 1 0 0 0 -5 2-4ring1.dat
1 16 0 0 76.75 -0.25 0 0 0 1 0 0 0 0.25 1-4ring19.dat
1 16 0 0 76.75 0.25 0 0 0 1 0 0 0 0.25 1-4ring19.dat
1 16 0 0 76.75 5 0 0 0 1 0 0 0 5 2-4ring1.dat
1 16 0 3 -76.75 -0.5 0 0 0 -1 0 0 0 -0.5 1-4ring7.dat
1 16 0 3 -76.75 0.5 0 0 0 -1 0 0 0 -0.5 1-4ring7.dat
1 16 0 3 -76.75 1 0 0 0 -1 0 0 0 -1 2-4ring4.dat
1 16 0 3 -76.75 5 0 0 0 -1 0 0 0 -5 2-4ring1.dat

0 BFC INVERTNEXT
1 16 0 0 22 5 0 0 0 3 0 0 0 17 box4.dat
0 BFC INVERTNEXT
1 16 0 0 56.875 5 0 0 0 3 0 0 0 8.375 box4.dat
0 BFC INVERTNEXT
1 16 0 0 -22 5 0 0 0 3 0 0 0 17 box4.dat
0 BFC INVERTNEXT
1 16 0 0 -56.875 5 0 0 0 3 0 0 0 8.375 box4.dat

2 24 -10 0 76.75 -10 0 -76.75
2 24 -10 3 76.75 -10 3 -76.75
2 24 10 0 76.75 10 0 -76.75
2 24 10 3 76.75 10 3 -76.75

4 16 -10 0 76.75 -10 0 -76.75 -10 3 -76.75 -10 3 76.75
4 16 -10 0 76.75 -5 0 76.75 -5 0 -76.75 -10 0 -76.75
4 16 -10 3 76.75 -10 3 -76.75 -5 3 -76.75 -5 3 76.75
4 16 -5 0 -73.25 -3.5 0 -73.25 -3.5 0 -76.75 -5 0 -76.75
4 16 -5 0 72 -5 0 76.75 -4.75 0 76.75 -4.75 0 72
4 16 -5 3 -73.25 -5 3 -76.75 -3.5 3 -76.75 -3.5 3 -73.25
4 16 10 0 76.75 10 0 -76.75 5 0 -76.75 5 0 76.75
4 16 10 0 76.75 10 3 76.75 10 3 -76.75 10 0 -76.75
4 16 10 3 76.75 5 3 76.75 5 3 -76.75 10 3 -76.75

4 16 5 0 -48.5 -5 0 -48.5 -5 0 -39 5 0 -39
4 16 5 0 -73.25 -5 0 -73.25 -5 0 -65.25 5 0 -65.25
4 16 5 0 -73.25 5 0 -76.75 3.5 0 -76.75 3.5 0 -73.25
4 16 5 0 48.5 5 0 39 -5 0 39 -5 0 48.5
4 16 5 0 5 5 0 -5 -5 0 -5 -5 0 5
4 16 5 0 72 4.75 0 72 4.75 0 76.75 5 0 76.75
4 16 5 0 72 5 0 65.25 -5 0 65.25 -5 0 72
4 16 5 3 -48.5 5 3 -39 -5 3 -39 -5 3 -48.5
4 16 5 3 -73.25 3.5 3 -73.25 3.5 3 -76.75 5 3 -76.75
4 16 5 3 -73.25 5 3 -65.25 -5 3 -65.25 -5 3 -73.25
4 16 5 3 48.5 -5 3 48.5 -5 3 39 5 3 39
4 16 5 3 5 -5 3 5 -5 3 -5 5 3 -5
4 16 5 3 76.75 -5 3 76.75 -5 3 65.25 5 3 65.25

Status:

Official

This part has the following errors

All parts must be BFC CERTIFY CCW

Unofficial parents

Part Events:

Archived Part Events:

Orion Pobursky [OrionP]

initially submitted the part.

2024-03-23 00:48:23

Update ring primitives via script. Do not hold.

Orion Pobursky [OrionP]

posted a vote of Admin Fast Track.

2024-03-23 00:48:23

Orion Pobursky [OrionP]

2024-03-24 17:25:00

Release 2024-02
