Official File parts/s/65886s01.dat
File Header:

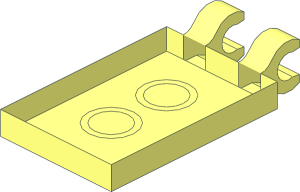

0 ~Tile 2 x 3 with Clips Horizontal (Thick C-Clips) without Tab between Clips without Top Surface
0 Name: s\65886s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Subpart UPDATE 2024-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-05-28 [OrionP] Official Update 2024-04
Show contents
0 // top surface (used for patterning)
0 // 4 16 -20 0 30 -20 0 -30 20 0 -30 20 0 30
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\65886s02.dat
1 16 0 4 30 6 0 0 0 0 4 0 -1 0 rect.dat
4 16 6 8 30 6 0 30 6 -0.2 31.4 6 8 34.86
4 16 6 -4.3256 35.8035 6 8.3256 35.8035 6 8 34.86 6 -0.9616 32.7088
3 16 6 -0.2 31.4 6 -0.9616 32.7088 6 8 34.86
4 16 -6 -0.2 31.4 -6 0 30 -6 8 30 -6 8 34.86
4 16 -6 8 34.86 -6 8.3256 35.8035 -6 -4.3256 35.8035 -6 -0.9616 32.7088
3 16 -6 -0.9616 32.7088 -6 -0.2 31.4 -6 8 34.86
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Philippe Hurbain
Licensed under CC BY 4.0
