File Detail parts/s/3567s02.dat

Official File parts/s/3567s02.dat

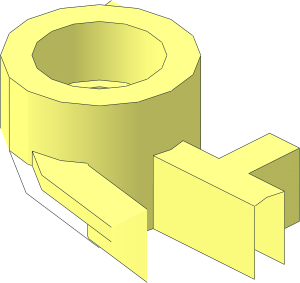

~Tile 2 x 2 Round Inverted with Groove - Quarter

File Header:

0 ~Tile  2 x  2 Round Inverted with Groove - Quarter
0 Name: s\3567s02.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Subpart UPDATE 2024-11
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-12-30 [OrionP] Official Update 2024-11

Show contents

1 16 -10 1 -10 -1 0 0 0 1.25 0 0 0 -1 stud6a.dat
1 16 -10 0 -10 4 0 0 0 1 0 0 0 4 4-4edge.dat
1 16 -10 0 -10 0 0 -.8 0 1 0 .8 0 0 3-16ring4.dat
1 16 -10 0 -10 .8 0 0 0 1 0 0 0 -.8 3-16ring4.dat
1 16 -10 0 -10 .8 0 0 0 1 0 0 0 .8 1-4ring4.dat
1 16 -10 0 -10 -4 0 0 0 1 0 0 0 -4 5-16chrd.dat
3 16 -8.7754 0 -12.9565 -8.837 0 -12.9687 -8.4692 0 -13.6956
4 16 -8.4692 0 -13.6956 -8.837 0 -12.9687 -11.3136 0 -11.3136 -14 0 -10
4 16 -12.9687 0 -8.837 -12.9565 0 -8.7754 -13.6956 0 -8.4692 -14 0 -10
3 16 -12.9687 0 -8.837 -14 0 -10 -11.3136 0 -11.3136
4 16 -12.9687 5 -8.837 -12.9687 0 -8.837 -11.3136 0 -11.3136 -11.3136 5 -11.3136
4 16 -8.837 5 -12.9687 -11.3136 5 -11.3136 -11.3136 0 -11.3136 -8.837 0 -12.9687
2 24 -11.3136 0 -11.3136 -8.837 0 -12.9687
2 24 -11.3136 0 -11.3136 -12.9687 0 -8.837
2 24 -12.9687 5 -8.837 -11.3136 5 -11.3136
2 24 -11.3136 5 -11.3136 -8.837 5 -12.9687
0 BFC INVERTNEXT
1 16 -10 0 -10 3.2 0 0 0 5 0 0 0 3.2 7-16cylo.dat
0 BFC INVERTNEXT
1 16 -10 0 -10 3.2 0 0 0 5 0 0 0 -3.2 3-16cylo.dat
4 16 -8.77536 5 -12.95648 -8.837 5 -12.9687 -8.837 0 -12.9687 -8.7754 0 -12.9565
4 16 -12.9565 0 -8.7754 -12.9687 0 -8.837 -12.9687 5 -8.837 -12.95648 5 -8.77536
2 24 -12.9687 0 -8.837 -12.9565 0 -8.7754
2 24 -12.9687 5 -8.837 -12.95648 5 -8.77536
2 24 -8.837 0 -12.9687 -8.7754 0 -12.9565
2 24 -8.837 5 -12.9687 -8.77536 5 -12.95648
2 24 -8.837 0 -12.9687 -8.837 5 -12.9687
2 24 -12.9687 5 -8.837 -12.9687 0 -8.837
1 16 -10 1 -10 6 0 0 0 4 0 0 0 -6 1-8cyli.dat
1 16 -10 1 -10 6 0 0 0 4 0 0 0 6 3-8cyli.dat
1 16 -10 5 -10 6 0 0 0 1 0 0 0 -6 1-8edge.dat
1 16 -10 5 -10 6 0 0 0 1 0 0 0 6 3-8edge.dat
2 24 -6.3442 0 -14.6347 -6.3442 5 -14.6347
4 16 -5.7574 1 -14.2426 -6.3442 1 -14.6347 -6.3442 5 -14.6347 -5.7574 5 -14.2426
2 24 -14.6347 0 -6.3442 -14.6347 5 -6.3442
4 16 -14.2426 5 -5.7574 -14.6347 5 -6.3442 -14.6347 1 -6.3442 -14.2426 1 -5.7574
2 24 -14.6347 5 -6.3442 -14.2426 5 -5.7574
2 24 -6.3442 5 -14.6347 -5.7574 5 -14.2426

0 // Fillet
1 16 -4 5 -10 -1.25 0 0 0 -5 0 0 0 1.25 boxjcyl4.dat
1 16 4 5 -10 1.25 0 0 0 -5 0 0 0 1.25 boxjcyl4.dat
1 16 0 2.5 -8.75 -1.25 0 0 0 0 -2.5 0 4.25 0 box4-2p.dat
1 16 0 2.5 -11.25 4 0 0 0 0 -2.5 0 1 0 rect2p.dat
4 16 4 0 -10 -4 0 -10 -4 0 -11.25 4 0 -11.25
4 16 1.25 0 -8.75 -1.25 0 -8.75 -4 0 -10 4 0 -10
3 16 4 0 -10 4 0 -8.75 1.25 0 -8.75
3 16 -4 0 -10 -1.25 0 -8.75 -4 0 -8.75
1 16 -2.625 2.5 -8.75 -1.375 0 0 0 0 -2.5 0 -1 0 rect2p.dat
1 16 2.625 2.5 -8.75 1.375 0 0 0 0 2.5 0 -1 0 rect2p.dat

0 // Outer Wall
0 BFC INVERTNEXT
1 16 0 5 0 -16 0 0 0 -5 0 0 0 -16 1-16cylo.dat
0 BFC INVERTNEXT
1 16 0 5 0 0 0 -16 0 -5 0 -16 0 0 1-16cylo.dat
4 16 -6.1232 5 -14.7824 -6.3442 5 -14.6347 -6.3442 0 -14.6347 -6.1232 0 -14.7824
4 16 -14.7824 5 -6.1232 -14.7824 0 -6.1232 -14.6347 0 -6.3442 -14.6347 5 -6.3442
2 24 -14.7824 0 -6.1232 -14.6347 0 -6.3442
2 24 -14.7824 5 -6.1232 -14.6347 5 -6.3442
2 24 -6.3442 0 -14.6347 -6.1232 0 -14.7824
2 24 -6.3442 5 -14.6347 -6.1232 5 -14.7824

1 16 0 0 0 0 0 -16 0 1 0 -16 0 0 1-16tang.dat
1 16 0 0 0 -16 0 0 0 1 0 0 0 -16 1-16tang.dat
1 16 0 0 0 0 0 -19 0 1 0 -19 0 0 1-16chrd.dat
1 16 0 0 0 -19 0 0 0 1 0 0 0 -19 1-16chrd.dat
4 16 -6.1232 0 -14.7824 -6.3442 0 -14.6347 -9.6892 0 -15.9382 -7.2713 0 -17.5541
4 16 -3.1824 0 -16 -6.1232 0 -14.7824 -7.2713 0 -17.5541 0 0 -19
3 16 0 0 -16 -3.1824 0 -16 0 0 -19
3 16 -16 0 0 -19 0 0 -16 0 -3.1824
4 16 -16 0 -3.1824 -19 0 0 -17.5541 0 -7.2713 -14.7824 0 -6.1232
4 16 -14.6347 0 -6.3442 -14.7824 0 -6.1232 -17.5541 0 -7.2713 -15.9382 0 -9.6892
2 24 -14.6347 0 -6.3442 -15.5434 0 -7.7038
2 24 -15.9382 0 -9.6892 -15.5434 0 -7.7038
2 24 -7.7038 0 -15.5434 -6.3442 0 -14.6347
2 24 -7.7038 0 -15.5434 -9.6892 0 -15.9382

1 16 0 1 0 -19 0 0 0 -1 0 0 0 -19 1-16cylo.dat
1 16 0 1 0 0 0 -19 0 -1 0 -19 0 0 1-16cylo.dat
2 24 -9.6892 0 -15.9382 -9.6892 1 -15.9382
2 24 -15.9382 0 -9.6892 -15.9382 1 -9.6892
4 16 -7.2713 0 -17.5541 -9.6892 0 -15.9382 -9.6892 1 -15.9382 -7.2713 1 -17.5541
4 16 -15.9382 1 -9.6892 -15.9382 0 -9.6892 -17.5541 0 -7.2713 -17.5541 1 -7.2713
2 24 -17.5541 0 -7.2713 -15.9382 0 -9.6892
2 24 -15.9382 1 -9.6892 -17.5541 1 -7.2713
2 24 -9.6892 0 -15.9382 -7.2713 0 -17.5541
2 24 -7.2713 1 -17.5541 -9.6892 1 -15.9382

2 24 -10 1 -16 -9.6892 1 -15.9382
2 24 -11.9387 1 -15.6145 -10 1 -16
2 24 -16 1 -10 -15.6145 1 -11.9387
2 24 -16 1 -10 -15.9382 1 -9.6892

1 16 0 1 0 -20 0 0 0 -1 0 0 0 -20 1-16edge.dat
1 16 0 1 0 0 0 -20 0 -1 0 -20 0 0 1-16edge.dat
2 24 -11.9387 1 -15.6145 -7.654 1 -18.478
2 24 -15.6145 1 -11.9387 -18.478 1 -7.654

Status:

Official
