Official File parts/24204.dat
Part Attributes:
File Header:

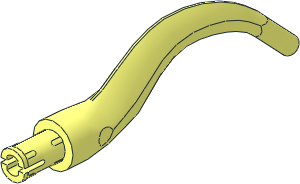

0 Animal Tail Bladed with Pin (Perpendicular Slot) and Bar Tip
0 Name: 24204.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2025-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP Tip bar at Y=7.3 z=137.2 angle 47�
0 BFC CERTIFY CCW
0 !KEYWORDS Appendage, Branch, Limb, Plant
0 !HISTORY 2023-12-05 {LEGO Digital Designer} Original part shape
0 !HISTORY 2023-12-05 [Philo] File preparation for LDraw Parts Tracker
0 !HISTORY 2025-03-30 [OrionP] Official Update 2025-03
Show contents
1 16 0 0 20 1 0 0 0 0 -1 0 1 0 connect10.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\24204s01.dat
1 16 0 0 20 0.70711 0 0.70711 0.70711 0 -0.70711 0 1 0 fric.dat
1 16 0 0 20 -0.70711 0 0.70711 0.70711 0 0.70711 0 1 0 fric.dat
1 16 0 0 20 -0.70711 0 -0.70711 -0.70711 0 0.70711 0 1 0 fric.dat
1 16 0 0 20 0.70711 0 -0.70711 -0.70711 0 -0.70711 0 1 0 fric.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2023-12-05 14:36:47
2023-12-05 14:38:07
Moved tip to main part!
this condline does not match the surfaces
5 24 -1.994 -2.339 65.111 -0.5 3.6543 61.006 -0.5 -0.877 66.344 -2.4056 2.1298 59.9145
ALso
I guess you forgot to move the condlines to the subfile
5 24 -1.994 -2.339 65.111 -0.5 3.6543 61.006 -0.5 -0.877 66.344 -2.4056 2.1298 59.9145
ALso
I guess you forgot to move the condlines to the subfile
fully regenerated condlines
condlines are now duplicated, it contains the cond lines of the subfile
Fixed condlines. I understood what happened: I started from LDPE part review to make sure I had the latest PT version, added condlines to subfile and save it. But the main part was still linked to the review version without condlines so edger2 created condlines everywhere...
Rounded with Datheader.
2025-03-21 10:57:24
2025-03-21 16:00:39
Should use connect10 vice confric12
2025-03-21 17:42:34
Also need to do 5156 which is the standard pin (vice square hole) version. See the RB link.
- Not sure it's worth getting that far in details (5156 could have been made a simple alias imho, no functionnal difference)
- Not sure about descriptions
- Not sure about descriptions
2025-03-22 13:27:28
2025-03-22 21:59:14
2025-03-22 23:46:57
2025-03-30 05:48:59
Release 2025-03
Creative Commons Attribution License information
This part is copyright © Philippe Hurbain
Licensed under CC BY 4.0
