File Detail parts/s/75904s01.dat

Official File parts/s/75904s01.dat

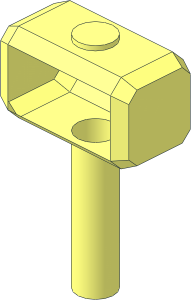

~Minifig Sledgehammer without Patternable Faces

File Header:

0 ~Minifig Sledgehammer without Patternable Faces
0 Name: s\75904s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Subpart UPDATE 2024-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2023-12-06 [Philo] Subparted from C3POwen 75904
0 !HISTORY 2024-06-30 [OrionP] Official Update 2024-05

Show contents

1 16 0 22 0 4 0 0 0 -30 0 0 0 -4 4-4cylc.dat
1 16 0 -8 0 4 0 0 0 -1 0 0 0 -4 4-4ndis.dat
4 16 -12 -8 6 -4 -8 4 -4 -8 -4 -12 -8 -6
4 16 12 -8 6 4 -8 4 -4 -8 4 -12 -8 6
4 16 12 -8 -6 4 -8 -4 4 -8 4 12 -8 6
4 16 -12 -8 -6 -4 -8 -4 4 -8 -4 12 -8 -6
2 24 -12 -8 -6 -12 -8 6
2 24 12 -8 6 12 -8 -6
2 24 -12 -8 -6 -15 -9.53 -5.3
4 16 -12 -8 6 -12 -8 -6 -15 -9.53 -5.3 -15 -9.53 5.3
2 24 -15 -9.53 5.3 -12 -8 6
4 16 -12 -10.5 8.5 -12 -8 6 -15 -9.53 5.3 -15 -11.4 7.2
1 16 0 -9.25 7.25 -12 0 0 0 -1 -1.25 0 0 1.25 rect.dat
1 16 0 -9.25 -7.25 -12 0 0 0 -1 1.25 0 0 1.25 rect.dat
1 16 0 -24.25 7.25 -12 0 0 0 1 -1.25 0 0 -1.25 rect.dat
1 16 0 -24.25 -7.25 -12 0 0 0 1 1.25 0 0 -1.25 rect.dat
4 16 15 -9.53 5.3 12 -8 6 12 -10.5 8.5 15 -11.4 7.2
2 24 15 -9.53 5.3 12 -8 6
4 16 15 -9.53 5.3 15 -9.53 -5.3 12 -8 -6 12 -8 6
2 24 15 -9.53 -5.3 12 -8 -6
4 16 12 -10.5 -8.5 12 -8 -6 15 -9.53 -5.3 15 -11.4 -7.2
4 16 -12 -10.5 -8.5 -15 -11.4 -7.2 -15 -9.53 -5.3 -12 -8 -6
2 24 -15 -9.53 -5.3 -15 -9.53 5.3
2 24 -15 -9.53 5.3 -15 -11.4 7.2
2 24 -15 -11.4 7.2 -12 -10.5 8.5
2 24 12 -10.5 8.5 15 -11.4 7.2
2 24 15 -11.4 7.2 15 -9.53 5.3
2 24 15 -9.53 5.3 15 -9.53 -5.3
2 24 15 -9.53 -5.3 15 -11.4 -7.2
2 24 15 -11.4 -7.2 12 -10.5 -8.5
2 24 -12 -10.5 -8.5 -15 -11.4 -7.2
2 24 -15 -11.4 -7.2 -15 -9.53 -5.3
4 16 -15 -22 7.2 -12 -23 8.5 -12 -10.5 8.5 -15 -11.4 7.2
4 16 -12 -23 8.5 -15 -22 7.2 -15 -24 5.3 -12 -25.5 6
4 16 -12 -25.5 -6 -12 -25.5 6 -15 -24 5.3 -15 -24 -5.3
4 16 -15 -24 -5.3 -15 -22 -7.2 -12 -23 -8.5 -12 -25.5 -6
4 16 -15 -11.4 -7.2 -12 -10.5 -8.5 -12 -23 -8.5 -15 -22 -7.2
2 24 -15 -22 7.2 -12 -23 8.5
2 24 -15 -22 7.2 -15 -24 5.3
2 24 -15 -24 5.3 -12 -25.5 6
2 24 -15 -24 5.3 -15 -24 -5.3
2 24 -12 -25.5 -6 -12 -25.5 6
2 24 -15 -24 -5.3 -12 -25.5 -6
2 24 -15 -24 -5.3 -15 -22 -7.2
2 24 -15 -22 -7.2 -12 -23 -8.5
4 16 15 -11.4 7.2 12 -10.5 8.5 12 -23 8.5 15 -22 7.2
4 16 12 -23 8.5 12 -25.5 6 15 -24 5.3 15 -22 7.2
4 16 15 -24 -5.3 15 -24 5.3 12 -25.5 6 12 -25.5 -6
4 16 15 -24 -5.3 12 -25.5 -6 12 -23 -8.5 15 -22 -7.2
4 16 15 -22 -7.2 12 -23 -8.5 12 -10.5 -8.5 15 -11.4 -7.2
2 24 12 -23 8.5 15 -22 7.2
2 24 12 -25.5 6 15 -24 5.3
2 24 15 -24 5.3 15 -22 7.2
2 24 15 -24 -5.3 15 -24 5.3
2 24 12 -25.5 6 12 -25.5 -6
2 24 12 -25.5 -6 15 -24 -5.3
2 24 12 -23 -8.5 15 -22 -7.2
2 24 15 -22 -7.2 15 -24 -5.3
4 16 -15 -11.4 -7.2 -15 -11.4 7.2 -15 -9.53 5.3 -15 -9.53 -5.3
1 16 -15 -16.7 0 0 1 0 5.3 0 0 0 0 -7.2 rect2p.dat
4 16 -15 -22 7.2 -15 -22 -7.2 -15 -24 -5.3 -15 -24 5.3
4 16 15 -11.4 7.2 15 -11.4 -7.2 15 -9.53 -5.3 15 -9.53 5.3
1 16 15 -16.7 0 0 -1 0 5.3 0 0 0 0 7.2 rect2p.dat
4 16 15 -22 -7.2 15 -22 7.2 15 -24 5.3 15 -24 -5.3
2 24 -12 -10.5 8.5 -12 -23 8.5
2 24 12 -23 8.5 12 -10.5 8.5
2 24 12 -10.5 -8.5 12 -23 -8.5
2 24 -12 -23 -8.5 -12 -10.5 -8.5
4 16 -12 -25.5 -6 -4 -25.5 -4 -4 -25.5 4 -12 -25.5 6
4 16 -12 -25.5 6 -4 -25.5 4 4 -25.5 4 12 -25.5 6
4 16 12 -25.5 6 4 -25.5 4 4 -25.5 -4 12 -25.5 -6
4 16 12 -25.5 -6 4 -25.5 -4 -4 -25.5 -4 -12 -25.5 -6
1 16 0 -25.5 0 4 0 0 0 1 0 0 0 4 4-4ndis.dat
1 16 0 -26.5 0 4 0 0 0 1 0 0 0 4 4-4cylc.dat

Status:

Official

This part has the following warnings

Line 45, quad is not coplanar (angle 1.8239374317583)

Line text: 4 16 -12 -23 8.5 -15 -22 7.2 -15 -24 5.3 -12 -25.5 6
Line 47, quad is not coplanar (angle 1.8239374317587)

Line text: 4 16 -15 -24 -5.3 -15 -22 -7.2 -12 -23 -8.5 -12 -25.5 -6
Line 58, quad is not coplanar (angle 1.8239374317583)

Line text: 4 16 12 -23 8.5 12 -25.5 6 15 -24 5.3 15 -22 7.2
Line 60, quad is not coplanar (angle 1.8239374317583)

Line text: 4 16 15 -24 -5.3 12 -25.5 -6 12 -23 -8.5 15 -22 -7.2
