Unofficial File parts/3968.dat
Part Attributes:
File Header:

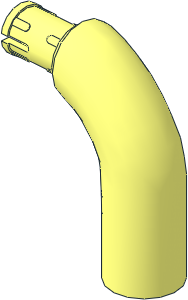

0 Figure Arm Bent Long with Peghole and Friction Pin
0 Name: 3968.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2023-10-04 {LEGO Instructions App} Original part shape
0 !HISTORY 2023-12-11 [Philo] File preparation for LDraw Parts Tracker
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
Show contents
1 16 0 0 0 0 1 0 0 0 -1 -1 0 0 confric.dat
1 16 0 0 0 0 1 0 0 0 8 8 0 0 4-4edge.dat
1 16 0 0 0 0 1 0 0 0 4 4 0 0 4-4edge.dat
1 16 20 40 0 1 0 0 0 -1 0 0 0 1 connhol3.dat
1 16 20 50 0 0.75 0 0 0 -1 0 0 0 0.75 4-4ring12.dat
1 16 20 50 0 9.75 0 0 0 -1 0 0 0 9.75 4-4edge.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3968s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\3968s01.dat
5 24 7.392 -7.779 0 11.952 -4.957 0 11.579 -4.17 3.964 11.579 -4.17 -3.964
5 24 11.952 -4.957 0 16.374 -1.575 0 15.866 -0.861 3.964 15.866 -0.861 -3.964
5 24 22.337 12.147 0 19.466 10.044 0 19.363 10.072 -1.386 19.363 10.072 1.386
5 24 20.788 2.928 0 24.359 7.13 0 23.583 7.655 3.964 23.583 7.655 -3.964
5 24 0 -9.75 0 2.627 -9.404 0 0 -9.008 3.731 0 -9.008 -3.731
5 24 24.364 17.999 0 22.337 12.147 0 22.183 12.288 1.589 22.183 12.288 -1.589
5 24 24.359 7.13 0 27.57 12.427 0 23.583 7.655 3.964 23.583 7.655 -3.964
5 24 27.57 12.427 0 29.172 17.526 0 26.53 12.855 -3.964 26.53 12.855 3.964
5 24 16.374 -1.575 0 20.788 2.928 0 20.139 3.54 3.964 20.139 3.54 -3.964
5 24 25.25 27.7 0 24.364 17.999 0 24.057 18.064 -1.798 24.057 18.064 1.798
5 24 2.627 -9.404 0 7.392 -7.779 0 7.189 -6.928 3.964 7.189 -6.928 -3.964
5 24 29.172 17.526 0 29.75 22.5 0 29.008 22.5 -3.7313 29.008 22.5 3.7313
5 24 19.466 10.044 0 0 9.883 0 19.363 10.072 -1.386 19.363 10.072 1.386
5 24 29.75 22.5 0 29.75 50 0 29.008 50 3.731 29.008 50 -3.731
Status:
Needs 1 More Vote (CN)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
| User | Vote |
|---|---|
| GeraldLasser | Certify |
Official parents and subparts
Part Events:
2023-12-11 14:42:07
Update ring primitives via script. This will not reset the vote status of the part.
2024-09-19 21:45:42
Creative Commons Attribution License information
This part is copyright © Philippe Hurbain
Licensed under CC BY 4.0
