Unofficial File parts/s/6177973ss02.dat
File Header:

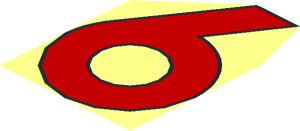

0 ~Sticker 0.8 x 7.8 with Black "44 Mercedes F1 W07 Hybrid 6" on Grey Background - Red Number 6 with Partial Outerbox
0 Name: s\6177973ss02.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP Exact dimensions X = 6.9; Z = 10
0 BFC CERTIFY CCW
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
Show contents
0 // Primitives
1 16 0 0 -1.55 1.5 0 0 0 1 0 0 0 1.5 4-4disc.dat
1 0 0 0 -1.55 .15 0 0 0 1 0 0 0 .15 4-4ring10.dat
1 4 0 0 -1.55 1.65 0 0 0 1 0 0 0 1.65 2-4ndis.dat
1 4 0 0 -1.55 1.65 0 0 0 1 0 0 0 -1.65 2-4ring1.dat
1 4 0 0 -1.55 3.3 0 0 0 1 0 0 0 3.3 48\11-48chrd.dat
1 4 0 0 -1.55 -3.3 0 0 0 1 0 0 0 3.3 48\1-12chrd.dat
1 0 0 0 -1.55 .15 0 0 0 1 0 0 0 .15 48\11-48ring22.dat
1 0 0 0 -1.55 -.15 0 0 0 1 0 0 0 .15 48\1-12ring22.dat
1 0 0 0 -1.55 .15 0 0 0 1 0 0 0 -.15 2-4ring22.dat
1 16 0 0 -1.55 3.45 0 0 0 1 0 0 0 3.45 48\11-48ndis.dat
1 16 0 0 -1.55 -3.45 0 0 0 1 0 0 0 3.45 48\1-12ndis.dat
1 16 0 0 -1.55 3.45 0 0 0 1 0 0 0 -3.45 2-4ndis.dat
0 // Black faces
0 // Red faces
0 // Neutral faces
3 16 .1725 0 5 -3.45 0 1.9 -2.9877 0 .175
4 0 .1725 0 5 .2533 0 4.85 2.1757 0 4.85 2.4495 0 5
4 0 .2533 0 4.85 .1725 0 5 -2.9877 0 .175 -2.8578 0 .1
3 0 .1875 0 1.7377 .43065 0 1.72162 .450225 0 1.87033
4 0 2.4495 0 5 2.1757 0 4.85 .1875 0 1.7377 .450225 0 1.87033
3 16 2.4495 0 5 .450225 0 1.87033 3.45 0 1.9
4 4 2.1757 0 4.85 .2533 0 4.85 -2.8578 0 .1 .1875 0 1.7377
4 4 -2.8578 0 .1 -3.3 0 -1.55 -1.65 0 -1.55 -1.65 0 .1
4 4 .1875 0 1.7377 -2.8578 0 .1 -1.65 0 .1 .43065 0 1.72162
3 4 .43065 0 1.72162 -1.65 0 .1 0 0 .1
3 4 .43065 0 1.72162 0 0 .1 1.65 0 .1
3 4 .43065 0 1.72162 1.65 0 .1 3.3 0 -1.55
3 4 3.3 0 -1.55 1.65 0 .1 1.65 0 -1.55
Status:
Needs 1 More Vote (CN)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
-
Has uncertified subfiles
This part has the following errors
-
Decimal precision exceeds 5 significant placesLine text: 4 0 2.4495 0 5 2.1757 0 4.85 .1875 0 1.7377 .450225 0 1.87033
-
Decimal precision exceeds 5 significant placesLine text: 3 16 2.4495 0 5 .450225 0 1.87033 3.45 0 1.9
This part has the following warnings
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 3 0 .1875 0 1.7377 .43065 0 1.72162 .450225 0 1.87033
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 4 4 .1875 0 1.7377 -2.8578 0 .1 -1.65 0 .1 .43065 0 1.72162
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 3 4 .43065 0 1.72162 -1.65 0 .1 0 0 .1
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 3 4 .43065 0 1.72162 0 0 .1 1.65 0 .1
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 3 4 .43065 0 1.72162 1.65 0 .1 3.3 0 -1.55
- Number in description may need a leading space
Current Votes:
| User | Vote |
|---|---|
| RainbowDolphin | Certify |
Official parents and subparts
Part Events:
2023-12-11 18:41:51
Update ring primitives via script. This will not reset the vote status of the part.
2024-09-23 22:10:48
