Official File parts/29304.dat
Part Attributes:
File Header:

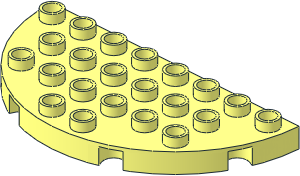

0 Duplo Plate 4 x 8 Round Semicircle
0 Name: 29304.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2022-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Plate
0 !HISTORY 2022-05-07 [PTadmin] Official Update 2022-03
Show contents
1 16 60 0 -60 1 0 0 0 2.75 0 0 0 1 stug7-3x3.dat
1 16 -60 0 -60 1 0 0 0 2.75 0 0 0 1 stug7-3x3.dat
1 16 0 0 -140 1 0 0 0 2.75 0 0 0 1 stug7-1x2.dat
1 16 140 0 -20 1 0 0 0 2.75 0 0 0 1 stud7.dat
1 16 -140 0 -20 1 0 0 0 2.75 0 0 0 1 stud7.dat
1 16 0 0 0 160 0 0 0 1 0 0 0 -160 48\2-4edge.dat
1 16 0 0 0 160 0 0 0 1 0 0 0 -160 48\2-4chrd.dat
1 16 0 12 0 0 0 160 -12 0 0 0 -1 0 rect.dat
1 16 0 0 0 160 0 0 0 4 0 0 0 -160 48\2-4cyli.dat
1 16 0 14 -4 -155.7364 0 0 0 0 10 0 1 0 rect.dat
1 16 155.2009 14 -12.18105 0.5355 1 0 0 0 10 8.18105 0 0 rect2p.dat
4 16 155.6568 4 -20.4926 151.6695 4 -40.5013 148.1642 4 -47.7955 155.7364 4 -4
1 16 -155.2009 14 -12.18105 0.5355 -1 0 0 0 10 -8.18105 0 0 rect2p.dat
4 16 -148.1642 4 -47.7955 -151.6695 4 -40.5013 -155.6568 4 -20.4926 -155.7364 4 -4
0 BFC INVERTNEXT
1 16 0 4 0 154.6654 0 -20.36209 0 20 0 -20.36209 0 -154.6654 48\1-48cylo.dat
0 BFC INVERTNEXT
1 16 0 4 0 -154.6654 0 20.36209 0 20 0 -20.36209 0 -154.6654 48\1-48cylo.dat
4 16 -160 24 0 160 24 0 155.7364 24 -4 -155.7364 24 -4
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\29304s01.dat
1 16 0 0 0 0 0 -1 0 1 0 -1 0 0 s\29304s01.dat
0 BFC INVERTNEXT
1 16 0 4 0 0 0 156 0 20 0 -156 0 0 48\1-24cylo.dat
1 16 0 4 0 0 0 156 0 -1 0 -156 0 0 48\1-24chrd.dat
3 16 33.8771 4 -105.2179 105.2179 4 -33.8771 110.3041 4 -110.3067
4 16 148.1642 4 -47.7955 144.5922 4 -48.9134 105.2179 4 -33.8771 155.7364 4 -4
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\29304s01.dat
1 16 0 0 0 0 0 1 0 1 0 -1 0 0 s\29304s01.dat
0 BFC INVERTNEXT
1 16 0 4 0 0 0 -156 0 20 0 -156 0 0 48\1-24cylo.dat
1 16 0 4 0 0 0 -156 0 -1 0 -156 0 0 48\1-24chrd.dat
3 16 -105.2179 4 -33.8771 -33.8771 4 -105.2179 -110.3041 4 -110.3067
4 16 -105.2179 4 -33.8771 -144.5922 4 -48.9134 -148.1642 4 -47.7955 -155.7364 4 -4
4 16 47.7955 4 -148.1642 40.3708 4 -150.678 0 4 -156 48.9134 4 -144.5922
4 16 0 4 -156 -40.3708 4 -150.678 -47.7955 4 -148.1642 -48.9134 4 -144.5922
3 16 0 4 -156 -48.9134 4 -144.5922 48.9134 4 -144.5922
4 16 -33.8771 4 -105.2179 33.8771 4 -105.2179 48.9134 4 -144.5922 -48.9134 4 -144.5922
4 16 33.8771 4 -105.2179 -33.8771 4 -105.2179 -105.2179 4 -33.8771 105.2179 4 -33.8771
4 16 155.7364 4 -4 105.2179 4 -33.8771 -105.2179 4 -33.8771 -155.7364 4 -4
1 16 -40 4 -40 1 0 0 0 -5 0 0 0 1 stud8.dat
1 16 -80 4 -80 1 0 0 0 -5 0 0 0 1 stud8.dat
1 16 0 4 -80 1 0 0 0 -5 0 0 0 1 stud8.dat
1 16 0 4 -34.2 0 0 1.5 0 8 0 -30.2 0 0 box3u5p.dat
2 24 -1.5 12 -64.2983 0 12 -64
2 24 -1.5 12 -64.2983 -1.5 4 -64.2983
2 24 1.5 12 -64.2983 0 12 -64
2 24 1.5 12 -64.2983 1.5 4 -64.2983
1 16 0 4 -125.8 0 0 1.5 0 8 0 30.2 0 0 box3u8p.dat
2 24 -1.5 12 -95.7017 0 12 -96
2 24 -1.5 12 -95.7017 -1.5 4 -95.7017
2 24 1.5 12 -95.7017 0 12 -96
2 24 1.5 12 -95.7017 1.5 4 -95.7017
2 24 -1.5 12 -155.9011 -1.5 4 -155.9011
2 24 1.5 12 -155.9011 1.5 4 -155.9011
2 24 -1.5 12 -155.9011 0 12 -156
2 24 1.5 12 -155.9011 0 12 -156
1 16 40 4 -40 1 0 0 0 -5 0 0 0 1 stud8.dat
1 16 80 4 -80 1 0 0 0 -5 0 0 0 1 stud8.dat
1 16 -80 4 -34.2 0 0 1.5 0 8 0 -30.2 0 0 box3u5p.dat
2 24 -81.5 12 -64.2983 -80 12 -64
2 24 -81.5 12 -64.2983 -81.5 4 -64.2983
2 24 -78.5 12 -64.2983 -80 12 -64
2 24 -78.5 12 -64.2983 -78.5 4 -64.2983
1 16 80 4 -34.2 0 0 -1.5 0 8 0 -30.2 0 0 box3u5p.dat
2 24 81.5 12 -64.2983 80 12 -64
2 24 81.5 12 -64.2983 81.5 4 -64.2983
2 24 78.5 12 -64.2983 80 12 -64
2 24 78.5 12 -64.2983 78.5 4 -64.2983
1 16 40 4 -80 24.2983 0 0 0 8 0 0 0 -1.5 box3u4p.dat
2 24 64.2983 12 -78.5 64 12 -80
2 24 64.2983 12 -81.5 64 12 -80
2 24 16 12 -80 15.7017 12 -78.5
2 24 16 12 -80 15.7017 12 -81.5
1 16 -40 4 -80 24.2983 0 0 0 8 0 0 0 -1.5 box3u4p.dat
2 24 -15.7017 12 -78.5 -16 12 -80
2 24 -15.7017 12 -81.5 -16 12 -80
2 24 -64 12 -80 -64.2983 12 -78.5
2 24 -64 12 -80 -64.2983 12 -81.5
1 16 -20 4 -6 1.5 0 0 0 19 0 0 0 -2 box4-1.dat
1 16 -60 4 -6 1.5 0 0 0 19 0 0 0 -2 box4-1.dat
1 16 -100 4 -6 1.5 0 0 0 19 0 0 0 -2 box4-1.dat
1 16 -140 4 -6 1.5 0 0 0 19 0 0 0 -2 box4-1.dat
1 16 20 4 -6 -1.5 0 0 0 19 0 0 0 -2 box4-1.dat
1 16 60 4 -6 -1.5 0 0 0 19 0 0 0 -2 box4-1.dat
1 16 100 4 -6 -1.5 0 0 0 19 0 0 0 -2 box4-1.dat
1 16 140 4 -6 -1.5 0 0 0 19 0 0 0 -2 box4-1.dat
