Official File parts/u9611.dat
Part Attributes:
File Header:

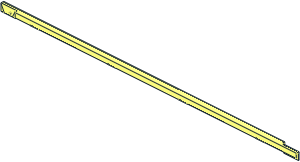

0 ~Train Track 9V Straight - Metal Rail
0 Name: u9611.dat
0 Author: Max Martin Richter [MMR1988]
0 !LDRAW_ORG Part UPDATE 2025-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-05-30 [MMR1988] Rewritten from scratch, original by Holly-Wood
0 !HISTORY 2025-02-27 [OrionP] Official Update 2025-02
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\u9611s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\u9611s01.dat
1 16 0 -11.25 -2.875 35 0 0 0 -1 0 0 0 -.25 rect.dat
4 16 -35 -11.25 -2.625 -35 -11.5 -2.625 35 -11.5 -2.625 35 -11.25 -2.625
1 16 0 -11.25 2.875 35 0 0 0 -1 0 0 0 .25 rect.dat
4 16 -35 -11.25 2.625 35 -11.25 2.625 35 -11.5 2.625 -35 -11.5 2.625
4 16 166.5 -15.5 -2.625 35 -11.5 -2.625 -35 -11.5 -2.625 -147.5 -15.5 -2.625
4 16 -166.5 -15.5 2.625 -35 -11.5 2.625 35 -11.5 2.625 147.5 -15.5 2.625
4 16 147.5 -15.5 1 -150 -15.5 .5 -166.5 -15.5 2.625 147.5 -15.5 2.625
4 16 -147.5 -15.5 0 -150 -15.5 .5 147.5 -15.5 1 147.5 -15.5 0
4 16 -147.5 -15.5 -1 150 -15.5 -.5 166.5 -15.5 -2.625 -147.5 -15.5 -2.625
4 16 147.5 -15.5 0 150 -15.5 -.5 -147.5 -15.5 -1 -147.5 -15.5 0
4 16 147.5 -16 3.125 35 -11.25 3.125 -35 -11.25 3.125 -166.5 -16 3.125
4 16 -35 -11.25 -3.125 35 -11.25 -3.125 166.5 -16 -3.125 -147.5 -16 -3.125
4 16 -147.5 -16 -1 -147.5 -16 -3.125 166.5 -16 -3.125 147.5 -16 0
4 16 147.5 -16 0 147.5 -16 1 -147.5 -16 0 -147.5 -16 -1
4 16 147.5 -16 3.125 -166.5 -16 3.125 -147.5 -16 0 147.5 -16 1
2 24 147.5 -16 3.125 -166.5 -16 3.125
2 24 -147.5 -16 -3.125 166.5 -16 -3.125
2 24 147.5 -15.5 2.625 -166.5 -15.5 2.625
2 24 -147.5 -15.5 -2.625 166.5 -15.5 -2.625
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Separated plastic from metal - what a vast of time.
2023-12-16 17:51:40
arent these two parts identical? why not delete one and use that twice in the main part?
2023-12-16 18:36:18
Yes, this is one part, used twice in the assy.
2024-02-14 12:18:20
Should be reduced into 1 part and then used twice.
Reduced to one rail
2024-03-24 15:11:07
2024-04-22 16:53:35
2025-02-08 21:18:53
2025-02-09 13:52:56
2025-02-13 14:17:29
2025-02-16 19:42:58
2025-02-27 19:16:55
