Official File parts/1994.dat
Part Attributes:
File Header:

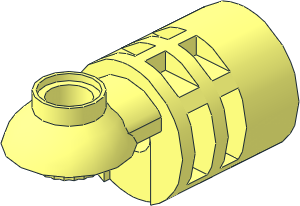

0 Technic Cylinder with Peghole and Half Click Rotation Joint Ball
0 Name: 1994.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2024-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2023-11-17 {LEGO Instructions App} Original part shape
0 !HISTORY 2023-12-16 [Philo] File preparation for LDraw Parts Tracker
0 !HISTORY 2024-10-27 [OrionP] Official Update 2024-09
Show contents
1 16 0 0 50 1 0 0 0 0 -1 0 -1 0 connhol3.dat
0 BFC INVERTNEXT
1 16 0 0 22 6 0 0 0 0 6 0 16 0 4-4cylo.dat
1 16 0 0 38 3 0 0 0 0 -3 0 -1 0 4-4ring2.dat
1 16 0 0 22 2 0 0 0 0 -2 0 1 0 2-4ring3.dat
1 16 0 0 22 6 0 0 0 0 6 0 1 0 2-4ndis.dat
0 BFC INVERTNEXT
1 16 0 0 22 -8 0 0 0 0 -8 0 -2 0 2-4cyli.dat
1 16 0 0 22 -8 0 0 0 0 -8 0 -1 0 2-4edge.dat
1 16 0 0 20 -8 0 0 0 0 -8 0 -1 0 2-4edge.dat
1 16 0 -10 0 1 0 0 0 1 0 0 0 1 connhol3.dat
0 BFC INVERTNEXT
1 16 0 0 0 8 0 0 0 -2 0 0 0 8 4-4cylo.dat
1 16 0 -2 0 2 0 0 0 -2 0 0 0 2 4-4ring3.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\1994s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\1994s01.dat
3 16 0 -10 9 -7.5 -10 20 7.5 -10 20
2 24 7.5 -10 20 -7.5 -10 20
2 24 16.1204 10 42 -16.1204 10 42
2 24 16.1204 -10 42 -16.1204 -10 42
3 16 0 -6 42 16.1204 -10 42 -16.1204 -10 42
3 16 0 6 42 -16.1204 10 42 16.1204 10 42
3 16 -1.7 10 38 0 9 38 1.7 10 38
3 16 -1.7 -10 38 1.7 -10 38 0 -9 38
2 24 -1.7 -10 38 1.7 -10 38
2 24 -1.7 10 38 1.7 10 38
4 16 -1.7 10 38 1.7 10 38 16.1204 10 42 -16.1204 10 42
4 16 1.7 -10 38 -1.7 -10 38 -16.1204 -10 42 16.1204 -10 42
5 24 0 -19 24.3 0 -19 20 1.7 -18.888 24.3 -1.7 -18.888 24.3
5 24 0 19 22 0 19 24.3 1.7 18.888 24.3 -1.7 18.888 24.3
5 24 0 -19 60 0 -19 42 1.7 -18.888 42 -1.7 -18.888 42
5 24 0 -19 35.7 0 -19 31.4 1.7 -18.888 31.4 -1.7 -18.888 31.4
5 24 0 -19 42 0 -19 35.7 1.7 -18.888 42 -1.7 -18.888 42
5 24 0 -19 31.4 0 -19 24.3 1.7 -18.888 24.3 -1.7 -18.888 24.3
5 24 0 19 42 0 19 60 1.7 18.888 42 -1.7 18.888 42
5 24 0 19 31.4 0 19 35.7 1.7 18.888 31.4 -1.7 18.888 31.4
5 24 0 19 35.7 0 19 42 1.7 18.888 42 -1.7 18.888 42
5 24 0 19 24.3 0 19 31.4 1.7 18.888 24.3 -1.7 18.888 24.3
5 24 0 -10 9 0 0 9 1.240042 0 9.419051 -1.240042 0 9.419051
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2023-12-16 19:31:42
2023-12-17 12:28:07
Would the click joint be worth a prim? we do have one that is slightly larger, but this size we don't
2023-12-17 14:00:36
Imho not yet (no reuse). If another part using this joint appears maybe...
2023-12-17 15:38:51
The clickjoint is widely used, but every time it is basically subfiled, quite a number of parts that fit to 47455
2023-12-17 16:32:50
Is it correct that 1994 and 47455 doesn't fit together?
1 39 -110 0 -80 1 0 0 0 1 0 0 0 1 47452.dat
1 39 -110 0 -20 1 0 0 0 1 0 0 0 1 47431.dat
1 39 -110 0 40 1 0 0 0 1 0 0 0 1 48169.dat
1 7 -110 0 110 1 0 0 0 1 0 0 0 1 48172.dat
1 7 80 0 -80 1 0 0 0 1 0 0 0 1 48170.dat
1 7 80 0 -20 1 0 0 0 1 0 0 0 1 48171.dat
1 7 80 0 40 1 0 0 0 1 0 0 0 1 47454.dat
1 7 80 0 110 1 0 0 0 1 0 0 0 1 47432.dat
1 25 -70 10 -80 1 0 0 0 1 0 0 0 1 47455.dat
1 25 -70 10 -20 1 0 0 0 0 -1 0 1 0 47455.dat
1 25 -50 10 40 -1 0 0 0 0 1 0 1 0 47455.dat
1 39 0 0 0 1 0 0 0 1 0 0 0 1 1994.dat
1 25 0 0 0 0 0 1 0 1 0 -1 0 0 47455.dat
1 39 -110 0 -80 1 0 0 0 1 0 0 0 1 47452.dat
1 39 -110 0 -20 1 0 0 0 1 0 0 0 1 47431.dat
1 39 -110 0 40 1 0 0 0 1 0 0 0 1 48169.dat
1 7 -110 0 110 1 0 0 0 1 0 0 0 1 48172.dat
1 7 80 0 -80 1 0 0 0 1 0 0 0 1 48170.dat
1 7 80 0 -20 1 0 0 0 1 0 0 0 1 48171.dat
1 7 80 0 40 1 0 0 0 1 0 0 0 1 47454.dat
1 7 80 0 110 1 0 0 0 1 0 0 0 1 47432.dat
1 25 -70 10 -80 1 0 0 0 1 0 0 0 1 47455.dat
1 25 -70 10 -20 1 0 0 0 0 -1 0 1 0 47455.dat
1 25 -50 10 40 -1 0 0 0 0 1 0 1 0 47455.dat
1 39 0 0 0 1 0 0 0 1 0 0 0 1 1994.dat
1 25 0 0 0 0 0 1 0 1 0 -1 0 0 47455.dat
2023-12-17 17:19:47
I checked 47455, it's too tight. I think the simplest is to change 1994 click tooth to fit our 47455...
Tweaked click cylinder to fit 47455
2023-12-27 16:22:45
2024-01-01 17:25:15
on a side note, part 47455 is due for an overhaul imho, lots of overlapping faces, and even edges that skip faces on an 48 cyli..., bleeding through faces...
May be time for an extended new prim?
https://brickset.com/parts/design-4920
https://brickset.com/parts/design-4920
It is not possibile to mold this:
1 16 0 0 30 1 0 0 0 0 1 0 1 0 connhol2.dat
This needs to go away: (broken down from the connhol2
1 16 0 0 40 1 0 0 0 0 1 0 -1 0 peghole.dat
and the gap is increaded by the removal of the peghol
rest needs correction in s01
1 16 0 0 30 1 0 0 0 0 1 0 1 0 connhol2.dat
This needs to go away: (broken down from the connhol2
1 16 0 0 40 1 0 0 0 0 1 0 -1 0 peghole.dat
and the gap is increaded by the removal of the peghol
rest needs correction in s01
2024-09-05 21:05:57
in s02
2024-09-05 21:11:55
also this
1 16 0 0 38 1 0 0 0 0 -1 0 -1 0 4-4ring8.dat
needs to be like
1 16 0 0 38 3 0 0 0 0 -3 0 -1 0 4-4ring2.dat
plus an edge
1 16 0 0 38 1 0 0 0 0 -1 0 -1 0 4-4ring8.dat
needs to be like
1 16 0 0 38 3 0 0 0 0 -3 0 -1 0 4-4ring2.dat
plus an edge
2024-09-06 12:18:01
2024-09-06 12:44:13
2024-09-06 12:54:03
2024-10-25 02:31:09
2024-10-27 01:48:46
Release 2024-09
