Official File parts/s/6809s02.dat
File Header:

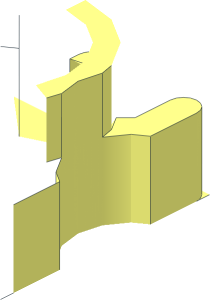

0 ~Scala Support Connector with Hole - Top Half
0 Name: s\6809s02.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Subpart UPDATE 2024-10
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-12-01 [OrionP] Official Update 2024-10
Show contents
0 // Outside
4 16 -7.4973 -11 10.3253 -7.4973 0 10.3253 -12.586 0 15.414 -12.586 -11 15.414
4 16 -14 0 16 -7.4973 0 10.3253 -2 0 12.602 0 0 16
2 24 -7.4973 0 10.3253 -7.4973 -11 10.3253
2 24 -7.4973 -11 10.3253 -12.586 -11 15.414
4 16 16 0 14 16 0 16 0 0 16 2 0 12.602
4 16 12 0 8.616 16 0 14 2 0 12.602 10.5479 0 7.1639
2 24 -7.4973 -11 10.3253 -9.1927 -11 9.1925
2 24 -7.4973 0 10.3253 -12.586 0 15.414
1 16 0 -11 14 2 0 0 0 11 0 0 0 2 2-4cylo.dat
1 16 0 -11 14 2 0 0 0 11 0 0 0 2 2-4chrd.dat
1 16 2 -5.5 13.301 0 -1 0 -5.5 0 0 0 0 -.699 rect3.dat
1 16 -2 -5.5 13.301 0 1 0 -5.5 0 0 0 0 -.699 rect3.dat
4 16 2 -11 12.602 2 -11 14 -2 -11 14 -2 -11 12.602
2 24 0 -11 13 2 -11 12.602
2 24 -2 -11 12.602 0 -11 13
1 16 14 -11 14 2 0 0 0 11 0 0 0 2 2-4cylo.dat
1 16 14 -11 14 2 0 0 0 11 0 0 0 2 2-4chrd.dat
1 16 16 -5.5 10.466 0 -1 0 -5.5 0 0 0 0 -3.534 rect1.dat
1 16 11.274 -5.5 7.89 0 1 -.726033 5.5 0 0 0 0 -.726033 rect3.dat
1 16 12 -5.5 11.308 0 1 0 5.5 0 0 0 0 -2.692 rect3.dat
4 16 12 -11 8.616 16 -11 6.932 16 -11 14 12 -11 14
4 16 14.2426 -11 5.7574 16 -11 6.932 12 -11 8.616 10.5479 -11 7.1639
3 16 14.2426 -11 5.7574 10.5479 -11 7.1639 12.4774 -11 3.1159
2 24 16 0 14 16 0 16
2 24 16 0 -16 16 0 -14
0 BFC INVERTNEXT
1 16 20 0 0 -5.757362 0 -5.757362 0 -11 0 5.757362 0 -5.757362 1-4cyli.dat
1 16 15.1215 -5.5 6.3445 .8785 -1 0 0 0 -5.5 .5875 0 0 rect2a.dat
1 16 15.1215 -5.5 -6.3445 .8785 -1 0 0 0 -5.5 -.5875 0 0 rect2a.dat
2 24 12.4774 -11 3.1159 14.2426 -11 5.7574
2 24 12.4774 -11 -3.1159 14.2426 -11 -5.7574
1 16 16 -5.5 -10.466 0 -1 0 -5.5 0 0 0 0 -3.534 rect1.dat
5 24 14.2426 -11 -5.7574 14.242638 0 -5.757362 16 0 -6.932 12.4774308108 0 -3.1158843144
5 24 14.2426 -11 5.7574 14.242638 0 5.757362 12.4774308108 0 3.1158843144 16 0 6.932
0 // Top
1 16 0 -19 0 0 0 1 0 1 0 1 0 0 3-16ring12.dat
1 16 0 -19 0 0 0 2 0 1 0 2 0 0 3-16ring5.dat
2 24 12.4774 -11 3.1159 12.01 -11 4.975
2 24 12.01 -11 4.975 10.5479 -11 7.1639
4 16 11.858 -11 0 11.858 -19 0 12.4774 -19 -3.1159 12.4774 -11 -3.1159
4 16 11.858 -19 0 11.858 -11 0 12.4774 -11 3.1159 12.4774 -19 3.1159
4 16 12.4774 -19 -3.1159 12.011 -19 -4.975 12.01 -11 -4.975 12.4774 -11 -3.1159
4 16 12.01 -11 4.975 12.011 -19 4.975 12.4774 -19 3.1159 12.4774 -11 3.1159
2 24 12.01 -19 4.975 12.4774 -19 3.1159
2 24 11.858 -19 0 12.4774 -19 3.1159
2 24 11.858 -19 0 12.4774 -19 -3.1159
2 24 12.011 -19 -4.975 12.4774 -19 -3.1159
2 24 12.4774 -19 3.1159 12.4774 -11 3.1159
2 24 12.4774 -19 -3.1159 12.4774 -11 -3.1159
2 24 12.4774 -11 -3.1159 12.01 -11 -4.975
5 24 11.858 -19 0 11.8579 -11 0 12.4774 -19 -3.1159 12.4774 -19 3.1159
4 16 11.858 -19 0 11.087 -19 -4.592 12.011 -19 -4.975 12.4774 -19 -3.1159
4 16 12.011 -19 4.975 11.087 -19 4.592 11.858 -19 0 12.4774 -19 3.1159
4 16 11.087 -19 4.592 9.239 -19 3.827 10 -19 0 11.858 -19 0
4 16 11.087 -19 -4.592 11.858 -19 0 10 -19 0 9.239 -19 -3.827
Status:
Official
This part has the following errors
-
Decimal precision exceeds 5 significant placesLine 35: 1 16 11.274 -5.5 7.89 0 1 -.726033 5.5 0 0 0 0 -.726033 rect3.datLine 45: 1 16 20 0 0 -5.757362 0 -5.757362 0 -11 0 5.757362 0 -5.757362 1-4cyli.datLine 51: 5 24 14.2426 -11 -5.7574 14.242638 0 -5.757362 16 0 -6.932 12.4774308108 0 -3.1158843144Line 52: 5 24 14.2426 -11 5.7574 14.242638 0 5.757362 12.4774308108 0 3.1158843144 16 0 6.932
