File Detail parts/6809.dat

Official File parts/6809.dat

Part Attributes:

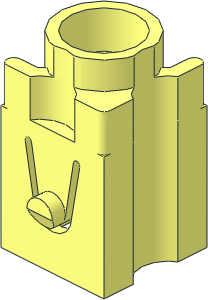

~Scala Support Connector with Hole and Extended Connector

File Header:

0 ~Scala Support Connector with Hole and Extended Connector
0 Name: 6809.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-10
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-12-01 [OrionP] Official Update 2024-10

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\6809s02.dat
1 16 0 0 0 0 0 -1 0 1 0 -1 0 0 s\6809s02.dat

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\6809s01.dat

0 // Inside and Pinhole
1 16 0 4 0 9 0 0 0 -1 0 0 0 9 4-4ndis.dat
4 16 9 4 9 9.9699 4 4.1545 9.9699 4 -4.1545 9 4 -9
4 16 9 4 -9 9.9699 4 -4.1545 13 4 -8.129 13 4 -13
4 16 -9 4 -9 9 4 -9 13 4 -13 -13 4 -13
4 16 -9 4 9 -9 4 -9 -13 4 -13 -13 4 13
4 16 9 4 9 -9 4 9 -13 4 13 13 4 13
4 16 9.9699 4 4.1545 9 4 9 13 4 13 13 4 8.129

0 BFC INVERTNEXT
1 16 0 4 0 9 0 0 0 -9 0 0 0 9 4-4cylo.dat
1 16 0 -5 0 1.5 0 0 0 -1 0 0 0 1.5 4-4ring5.dat
0 BFC INVERTNEXT
1 16 0 -5 0 7.5 0 0 0 -3 0 0 0 7.5 4-4cylo.dat

1 16 0 -8 0 2.5 0 0 0 1 0 0 0 2.5 4-4ring3.dat
0 BFC INVERTNEXT
1 16 0 -19 0 10 0 0 0 11 0 0 0 10 4-4cylo.dat

0 // Ribs Centre
3 16 16 0 -14 14 0 -16 16 0 -16

1 16 14 -11 -14 0 0 2 0 11 0 -2 0 0 1-4cylo.dat
1 16 14 -11 -14 0 0 2 0 11 0 -2 0 0 1-4chrd.dat
4 16 6.932 -11 -16 14 -11 -16 16 -11 -14 16 -11 -6.932
4 16 14.2426 -11 -5.7574 5.757 -11 -14.243 6.932 -11 -16 16 -11 -6.932
4 16 3.1159 -11 -12.4774 5.757 -11 -14.243 14.2426 -11 -5.7574 12.4774 -11 -3.1159
1 16 0 -19 0 .92388 0 -.38268 0 1 0 -.38268 0 -.92388 1-8ring12.dat
1 16 0 -19 0 1.84776 0 -.76537 0 1 0 -.76537 0 -1.84776 1-8ring5.dat
1 16 0 -19 0 4.97488 0 12.01043 0 8 0 -12.01043 0 4.97488 1-8cylo.dat

1 16 -14 -11 14 -2 0 0 0 11 0 0 0 -2 1-8cylo.dat
1 16 -14 -11 14 -2 0 0 0 11 0 0 0 2 3-8cylo.dat
1 16 -14 -11 14 -2 0 0 0 11 0 0 0 -2 1-8chrd.dat
1 16 -14 -11 14 -2 0 0 0 11 0 0 0 2 3-8chrd.dat
4 16 -15.414 -11 12.586 -10.3253 -11 7.4973 -7.4973 -11 10.3253 -12.586 -11 15.414
3 16 -12.586 -11 15.414 -16 -11 14 -15.4142 -11 12.5858
1 16 0 -19 0 -1 0 0 0 1 0 0 0 1 1-4ring12.dat
1 16 0 -19 0 -2 0 0 0 1 0 0 0 2 1-4ring5.dat

3 16 -16 0 16 -16 0 14 -14 0 16

0 //
1 16 0 0 -20 5.757362 0 -5.757362 0 1 0 5.757362 0 5.757362 1-4chrd.dat
1 16 0 0 -20 5.757362 0 -5.757362 0 1 0 5.757362 0 5.757362 1-4edge.dat

4 16 5.757 0 -14.243 -5.757 0 -14.243 -6.932 0 -16 6.932 0 -16
2 24 6.932 0 -16 -6.932 0 -16
2 24 -6.932 0 -16 -5.757362 0 -14.242638
2 24 5.757 0 -14.243 6.932 0 -16

1 16 0 -19 0 12.01043 0 -4.97488 0 19 0 4.97488 0 12.01043 5-8cylo.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Gerald Lasser [GeraldLasser]

initially submitted the part.

2023-12-18 21:55:15

Max Martin Richter [MMR1988]

posted a vote of Certify.

2023-12-27 22:50:00

Orion Pobursky [OrionP]
