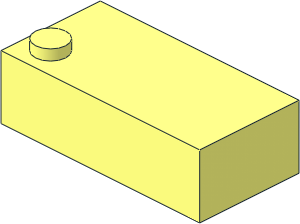

0 Brick Braille 2 x 4 with 1 Stud (DOTS-1)
0 Name: 60189.dat
0 Author: Jeff Jones [notmaster]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS ⠁ Unicode U+2801 (10241)
0 !HISTORY 2024-11-20 [Cheenzo] Changed origin and fixed rotation matrix
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3001s02.dat
1 16 -30 0 -10 1 0 0 0 1 0 0 0 1 stud.dat
4 16 -40 0 20 -40 0 -20 40 0 -20 40 0 20
| User | Vote |
|---|---|
| OrionP | Admin Review |
| GeraldLasser | Certify |
| KnightOfTarenta | Certify |
"Brick 2 x 4 with 1 Stud Braille Dots-1 ⠁ A 1"
cool, eh? :D :D :D
https://de.wikipedia.org/wiki/Unicodeblock_Braille-Zeichen#Tabelle
60189.dat
60189p01.dat
should be cleaned up to more closely match each other
⠀⠀⠀⣴⣴⡤
⠀⣠⠀⢿⠇⡇⠀⠀⠀⠀⠀⠀⠀⢰⢷⡗
⠀⢶⢽⠿⣗⠀⠀⠀⠀⠀⠀⠀⠀⣼⡧⠂⠀⠀⣼⣷⡆
⠀⠀⣾⢶⠐⣱⠀⠀⠀⠀⠀⣤⣜⣻⣧⣲⣦⠤⣧⣿⠶
⠀⢀⣿⣿⣇⠀⠀⠀⠀⠀⠀⠛⠿⣿⣿⣷⣤⣄⡹⣿⣷
⠀⢸⣿⢸⣿⠀⠀⠀⠀⠀⠀⠀⠀⠈⠙⢿⣿⣿⣿⣿⣿
⠀⠿⠃⠈⠿⠆⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠹⠿⠿⠿
⠀⢀⢀⡀⠀⢀⣤⠀⠀⠀⠀⠀⠀⠀⡀⡀
⠀⣿⡟⡇⠀⠭⡋⠅⠀⠀⠀⠀⠀⢰⣟⢿
⠀⣹⡌⠀⠀⣨⣾⣷⣄⠀⠀⠀⠀⢈⠔⠌
⠰⣷⣿⡀⢐⢿⣿⣿⢻⠀⠀⠀⢠⣿⡿⡤⣴⠄⢀⣀⡀
⠘⣿⣿⠂⠈⢸⣿⣿⣸⠀⠀⠀⢘⣿⣿⣀⡠⣠⣺⣿⣷
⠀⣿⣿⡆⠀⢸⣿⣿⣾⡇⠀⣿⣿⣿⣿⣿⣗⣻⡻⠿⠁
⠀⣿⣿⡇⠀⢸⣿⣿⡇⠀⠀⠉⠉⠉⠉⠉⠉⠁
(thats loss.jpg)
1 16 3.254 0 .191 -1 0 0 0 1 0 0 0 1 s\3001s02.dat
needs to be 0 0 0
history:
0 !HISTORY 2024-11-20 [Cheenzo] Changed orientation
to
0 !HISTORY 2024-11-20 [Cheenzo] Changed origin
Oops... Origin not orientation
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\3001s02.dat
This part is copyright © Jeff Jones
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Vincent Messenet,
3D View
Website copyright ©2003-2025 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor,
endorse, or authorize this site. Visit the official Lego website at
http://www.lego.com
(see https://www.bricklink.com/catalogList.asp?catType=P&catString=1253 )
and
- add Braille to the title
- add the Unicode character for the Braille letter that is represented here to the title (see list at https://en.wikipedia.org/wiki/Braille_Patterns#Block )
