Official File parts/u9626.dat
Part Attributes:

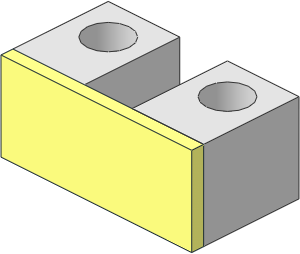

~Electric Technic Motor Connector
File Header:
0 ~Electric Technic Motor Connector 0 Name: u9626.dat 0 Author: Rene Rechthaler [Blechtaler] 0 !LDRAW_ORG Part UPDATE 2024-08 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2024-09-30 [OrionP] Official Update 2024-08
Show contents
0 // Vision blocker 1 16 0 26 39 16 0 0 0 7 0 0 0 1 box.dat 0 // Contacts 1 494 0 0 0 1 0 0 0 1 0 0 0 1 s\u9626s01.dat 1 494 0 0 0 -1 0 0 0 1 0 0 0 1 s\u9626s01.dat 0 // Contacts as flat boxes 0 // 1 494 13.75 26 40 .25 0 0 0 0 7 0 16 0 box5.dat 0 // 1 494 6.25 26 40 .25 0 0 0 0 7 0 16 0 box5.dat 0 // 1 494 -6.25 26 40 .25 0 0 0 0 7 0 16 0 box5.dat 0 // 1 494 -13.75 26 40 .25 0 0 0 0 7 0 16 0 box5.dat
Status:
Official Official
Unofficial parents
Part Events:
Archived Part Events:
Rene Rechthaler [Blechtaler]
Part Header Editor
initially submitted the part.
2023-12-26 11:16:27
subparted the connector
Willy Tschager [Holly-Wood]
Senior Part Reviewer
renamed the part.
2024-03-16 18:05:04
"parts/u9380.dat" to "parts/u9626.dat"
Willy Tschager [Holly-Wood]
Senior Part Reviewer
edited the part header.
2024-03-16 18:06:01
Header Edits

description:
Electric Technic Motor Connector
to
~Electric Technic Motor Connector

Comment:
Changed description.
Takeshi Takahashi [RainbowDolphin]
Senior Part Reviewer
posted a vote of Certify.
2024-03-30 15:16:39
Gerald Lasser [GeraldLasser]
Part Library Admin
posted a vote of Hold.
2024-09-05 19:24:29
Why are those commented out boxes there? SHould this be in a !HELP section

just Holding for clarification
Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2024-09-05 20:11:30
these flat boxes are the old stuff (if anyone wants to go back)
Gerald Lasser [GeraldLasser]
Part Library Admin
posted a vote of Certify.
2024-09-05 20:33:10
I would rather see it gone or moved to the help section, if somebody wants to revert, but cannot see a reason to do so
Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2024-09-05 20:36:14
https://library.ldraw.org/official/16047
from this old part
Magnus Forsberg [MagFors]
Part Library Admin
made the following comment.
2024-09-05 20:58:40
What does the real one look like?
A solid metal block, or a thin spring like plate?
Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2024-09-05 21:04:19
i only have one motor (4V 2hole version) the only thing you see are these two crossing holes
Magnus Forsberg [MagFors]
Part Library Admin
made the following comment.
2024-09-05 21:12:55
I think you should remove the hidden code. It might be something I added in previous rework.
Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2024-09-05 21:22:57
does anxpne have the 3-hole version? what is visible in the middle?
Orion Pobursky [OrionP]
Part Library Admin
posted a vote of Admin Review.
2024-09-29 16:28:28
Orion Pobursky [OrionP]
Part Library Admin
2024-09-30 03:57:29
Release 2024-08
