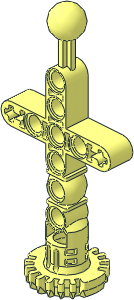

Constraction Torso  5 x 10 with Partial Gear and Connector
File Header:
0 Constraction Torso 5 x 10 with Partial Gear and Connector 0 Name: 24190.dat 0 Author: Magnus Forsberg [MagFors] 0 !LDRAW_ORG Part UPDATE 2024-10 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !KEYWORDS 2016, 24189, bionicle, Hips, Spine, Toa Uniters 0 !HISTORY 2024-12-01 [OrionP] Official Update 2024-10
Show contents
1 16 0 0 0 -1 0 0 0 0 1 0 1 0 connhole.dat 1 16 10 0 -10 0 0 -1 -1 0 0 0 8 0 npeghole.dat 1 16 10 0 10 0 0 -1 -1 0 0 0 -8 0 npeghole.dat 1 16 -10 0 -10 0 0 -1 -1 0 0 0 8 0 npeghole.dat 1 16 -10 0 10 0 0 -1 -1 0 0 0 -8 0 npeghole.dat 1 16 0 10 -10 -1 0 0 0 0 1 0 8 0 npeghole.dat 1 16 0 10 10 -1 0 0 0 0 1 0 -8 0 npeghole.dat 4 16 20 9 -10 13.64 6.36 -10 6.36 6.36 -10 9 9 -10 4 16 6.36 6.36 10 13.64 6.36 10 20 9 10 9 9 10 4 16 6.36 6.36 -10 6.36 13.64 -10 9 20 -10 9 9 -10 4 16 9 20 10 6.36 13.64 10 6.36 6.36 10 9 9 10 4 16 -9 9 -10 -6.36 6.36 -10 -13.64 6.36 -10 -20 9 -10 4 16 -9 9 10 -20 9 10 -13.64 6.36 10 -6.36 6.36 10 4 16 -9 9 -10 -9 20 -10 -6.36 13.64 -10 -6.36 6.36 -10 4 16 -9 9 10 -6.36 6.36 10 -6.36 13.64 10 -9 20 10 1 16 0 -10 -10 1 0 0 0 0 -1 0 8 0 npeghole.dat 1 16 0 -10 10 1 0 0 0 0 -1 0 -8 0 npeghole.dat 4 16 -20 -9 -10 -13.64 -6.36 -10 -6.36 -6.36 -10 -9 -9 -10 4 16 -6.36 -6.36 10 -13.64 -6.36 10 -20 -9 10 -9 -9 10 4 16 -6.36 -6.36 -10 -6.36 -13.64 -10 -9 -20 -10 -9 -9 -10 4 16 -9 -20 10 -6.36 -13.64 10 -6.36 -6.36 10 -9 -9 10 4 16 9 -9 -10 6.36 -6.36 -10 13.64 -6.36 -10 20 -9 -10 4 16 9 -9 10 20 -9 10 13.64 -6.36 10 6.36 -6.36 10 4 16 9 -9 -10 9 -20 -10 6.36 -13.64 -10 6.36 -6.36 -10 4 16 9 -9 10 6.36 -6.36 10 6.36 -13.64 10 9 -20 10 1 16 0 20 0 -1 0 0 0 0 -1 0 -1 0 s\98590s01.dat 1 16 0 40 0 1 0 0 0 0 -1 0 1 0 s\98577s02.dat 1 16 0 60 0 1 0 0 0 0 1 0 -1 0 s\98590s01.dat 0 // arms 0 BFC INVERTNEXT 1 16 24.5 14.5 0 0 -15.5 0 0 0 -5.5 -10 0 0 box2-7.dat 1 16 40 0 -10 0 0 -1 -1 0 0 0 20 0 axlehol4.dat 1 16 30 0 -10 0 0 -1 -1 0 0 0 20 0 npeghol4.dat 1 16 40 0 -10 0 0 3 -3 0 0 0 1 0 2-4ring2.dat 1 16 40 0 10 0 0 3 -3 0 0 0 -1 0 2-4ring2.dat 1 16 20 0 0 0 0 -1 -1 0 0 0 1 0 connhole.dat 1 16 40 0 -10 0 0 9 -9 0 0 0 20 0 2-4cylo.dat 0 BFC INVERTNEXT 1 16 -24.5 14.5 0 0 15.5 0 0 0 -5.5 -10 0 0 box2-7.dat 1 16 -40 0 10 0 0 1 -1 0 0 0 -20 0 axlehol4.dat 1 16 -30 0 10 0 0 1 -1 0 0 0 -20 0 npeghol4.dat 1 16 -40 0 10 0 0 -3 -3 0 0 0 -1 0 2-4ring2.dat 1 16 -40 0 -10 0 0 -3 -3 0 0 0 1 0 2-4ring2.dat 1 16 -20 0 0 0 0 1 -1 0 0 0 -1 0 connhole.dat 1 16 -40 0 -10 0 0 -9 -9 0 0 0 20 0 2-4cylo.dat 0 // head 0 BFC INVERTNEXT 1 16 24.5 -24.5 0 0 -15.5 0 0 0 15.5 10 0 0 box2-7.dat 0 BFC INVERTNEXT 1 16 -24.5 -24.5 0 0 15.5 0 0 0 15.5 10 0 0 box2-7.dat 1 16 0 -40 -10 9 0 0 0 0 -9 0 20 0 2-4cylo.dat 1 16 0 -40 0 0 0 -1 -1 0 0 0 1 0 connhole.dat 0 // top 1 16 0 -20 0 1 0 0 0 0 -1 0 1 0 beamhole.dat 1 16 0 -40 0 1 0 0 0 1 0 0 0 1 axlebeam.dat 1 16 0 -50 0 1 0 0 0 -17.19 0 0 0 1 axlehol8.dat 1 16 0 -80 0 -1 0 0 0 -1 0 0 0 1 axlesphe.dat 1 16 0 -80 0 12.81 0 0 0 12.81 0 0 0 12.81 8-8sphe.dat 1 16 0 60 -10 9 0 0 0 0 9 0 20 0 2-4cylo.dat 0 // teeth 1 16 0 100 -20 1 0 0 0 0 -1 0 -1 0 s\24190s02.dat 3 16 0 97 -15 -1.4619 97 -20.8984 1.4619 97 -20.8984 3 16 -1.31 110 -19.91 0 110 -18.4171 1.31 110 -19.91 3 16 6.3639 66.3639 -10 6.3639 66.3639 10 10.5 69 0 1 16 0 100 20 -1 0 0 0 0 -1 0 1 0 s\24190s02.dat 3 16 0 97 15 1.4619 97 20.8984 -1.4619 97 20.8984 3 16 1.31 110 19.91 0 110 18.4171 -1.31 110 19.91 3 16 -6.3639 66.3639 10 -6.3639 66.3639 -10 -10.5 69 0 1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\24190s01.dat 1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\24190s01.dat 1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\24190s01.dat 1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\24190s01.dat 2 24 -6.3639 66.3639 -10 -6.3639 66.3639 10 2 24 6.3639 66.3639 -10 6.3639 66.3639 10 5 24 13.5 67 0 8.5101 62.4637 0 8.4643 62.6938 -3.0163 8.4643 62.6938 3.0163 5 24 -13.5 67 0 -8.5101 62.4637 0 -8.4643 62.6938 3.0163 -8.4643 62.6938 -3.0163 5 24 -10.5 78 0 -10.5 69 0 -9.0286 69 -9.5459 -9.0286 69 9.5459 5 24 -10.5 69 0 -6.3639 66.3639 -10 -9.0286 69 -9.5459 -6.3639 66.3639 10 5 24 -6.3639 66.3639 10 -10.5 69 0 -9.0286 69 9.5459 -6.3639 66.3639 -10 5 24 10.5 78 0 10.5 69 0 9.0286 69 -9.5459 9.0286 69 9.5459 5 24 10.5 69 0 6.3639 66.3639 -10 6.3639 66.3639 10 9.0286 69 -9.5459 5 24 6.3639 66.3639 10 10.5 69 0 9.0286 69 9.5459 6.3639 66.3639 -10 5 24 23.05 110 0 23.05 102 0 22.8518 110 -3.008 22.8518 110 3.008 5 24 26.05 108 0 23.05 110 0 25.826 108 -3.3995 25.826 108 3.3995 5 24 26.1 103 0 26.05 108 0 25.8755 103 -3.4061 25.8755 103 3.4061 5 24 27 97 0 27 103 0 26.7678 97 -3.5235 26.7678 97 3.5235 5 24 -23.05 110 0 -23.05 102 0 -22.8518 110 3.008 -22.8518 110 -3.008 5 24 -26.05 108 0 -23.05 110 0 -25.826 108 3.3995 -25.826 108 -3.3995 5 24 -26.1 103 0 -26.05 108 0 -25.8755 103 3.4061 -25.8755 103 -3.4061 5 24 -27 97 0 -27 103 0 -26.7678 97 -3.5235 -26.7678 97 3.5235 5 24 0 96 -9.9999 0 84 -10 3.4 96 -9.3239 -3.4 96 -9.3239 5 24 0 84 -10 0 79 -9 1.6 84 -9.6818 -1.6 84 -9.6818 5 24 0 84 10 0 79 9 -1.6 84 9.6818 1.6 84 9.6818 5 24 0 96 9.9999 0 84 10 -3.4 96 9.3239 3.4 96 9.3239
