File Detail parts/s/80674s01.dat

Official File parts/s/80674s01.dat

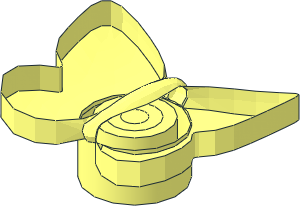

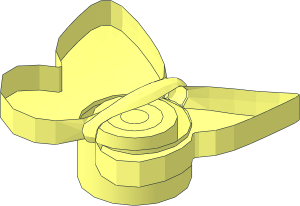

~Animal Butterfly with Stud Tube without Patternable Surface

File Header:

0 ~Animal Butterfly with Stud Tube without Patternable Surface
0 Name: s\80674s01.dat
0 Author: Vincent Messenet [Cheenzo]
0 !LDRAW_ORG Subpart UPDATE 2025-06
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-10-27 [OrionP] Official Update 2024-09
0 !HISTORY 2025-06-13 [Cheenzo] Added missing bottom pin hole
0 !HISTORY 2025-06-26 [OrionP] Official Update 2025-06

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\80674s02.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\80674s02.dat
1 16 0 -9.75 0 1 0 0 0 -2.4375 0 0 0 1 stud4o.dat
1 16 0 0 0 8 0 0 0 -8.879 0 0 0 8 4-4cylo.dat
1 16 0 -5.325 0 4 0 0 0 -4.425 0 0 0 4 4-4cylo.dat
1 16 0 -9.75 0 2 0 0 0 4.425 0 0 0 2 4-4edge.dat
1 16 0 -5.325 0 2 0 0 0 4.425 0 0 0 2 4-4edge.dat
0 BFC INVERTNEXT
1 16 0 -9.75 0 2 0 0 0 4.425 0 0 0 2 4-4cyli.dat
1 16 0 -5.325 0 2 0 0 0 -4.425 0 0 0 2 4-4ring1.dat
5 24 0 -12.788 7.494 0 -13.01 6.509 .901 -12.773 6.614 -.901 -12.773 6.614
5 24 0 -13.01 6.509 0 -13.236 4.733 -.941 -13.027 4.672 .941 -13.027 4.672
5 24 0 -13.236 4.733 0 -13.32 2.557 .941 -13.027 4.672 -.941 -13.027 4.672
5 24 0 -8.534 8 0 -8.605 8.616 1.117 -8.838 8.452 -1.117 -8.838 8.452
5 24 0 -13.095 -1.7 0 -12.867 -3.758 .686 -12.678 -3.731 -.686 -12.678 -3.731
5 24 0 -12.272 -7.717 0 -11.966 -9.156 .495 -12.145 -7.652 -.495 -12.145 -7.652
5 24 0 -12.565 -5.735 0 -12.272 -7.717 -.495 -12.145 -7.652 .495 -12.145 -7.652
5 24 0 -13.32 2.557 0 -13.254 .295 -1.003 -13.015 .297 1.003 -13.015 .297
5 24 0 -12.867 -3.758 0 -12.565 -5.735 .495 -12.145 -7.652 -.495 -12.145 -7.652
5 24 0 -11.966 -9.156 0 -10.557 -9.7 .653 -11.593 -9.099 -.653 -11.593 -9.099
5 24 0 -10.557 -9.7 0 -9.504 -9.339 .762 -10.595 -9.427 -.762 -10.595 -9.427
5 24 0 -12.577 8.38 0 -12.788 7.494 .901 -12.773 6.614 -.901 -12.773 6.614
5 24 0 -11.891 9.282 0 -12.577 8.38 .936 -12.242 8.334 -.936 -12.242 8.334
5 24 0 -13.254 .295 0 -13.095 -1.7 .872 -12.9 -1.703 -.872 -12.9 -1.703
5 24 0 -9.504 -9.339 0 -9.099 -8.305 .704 -9.557 -9.079 -.704 -9.557 -9.079
5 24 0 -9.503 9.564 0 -10.723 9.846 1.11 -10.653 9.48 -1.11 -10.653 9.48
5 24 0 -9.099 -8.305 0 -8.879 -8 -.629 -9.136 -8.28 .629 -9.136 -8.28
5 24 0 -8.605 8.616 0 -9.503 9.564 -1.094 -9.526 9.248 1.094 -9.526 9.248
5 24 0 -10.723 9.846 0 -11.891 9.282 1.06 -11.691 9.108 -1.06 -11.691 9.108

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Vincent Messenet [Cheenzo]

initially submitted the part.

2023-12-27 21:07:54

Vincent Messenet [Cheenzo]

edited the part header.

2023-12-27 21:08:36

Header Edits

description:
~Animal Butterfly with Stud Tube
to
~Animal Butterfly with Stud Tube - Half

Gerald Lasser [GeraldLasser]

posted a vote of Hold.

2024-07-10 06:22:46

may be add an edge here, condline (missing) will not work IMHO where it touches the cylinder
2 9 0 -8.534 8 1.859 -8.796 7.63

swap those faces:(f)
3 13 1.268 -11.596 -8.766 1.321 -10.643 -9.101 3.946 -10.489 -11.697
3 13 3.946 -10.489 -11.697 3.946 -12.256 -11.697 1.268 -11.596 -8.766

In the rim:
- Inline all the rect-prims, dont help much and are mostly rect1 so not a real saving

- try to get rid of the two rows of quads on the greater part of the rim, right now therre are unnecessary TJs
2 4 16.064 -14.0715 -10.069 16.064 -10.0135 -10.069
2 4 13.78 -13.259 -12.785 13.78 -9.201 -12.785
2 4 10.222 -12.501 -13.83 10.222 -8.442 -13.83
2 4 6.57 -12.214 -13.176 6.57 -8.24 -13.176
2 4 16.272 -14.1355 -6.953 16.272 -10.0775 -6.953
2 4 14.992 -13.538 -3.815 14.992 -9.479 -3.815
2 4 13.229 -13.07 -1.78 13.229 -9.011 -1.78
2 4 15.809 -13.9045 .1935 15.809 -9.846 .193
2 4 17.319 -14.4685 2.3105 17.319 -10.4095 2.31
2 4 18.719 -15.2175 7.524 18.719 -11.158 7.524
2 4 18.087 -14.8395 4.874 18.087 -10.7805 4.874
2 4 19.263 -15.571 10.564 19.263 -11.512 10.564
2 4 19.233 -15.535 12.64 19.233 -11.477 12.64

- when changing from two rows to one row, change this arrangement
3 16 18.668 -13.359 13.994 17.281 -14.522 14.769 18.67 -15.23 13.958
4 16 18.67 -11.172 13.958 17.187 -12.723 14.804 17.281 -14.522 14.769 18.668 -13.359 13.994
3 16 18.67 -11.172 13.958 17.281 -10.463 14.769 17.187 -12.723 14.804

to
3 16 17.187 -12.723 14.804 17.281 -14.522 14.769 18.67 -15.23 13.958
3 16 18.67 -15.23 13.958 18.67 -11.172 13.958 17.187 -12.723 14.804
3 16 18.67 -11.172 13.958 17.281 -10.463 14.769 17.187 -12.723 14.804

make this a cond:
2 1 13.166 -8.993 -1.2505 13.166 -13.051 -1.2505

Vincent Messenet [Cheenzo]

submitted a new version of the part.

2024-07-10 19:05:06

Thanks for the review Gerald, the different issues have been addressed

Gerald Lasser [GeraldLasser]

made the following comment.

2024-07-10 20:15:27

SOrry, I forgot to mention this before, just crossed my mind, as there are printed parts, can you please make a subfile of the surface?

Vincent Messenet [Cheenzo]

submitted a new version of the part.

2024-07-11 06:31:14

Gerald Lasser [GeraldLasser]
