File Detail parts/s/79897s01.dat

Official File parts/s/79897s01.dat

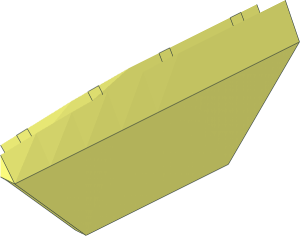

~Slope Brick Curved 2 x 4 x 0.667 with Fin and 4 Studs and 2 Hollow Studs on Sides - Side

File Header:

0 ~Slope Brick Curved  2 x  4 x  0.667 with Fin and 4 Studs and 2 Hollow Studs on Sides - Side
0 Name: s\79897s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Subpart UPDATE 2025-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2025-08-31 [OrionP] Official Update 2025-08

Show contents

0 // Side Extensions
3 16 20 16 -60 24 16 -60 20 11 -60
2 24 20 16 -60 24 16 -60
2 24 24 16 -60 20 11 -60
3 16 20 8 20 24 16 20 20 16 20
2 24 20 8 20 24 16 20
2 24 24 16 20 20 16 20

3 16 20 11 -60 24 16 -60 20 10.083 -50.016
3 16 20 10.083 -50.016 24 16 -60 24 16 -50
3 16 24 16 -50 20 9.333 -40.022 20 10.083 -50.016
3 16 20 9.333 -40.022 24 16 -50 24 16 -40
4 16 24 16 20 20 8 10 20 8 -10 24 16 -10
3 16 24 16 -20 24 16 -10 20 8 -10
3 16 24 16 -20 20 8 -10 20 8.333 -20.014
3 16 20 8.333 -20.014 24 16 -30 24 16 -20
3 16 24 16 -30 20 8.333 -20.014 20 8.749 -30.022
3 16 20 8.749 -30.022 24 16 -40 24 16 -30
3 16 24 16 -40 20 8.749 -30.022 20 9.333 -40.022
3 16 20 8 10 24 16 20 20 8 20
5 24 24 16 -20 20 8 -10 20 8.333 -20.014 24 16 -10
5 24 24 16 -40 20 9.333 -40.022 24 16 -50 20 8.749 -30.022
5 24 20 8.749 -30.022 24 16 -30 20 8.333 -20.014 24 16 -40
5 24 20 8.333 -20.014 24 16 -20 24 16 -30 20 8 -10
5 24 24 16 -50 20 10.083 -50.016 24 16 -60 20 9.333 -40.022
5 24 24 16 -40 20 8.749 -30.022 24 16 -30 20 9.333 -40.022
5 24 20 8.333 -20.014 24 16 -30 24 16 -20 20 8.749 -30.022
5 24 24 16 -60 20 10.083 -50.016 24 16 -50 20 11 -60
5 24 20 9.333 -40.022 24 16 -50 24 16 -40 20 10.083 -50.016
5 24 20 10.083 -50.016 20 11 -60 13.717 3.942 -55.833 24 16 -60
5 24 20 10.083 -50.016 20 9.333 -40.022 24 16 -50 16.95 6.557 -41.453
5 24 20 9.333 -40.022 20 8.749 -30.022 17.782 7.253 -35.452 24 16 -40
5 24 20 8.749 -30.022 20 8.333 -20.014 18.989 7.811 -27.771 24 16 -30
5 24 20 8.333 -20.014 20 8 -10 19.595 8 -20 24 16 -20
2 24 24 16 -10 24 16 20
2 24 24 16 -20 24 16 -10
2 24 24 16 -30 24 16 -20
2 24 24 16 -40 24 16 -30
2 24 24 16 -50 24 16 -40
2 24 24 16 -60 24 16 -50
3 16 24 16 -50 24 16 -60 24 36 -40
3 16 24 16 -40 24 16 -50 24 36 -40
3 16 24 16 -30 24 16 -40 24 36 -40
3 16 24 16 -20 24 16 -30 24 36 -40
4 16 24 36 -40 24 36 0 24 16 -10 24 16 -20
3 16 24 16 20 24 16 -10 24 36 0

4 16 21 36 0 21 16.9863 19.0137 24 16 20 24 36 0
4 16 21 36 -40 24 36 -40 24 16 -60 21 17 -59
3 16 24 16 20 21 16.9863 19.0137 20 16 20
3 16 20 16 -60 21 17 -59 24 16 -60
2 24 21 36 0 21 16.9863 19.0137
2 24 20 16 20 21 16.9863 19.0137
2 24 20 16 -60 21 17 -59
2 24 24 16 -60 24 36 -40
2 24 24 36 0 24 16 20
2 24 21 36 -40 21 17 -59
1 16 22.5 36 -20 0 0 1.5 0 -1 0 20 0 0 rect.dat

4 16 21 16.9863 19.0137 21 36 0 21 36 -40 21 17 -59
2 24 21 16.9863 19.0137 21 17 -59
3 16 21 16.9863 19.0137 20 16 16 20 16 20
3 16 21 17 -59 20 16 -60 20 16 -56
4 16 20 16 -56 20 16 16 21 16.9863 19.0137 21 17 -59
2 24 20 16 16 20 16 -56

3 16 16 12 -56 16 10 -36 20 16 -56
3 16 20 16 -56 16 10 -36 16 9 -20
3 16 20 16 -56 16 9 -20 20 16 16
3 16 16 9 -20 16 9 -16 20 16 16
3 16 16 9 -16 16 9 -10 20 16 16
3 16 16 9 -10 16 9 10 20 16 16
3 16 20 16 16 16 9 10 16 9 16
2 24 16 9 16 20 16 16
2 24 16 12 -56 20 16 -56
5 24 16 9 -20 16 9 -16 20 16 16 10 4 -20
5 24 16 9 -10 16 9 -16 20 16 16 15.5434 8.6195 -12.2962
5 24 20 16 -56 16 9 -20 20 16 16 16 10 -36
5 24 16 9 10 16 9 16 20 16 16 15.5434 8.6195 12.2962
5 24 16 10 -36 16 12 -56 20 16 -56 15 10.23 -45
5 24 16 9 -20 16 10 -36 10 4 -20 20 16 -56
5 24 20 16 -56 16 10 -36 16 12 -56 16 9 -20

0 // Fillets
1 16 16 16 8.5 4 0 0 0 0 -7 0 3 0 tri4.dat
1 16 16 16 -11.5 4 0 0 0 0 -7 0 3 0 tri4.dat

1 16 18 16 -30 2 0 0 0 -1 0 0 0 -1.5 rect.dat
4 16 16 9.5313 -28.5 16 16 -28.5 16 16 -31.5 16 9.7187 -31.5
4 16 16 16 -31.5 20 16 -31.5 17.2778 11.2361 -31.5 16 9.7187 -31.5
4 16 16 16 -28.5 16 9.5313 -28.5 16.9444 10.6528 -28.5 20 16 -28.5
2 24 16 9.5313 -28.5 16 16 -28.5
2 24 16 9.7187 -31.5 16 16 -31.5
2 24 16.9444 10.6528 -28.5 16 9.5313 -28.5
2 24 17.2778 11.2361 -31.5 16 9.7187 -31.5
2 24 16 9.5313 -28.5 16 9.7187 -31.5
2 24 16 11.25 -48.5 16 16 -48.5
2 24 16 11.55 -51.5 16 16 -51.5
2 24 16.9444 10.6528 -28.5 20 16 -28.5
2 24 20 16 -31.5 17.2778 11.2361 -31.5

1 16 18 16 -50 2 0 0 0 -1 0 0 0 -1.5 rect.dat
4 16 16 11.25 -48.5 16 16 -48.5 16 16 -51.5 16 11.55 -51.5
4 16 20 16 -51.5 19.5 15.125 -51.5 19.1 14.65 -51.5 16 16 -51.5
3 16 16 16 -51.5 19.1 14.65 -51.5 16 11.55 -51.5
4 16 16 16 -48.5 18.5 13.75 -48.5 19.1667 14.5417 -48.5 20 16 -48.5
3 16 18.5 13.75 -48.5 16 16 -48.5 16 11.25 -48.5
2 24 19.1667 14.5417 -48.5 20 16 -48.5
2 24 16 11.25 -48.5 18.5 13.75 -48.5
2 24 18.5 13.75 -48.5 19.1667 14.5417 -48.5
2 24 19.5 15.125 -51.5 20 16 -51.5
2 24 16 11.55 -51.5 19.1 14.65 -51.5
2 24 19.1 14.65 -51.5 19.5 15.125 -51.5
2 24 16 11.55 -51.5 16 11.25 -48.5
