Unofficial File parts/741ac01.dat
Part Attributes:
File Header:

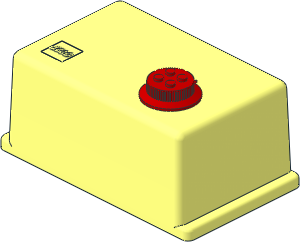

0 Electric Train 12V Transformer Type 2 (Complete)
0 Name: 741ac01.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Shortcut
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP place u9607c01.dat or 2775c02.dat
0 !HELP 1 16 87 -57 95 1 0 0 0 1 0 0 0 1 u9607c01.dat
0 !HELP 1 16 87 -33 95 1 0 0 0 1 0 0 0 1 u9607c01.dat
0 BFC CERTIFY CCW
0 !KEYWORDS BrickLink bb0092, Rebrickable upn0127
Show contents
0 // Bottom imprint (view from below)
0 // rear electric contacts are on this side
0 // ╔════════════════════════════╗
0 // ║ .... Transformator 741 ... ║
0 // ║ (lotsa electrical permits) ║
0 // ║ (more electrical permits). ║
0 // ║ Eingang: 220V~ 50/60Hz ... ║
0 // ║ Ausgang: 5-7-9-12V eff.= . ║=== Cable
0 // ║ ........ 2-3-4-5VA ....... ║
0 // ║ mit Schutzschalter 0,75A . ║
0 // ║ nur für trockene Räume ... ║
0 // ║ Made in Western Germany .. ║
0 // ╚════════════════════════════╝
1 16 0 0 0 1 0 0 0 1 0 0 0 1 u9612.dat
1 19 0 0 0 1 0 0 0 1 0 0 0 1 u9613.dat
1 4 70 -141.6 -35 1 0 0 0 1 0 0 0 1 u9614.dat
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
Current Votes:
None
Official parents and subparts
Part Events:
2024-01-05 15:55:12
the cable is cut off somehow
2024-10-01 16:14:52
steffen, the cable end is now linked in...
is the cable better that way or should it be longer?
is the cable better that way or should it be longer?
bottom imprints with electrical data
changed to shortcut without cable
(more compact, no holes in shell)
(more compact, no holes in shell)
