File Detail parts/s/1613s01.dat

Official File parts/s/1613s01.dat

File Header:

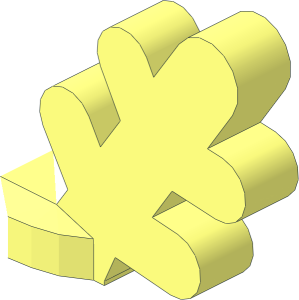

0 ~Animal Antlers with Pin Half
0 Name: s\1613s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Subpart UPDATE 2024-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-10-27 [OrionP] Official Update 2024-09

Show contents
