Official File parts/s/5118s03.dat
File Header:

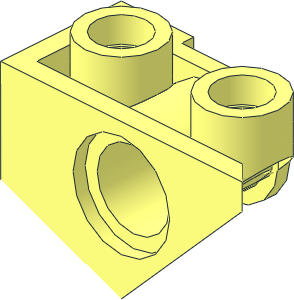

0 ~Slope Brick 45 6 x 8 Family - Basic Corner Geometry with Peghole
0 Name: s\5118s03.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Subpart UPDATE 2025-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-02-27 [OrionP] Official Update 2025-02
Show contents
0 // Pocket
4 16 1 -14 -7 1 -14 5.5 0 -14 5.5 -7 -14 -7
4 16 -7 -14 7 -7 -14 -7 0 -14 5.5 0 -14 7
2 24 1 -14 -7 1 -14 5.5
2 24 0 -14 5.5 1 -14 5.5
2 24 0 -14 7 0 -14 5.5
2 24 1 -14 -7 -7 -14 -7
1 16 10 -14 -7 9 0 0 0 0 -9 0 12.5 0 2-4cylo.dat
2 24 3.5 -20.1603 0 3.2337 -19.7617 -1.3395
2 24 2.4749 -18.6263 -2.4749 3.2337 -19.7617 -1.3395
2 24 1.6849 -17.4443 -3.0028 1.3395 -15.7071 -3.2337
2 24 2.4749 -18.6263 -2.4749 1.6849 -17.4443 -3.0028
2 24 1.3395 -15.7071 -3.2337 1 -14 -3.3012
2 24 1 -14 3.3012 1.3395 -15.7071 3.2337
2 24 1.6849 -17.4443 3.0028 1.3395 -15.7071 3.2337
2 24 2.4749 -18.6263 2.4749 1.6849 -17.4443 3.0028
2 24 2.4749 -18.6263 2.4749 3.2337 -19.7617 1.3395
2 24 3.5 -20.1603 0 3.2337 -19.7617 1.3395
0 BFC INVERTNEXT
1 16 0 -24 0 3.5 0 0 0 10 0 0 0 3.5 4-4cylo.dat
1 16 0 -21.9437 0 0 0 -6 0 7.9437 0 6 0 0 9-16cyli.dat
1 16 0 -14 0 0 0 -6 0 1 0 6 0 0 9-16edge.dat
1 16 0 -21.9437 0 6 0 0 0 12.8686 0 0 0 6 3-16cyls.dat
1 16 0 -21.9437 0 6 0 0 0 12.8686 0 0 0 -6 3-16cyls.dat
2 24 6 -21.9437 0 5.5434 -21.6386 -2.2962
2 24 5.5434 -21.6386 2.2962 6 -21.9437 0
2 24 3.6361 -20.3639 -4.6479 2.2962 -18.359 -5.5434
2 24 3.6361 -20.3639 -4.6479 4.2426 -20.7692 -4.2426
2 24 5.5434 -21.6386 -2.2962 4.2426 -20.7692 -4.2426
2 24 2.3611 -18.4562 5.5 3.6361 -20.3639 4.6479
2 24 4.2426 -20.7692 4.2426 3.6361 -20.3639 4.6479
2 24 4.2426 -20.7692 4.2426 5.5434 -21.6386 2.2962
2 24 1.6849 -17.4443 -5.665 1 -14 -5.8012
2 24 1.6849 -17.4443 -5.665 2.2962 -18.359 -5.5434
1 16 0 -24 0 .5 0 0 0 1 0 0 0 .5 4-4ring7.dat
1 16 0 -24 0 4 0 0 0 1 0 0 0 4 4-4edge.dat
1 16 0 -24 0 6 0 0 0 2.0563 0 0 0 6 4-4cyli.dat
1 16 0 -24 0 1 0 0 0 1 0 0 0 1 stud2a.dat
4 16 19 -14 -7 27 -22 -7 20 -15 5.5 19 -14 5.5
2 24 19 -14 -7 19 -14 5.5
2 24 27 -22 -7 19 -14 -7
0 BFC INVERTNEXT
1 16 20 -18.5 0 3.5 0 0 0 3.5 0 0 0 3.5 4-4cylse.dat
0 BFC INVERTNEXT
1 16 20 -24 0 3.5 0 0 0 5.5 0 0 0 3.5 4-4cyli.dat
2 24 18.3151 -17.4443 3.0028 17.5252 -18.6263 2.4749
2 24 18.3151 -17.4443 -3.0028 17.5252 -18.6263 -2.4749
2 24 18.6606 -15.7071 3.2337 18.3151 -17.4443 3.0028
2 24 18.6606 -15.7071 3.2337 19 -14 3.3012
2 24 18.6606 -15.7071 -3.2337 19 -14 -3.3012
2 24 18.6606 -15.7071 -3.2337 18.3151 -17.4443 -3.0028
2 24 17.5252 -18.6263 -2.4749 16.7664 -19.7617 -1.3395
2 24 16.5 -20.1603 0 16.7664 -19.7617 -1.3395
2 24 16.5 -20.1603 0 16.7664 -19.7617 1.3395
2 24 17.5252 -18.6263 2.4749 16.7664 -19.7617 1.3395
1 16 20 -21 0 6 0 0 0 6 0 0 0 6 1-4cyls.dat
1 16 20 -15 0 6 0 0 -6 1 0 0 0 6 1-4edge.dat
1 16 20 -21 0 6 0 0 0 6 0 0 0 -6 1-4cyls.dat
1 16 20 -15 0 6 0 0 -6 1 0 0 0 -6 5-16edge.dat
1 16 20 -15 0 6 0 0 0 6 0 0 0 -6 1-16cyls2.dat
1 16 20 -15 0 0 0 -6 0 -6 0 -6 0 0 1-16cyli.dat
1 16 20 -24 0 6 0 0 0 3 0 0 0 6 4-4cyli.dat
1 16 20 -21 0 -6 0 0 0 6 0 0 0 6 3-16cyls.dat
1 16 20 -21 0 -6 0 0 0 9.7197 0 0 0 -6 3-16cyls.dat
2 24 18.3151 -17.4443 -5.665 19 -14 -5.8012
2 24 16.3639 -20.3639 4.6479 15.7574 -20.7692 4.2426
2 24 16.3639 -20.3639 4.6479 17.6389 -18.4562 5.5
2 24 14.4566 -21.6386 2.2962 15.7574 -20.7692 4.2426
2 24 14.4566 -21.6386 -2.2962 15.7574 -20.7692 -4.2426
2 24 14.4566 -21.6386 -2.2962 14 -21.9437 0
2 24 14.4566 -21.6386 2.2962 14 -21.9437 0
2 24 16.3639 -20.3639 -4.6479 15.7574 -20.7692 -4.2426
2 24 17.7038 -18.359 -5.5434 16.3639 -20.3639 -4.6479
2 24 18.3151 -17.4443 -5.665 17.7038 -18.359 -5.5434
1 16 20 -24 0 .5 0 0 0 1 0 0 0 .5 4-4ring7.dat
1 16 20 -24 0 3.5 0 0 0 1 0 0 0 3.5 4-4edge.dat
1 16 20 -24 0 4 0 0 0 1 0 0 0 4 4-4edge.dat
1 16 20 -24 0 1 0 0 0 1 0 0 0 1 stud2a.dat
0 BFC INVERTNEXT
1 16 -3.5 -19 0 0 -3.5 0 -5 0 0 0 0 7 box2-5.dat
1 16 10 -14 -7 9 0 0 0 0 -9 0 -1 0 2-4ndis.dat
1 16 10 -14 5.5 9 0 0 0 0 -9 0 1 0 2-4ndis.dat
4 16 0 -24 5.5 0 -24 7 0 -14 7 0 -14 5.5
4 16 20 -24 5.5 0 -24 5.5 1 -23 5.5 10 -23 5.5
4 16 1 -23 -7 1 -14 -7 -7 -14 -7 -7 -24 -7
4 16 27 -24 -7 27 -22 -7 19 -14 -7 19 -23 -7
4 16 27 -24 -7 19 -23 -7 10 -23 -7 -7 -24 -7
3 16 10 -23 -7 1 -23 -7 -7 -24 -7
3 16 19 -23 5.5 20 -24 5.5 10 -23 5.5
2 24 27 -24 -7 -7 -24 -7
2 24 20 -24 5.5 20 -24 7
2 24 0 -24 5.5 0 -24 7
2 24 20 -24 5.5 0 -24 5.5
2 24 27 -24 -7 27 -22 -7
2 24 2.3611 -24 5.5 2.2962 -24 5.5434
2 24 0 -24 6 0 -14 6
2 24 2.2962 -24 5.5434 0 -24 6
2 24 2.3611 -18.4562 5.5 2.3611 -24 5.5
2 24 17.7038 -24 5.5434 20 -24 6
2 24 17.6389 -24 5.5 17.7038 -24 5.5434
2 24 17.6389 -18.4562 5.5 17.6389 -24 5.5
2 24 20 -24 6 20 -15 6
0 // Outside
4 16 -10 -24 -10 -7 -24 -7 -7 -24 7 -10 -24 10
4 16 27 -24 -7 -7 -24 -7 -10 -24 -10 30 -24 -10
4 16 2 -24 10 -10 -24 10 -7 -24 7 0 -24 7
4 16 2 -24 10 0 -24 7 0 -24 5.5 2 -24 8
4 16 18 -24 8 2 -24 8 0 -24 5.5 20 -24 5.5
4 16 18 -24 10 18 -24 8 20 -24 5.5 20 -24 7
1 16 10 -14 -10 1 0 0 0 0 -1 0 1 0 peghole.dat
0 BFC INVERTNEXT
1 16 10 -14 -8 6 0 0 0 0 -6 0 16 0 4-4cyli.dat
1 16 10 -14 -10 8 0 0 0 0 -8 0 1 0 3-4ndis.dat
1 16 10 -14 -10 8 0 0 0 0 8 0 1 0 1-8tndis.dat
1 16 10 -14 -10 0 0 8 8 0 0 0 1 0 1-8tndis.dat
4 16 18 -8.3432 -10 15.6568 -6 -10 10 0 -10 30 -20 -10
3 16 30 -20 -10 18 -14 -10 18 -8.3432 -10
3 16 15.6568 -8.3432 -10 15.6568 -6 -10 18 -8.3432 -10
3 16 2 -6 -10 -10 -8 -10 10 0 -10
3 16 -10 -24 -10 2 -22 -10 10 -22 -10
4 16 10 -22 -10 18 -22 -10 30 -24 -10 -10 -24 -10
3 16 2 -22 -10 -10 -24 -10 2 -14 -10
4 16 2 -14 -10 -10 -24 -10 -10 -8 -10 2 -6 -10
3 16 2 -6 -10 10 0 -10 10 -6 -10
3 16 15.6568 -6 -10 10 -6 -10 10 0 -10
4 16 30 -24 -10 18 -22 -10 18 -14 -10 30 -20 -10
2 24 -10 -24 -10 30 -24 -10
2 24 30 -24 -10 30 -20 -10
2 24 30 -20 -10 10 0 -10
1 16 -10 -16 0 0 1 0 8 0 0 0 0 -10 rect.dat
1 16 10 -14 10 1 0 0 0 0 1 0 -1 0 peghole5.dat
1 16 10 -14 10 -8 0 0 0 0 8 0 -1 0 1-8tndis.dat
3 16 2 -8.3432 10 -10 -8 10 2 -14 10
4 16 -10 -24 10 2 -24 10 2 -14 10 -10 -8 10
2 24 2 -24 10 -10 -24 10
1 16 10 -14 10 8 0 0 0 0 8 0 1 0 1-4chrd.dat
3 16 10 -8 10 10 -6 10 18 -14 10
