Official File parts/5117.dat

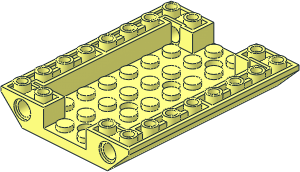

0 Slope Brick 45 6 x 8 Double Inverted with Open Centre and 4 Holes
0 Name: 5117.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2025-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-01-05 {LEGO Instructions App} Original part shape
0 !HISTORY 2024-01-25 [GeraldLasser] File preparation for LDraw Parts Tracker
0 !HISTORY 2025-02-27 [OrionP] Official Update 2025-02Show file code:
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\5117s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\5117s01.dat
1 16 0 24 0 37 0 0 0 1 0 0 0 76 recte4.dat
0 // Studs
1 16 0 20 0 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -30 16 0 0 0 1 0 1 0 -1 0 0 stug-1x6.dat
1 16 -10 16 0 0 0 1 0 1 0 -1 0 0 stug-1x8.dat
1 16 10 16 0 0 0 1 0 1 0 -1 0 0 stug-1x8.dat
1 16 30 16 0 0 0 1 0 1 0 -1 0 0 stug-1x6.datStatus
Official
Part Dependencies
Unofficial parents
