Unofficial File parts/18742.dat
Part Attributes:
File Header:

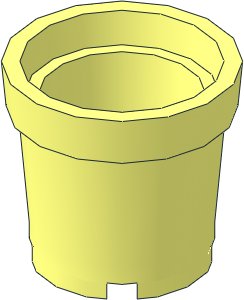

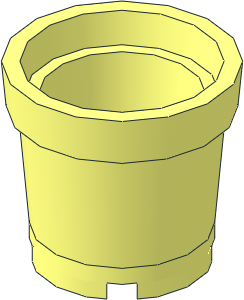

0 Bucket 2 x 2 without Handle Holes
0 Name: 18742.dat
0 Author: Jens Brühl [jb70]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Container
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\18742s01.dat
1 16 0 0 0 0 0 1 0 1 0 -1 0 0 s\18742s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\18742s01.dat
1 16 0 0 0 0 0 -1 0 1 0 1 0 0 s\18742s01.dat
0 // underside
1 16 0 4 0 1 0 0 0 -1 0 0 0 1 stud4.dat
0 // lower outside
1 16 0 0 0 20 0 0 0 4 0 0 0 20 4-4cyli.dat
1 16 0 0 0 20 0 0 0 1 0 0 0 20 4-4edge.dat
1 16 0 -29 0 2.5 0 0 0 29 0 0 0 2.5 4-4con8.dat
0 // upper boundary (outside)
1 16 0 -29 0 25 0 0 0 1 0 0 0 25 4-4edge.dat
1 16 0 -29 0 22.5 0 0 0 1 0 0 0 22.5 4-4edge.dat
1 16 0 -29 0 2.5 0 0 0 -1 0 0 0 2.5 4-4ring9.dat
1 16 0 -40 0 26 0 0 0 1 0 0 0 26 4-4edge.dat
1 16 0 -40 0 1 0 0 0 11 0 0 0 1 4-4con25.dat
0 // upper boundary (inside)
1 16 0 -40 0 22 0 0 0 1 0 0 0 22 4-4edge.dat
1 16 0 -40 0 2 0 0 0 1 0 0 0 2 4-4ring11.dat
1 16 0 -40 0 2 0 0 0 1 0 0 0 2 4-4ring12.dat
0 BFC INVERTNEXT
1 16 0 -40 0 1 0 0 0 8 0 0 0 1 4-4con21.dat
1 16 0 -32 0 3 0 0 0 1 0 0 0 3 4-4ring6.dat
1 16 0 -32 0 21 0 0 0 1 0 0 0 21 4-4edge.dat
1 16 0 -32 0 18 0 0 0 1 0 0 0 18 4-4edge.dat
0 // inside area
0 BFC INVERTNEXT
1 16 0 -32 0 2 0 0 0 32 0 0 0 2 4-4con8.dat
1 16 0 0 0 16 0 0 0 1 0 0 0 16 4-4edge.dat
Status:
Awaiting Admin Review (CCN)
Current Votes:
| User | Vote |
|---|---|
| Philo | Certify |
| MagFors | Certify |
Official parents and subparts
Part Events:
2024-01-31 18:05:27
Created subfile for repeated quarter section.
Added missing Cond Lines.
Using flat top and collar.
Corrected geometry based on real part measurements.
Added missing Cond Lines.
Using flat top and collar.
Corrected geometry based on real part measurements.
2025-09-19 20:27:15
* Shouldn't the origin be at the bottom of the part?
2025-09-19 20:29:49
anything which fits inside or on top? what are the small holes for?
2025-09-19 20:57:23
Not suffocating when swallowing the thing? pretty small holes though for this purpose?
Added edge line between bottom and cone.
Removed T-juncs, 5-digit rect and rotated chord.
Removed T-juncs, 5-digit rect and rotated chord.
2025-11-01 16:28:06
2025-11-01 17:28:28
2025-11-04 03:06:33
2025-11-04 13:38:17
I think the origin is wrong. As a "tile" it should at the bottom of the bottom.
I think Magnus is correct.
See above
@Magnus
Do you mean this origin?
Is this part a "Tile"? - OK, it does not have studs.
Why at the bottom of the bottom? The Tiles 3070b.dat and 3068b.dat do have the origin at the top of their surfaces.
Do you mean this origin?
Is this part a "Tile"? - OK, it does not have studs.
Why at the bottom of the bottom? The Tiles 3070b.dat and 3068b.dat do have the origin at the top of their surfaces.
2025-11-05 20:25:32
Before I used the same origin (-8 LDU from the bottom) as in 48245.dat to make these parts easily exchangable?
2025-11-05 22:17:13
Tiles generally have the origin at the top, i.e. where the bottom of the studs would be. The other option would be to call this a studless part and have the origin at the bottom of the bottom. However, since 48245 has the origin at tile-height, this part should also have the origin at the same height.
2025-11-05 22:31:56
Yes, Tile is a bad example.
Most minifig accessories with a bottom attach point, and no top stud, have the origin at the bottom surface.
Most minifig accessories with a bottom attach point, and no top stud, have the origin at the bottom surface.
2025-11-05 22:34:37
@Magnus, would you rather fix the origin of 48245?
I would change the origin of official part 48245, that would be incompatible.
So I would recommend to keep this new unofficial part 18742 at the same origin as 48245.
So I would recommend to keep this new unofficial part 18742 at the same origin as 48245.
2025-11-06 00:20:37
Sorry for the Typo:
I would NOT change the origin of official part 48245, that would be incompatible.
So I would recommend to keep this new unofficial part 18742 at the same origin as 48245.
I would NOT change the origin of official part 48245, that would be incompatible.
So I would recommend to keep this new unofficial part 18742 at the same origin as 48245.
2025-11-06 06:54:46
You have a good point there. Better with a similar origin as the other bucket.
Good point indeed. Can be seen as a 2x2 round tile with "extension" on top, then this origin is fine.
2025-11-06 16:50:29
