File Detail parts/3001pt1.dat

Download Download zip file View patterns/composites/shortcuts

Official File parts/3001pt1.dat

Part Attributes: Base Part: 3001.dat

External Sites:

View on Rebrickable View on BrickLink View on BrickOwl

File Header:

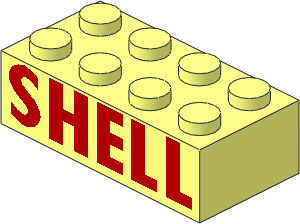

0 Brick  2 x  4 with "SHELL" Pattern
0 Name: 3001pt1.dat
0 Author: Tore Eriksson [Tore_Eriksson]
0 !LDRAW_ORG Part UPDATE 2022-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS BrickLink 3001oldpb02, Rebrickable 3001apr0002, set 325

0 !CMDLINE -c15

0 !HISTORY 2004-09-15 [PTadmin] Official Update 2004-03
0 !HISTORY 2007-05-07 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2014-02-23 [mikeheide] Made two concave quads plane
0 !HISTORY 2014-02-23 [MMR1988] Removed t-junctions
0 !HISTORY 2014-06-21 [PTadmin] Official Update 2014-01
0 !HISTORY 2022-03-06 [PTadmin] Official Update 2022-02

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3001s01.dat
4 4 37 21 -20 37 17 -20 32 17 -20 26.5 21 -20
4 4 32 17 -20 32 1 -20 26.5 1 -20 26.5 21 -20
4 16 40 0 -20 32 1 -20 32 17 -20 37 17 -20
4 4 23 21 -20 23 17 -20 18 17 -20 12.5 21 -20
4 4 18 17 -20 18 1 -20 12.5 1 -20 12.5 21 -20
4 16 26.5 1 -20 18 1 -20 18 17 -20 23 17 -20
4 16 26.5 1 -20 23 17 -20 23 21 -20 26.5 21 -20
3 4 4 9 -20 4 5 -20 -1.5 1 -20
4 4 4 13 -20 4 9 -20 -1.5 1 -20 -1.5 21 -20
3 4 4 17 -20 4 13 -20 -1.5 21 -20
4 4 9 21 -20 9 17 -20 4 17 -20 -1.5 21 -20
4 4 4 5 -20 9 5 -20 9 1 -20 -1.5 1 -20
4 4 4 13 -20 9 13 -20 9 9 -20 4 9 -20
3 16 12.5 1 -20 9 1 -20 9 5 -20
3 16 12.5 1 -20 9 5 -20 9 9 -20
4 16 12.5 1 -20 9 9 -20 9 13 -20 12.5 21 -20
3 16 9 13 -20 9 17 -20 12.5 21 -20
3 16 9 17 -20 9 21 -20 12.5 21 -20
4 16 4 17 -20 9 17 -20 9 13 -20 4 13 -20
4 16 9 5 -20 4 5 -20 4 9 -20 9 9 -20
3 4 -5 21 -20 -10.5 13 -20 -10.5 21 -20
4 4 -5 21 -20 -5 1 -20 -10.5 9 -20 -10.5 13 -20
3 4 -5 1 -20 -10.5 1 -20 -10.5 9 -20
4 4 -15 13 -20 -10.5 13 -20 -10.5 9 -20 -15 9 -20
3 4 -15 9 -20 -15 1 -20 -20.5 1 -20
4 4 -15 13 -20 -15 9 -20 -20.5 1 -20 -20.5 21 -20
3 4 -15 21 -20 -15 13 -20 -20.5 21 -20
4 16 -1.5 1 -20 -5 1 -20 -5 21 -20 -1.5 21 -20
4 16 -15 9 -20 -10.5 9 -20 -10.5 1 -20 -15 1 -20
4 16 -10.5 13 -20 -15 13 -20 -15 21 -20 -10.5 21 -20
4 4 -26.3 11 -20 -31.1 7.9 -20 -35.7 9.8 -20 -34.7 11 -20
4 4 -31.1 7.9 -20 -31.6 7.35 -20 -36.5 8.4 -20 -35.7 9.8 -20
4 4 -31.6 7.35 -20 -32 6.5 -20 -37 6.5 -20 -36.5 8.4 -20
4 4 -32 6.5 -20 -31.7 5.8 -20 -36 4 -20 -37 6.5 -20
4 4 -31.7 5.8 -20 -31.3 5.3 -20 -34.7 2.6 -20 -36 4 -20
4 4 -31.3 5.3 -20 -30.95 4.95 -20 -32.8 1.6 -20 -34.7 2.6 -20
4 4 -30.95 4.95 -20 -30.5 4.7 -20 -30.5 1 -20 -32.8 1.6 -20
4 4 -30.5 4.7 -20 -29 4.9 -20 -27.8 1.7 -20 -30.5 1 -20
4 4 -29 4.9 -20 -27.7 5.3 -20 -25 3 -20 -27.8 1.7 -20
3 4 -27.7 5.3 -20 -25 7 -20 -25 3 -20
4 4 -34.7 11 -20 -29.9 14.1 -20 -25.3 12.2 -20 -26.3 11 -20
4 4 -29.9 14.1 -20 -29.4 14.65 -20 -24.5 13.6 -20 -25.3 12.2 -20
4 4 -29.4 14.65 -20 -29 15.5 -20 -24 15.5 -20 -24.5 13.6 -20
4 4 -29 15.5 -20 -29.3 16.2 -20 -25 18 -20 -24 15.5 -20
4 4 -29.3 16.2 -20 -29.7 16.7 -20 -26.3 19.4 -20 -25 18 -20
4 4 -29.7 16.7 -20 -30.05 17.05 -20 -28.2 20.4 -20 -26.3 19.4 -20
4 4 -30.05 17.05 -20 -30.5 17.3 -20 -30.5 21 -20 -28.2 20.4 -20
4 4 -30.5 17.3 -20 -32 17.1 -20 -33.2 20.3 -20 -30.5 21 -20
4 4 -32 17.1 -20 -33.3 16.7 -20 -36 19 -20 -33.2 20.3 -20
3 4 -33.3 16.7 -20 -36 15 -20 -36 19 -20
4 16 -20.5 21 -20 -20.5 1 -20 -25 3 -20 -25 7 -20
3 16 -20.5 1 -20 -30.5 1 -20 -27.8 1.7 -20
3 16 -20.5 1 -20 -27.8 1.7 -20 -25 3 -20
3 16 -40 0 -20 -32.8 1.6 -20 -30.5 1 -20
3 16 -40 0 -20 -34.7 2.6 -20 -32.8 1.6 -20
3 16 -40 0 -20 -37 6.5 -20 -36 4 -20
3 16 -40 0 -20 -36 4 -20 -34.7 2.6 -20
3 16 -40 24 -20 -30.5 21 -20 -33.2 20.3 -20
3 16 -40 24 -20 -33.2 20.3 -20 -36 19 -20
4 16 -40 24 -20 -36 19 -20 -36 15 -20 -40 0 -20
4 16 -36 15 -20 -36.5 8.4 -20 -37 6.5 -20 -40 0 -20
4 16 -36 15 -20 -33.3 16.7 -20 -35.7 9.8 -20 -36.5 8.4 -20
4 16 -33.3 16.7 -20 -32 17.1 -20 -34.7 11 -20 -35.7 9.8 -20
4 16 -32 17.1 -20 -30.5 17.3 -20 -29.9 14.1 -20 -34.7 11 -20
4 16 -30.5 17.3 -20 -30.05 17.05 -20 -29.4 14.65 -20 -29.9 14.1 -20
4 16 -30.05 17.05 -20 -29.7 16.7 -20 -29 15.5 -20 -29.4 14.65 -20
3 16 -29.7 16.7 -20 -29.3 16.2 -20 -29 15.5 -20
4 16 -20.5 21 -20 -28.2 20.4 -20 -30.5 21 -20 -40 24 -20
3 16 -20.5 21 -20 -26.3 19.4 -20 -28.2 20.4 -20
3 16 -20.5 21 -20 -25 18 -20 -26.3 19.4 -20
3 16 -20.5 21 -20 -24 15.5 -20 -25 18 -20
4 16 -20.5 21 -20 -25 7 -20 -24.5 13.6 -20 -24 15.5 -20
3 16 -25 7 -20 -25.3 12.2 -20 -24.5 13.6 -20
4 16 -25 7 -20 -27.7 5.3 -20 -26.3 11 -20 -25.3 12.2 -20
4 16 -27.7 5.3 -20 -29 4.9 -20 -31.1 7.9 -20 -26.3 11 -20
4 16 -29 4.9 -20 -30.5 4.7 -20 -31.6 7.35 -20 -31.1 7.9 -20
4 16 -30.5 4.7 -20 -30.95 4.95 -20 -32 6.5 -20 -31.6 7.35 -20
4 16 -30.95 4.95 -20 -31.3 5.3 -20 -31.7 5.8 -20 -32 6.5 -20
3 16 -40 0 -20 -30.5 1 -20 -20.5 1 -20
3 16 -40 0 -20 -20.5 1 -20 -15 1 -20
3 16 -40 0 -20 -15 1 -20 -10.5 1 -20
3 16 -40 0 -20 -10.5 1 -20 -5 1 -20
3 16 -40 0 -20 -5 1 -20 -1.5 1 -20
4 16 -40 0 -20 -1.5 1 -20 9 1 -20 40 0 -20
3 16 40 0 -20 9 1 -20 12.5 1 -20
3 16 40 0 -20 12.5 1 -20 18 1 -20
3 16 40 0 -20 18 1 -20 26.5 1 -20
3 16 40 0 -20 26.5 1 -20 32 1 -20
4 16 40 0 -20 37 17 -20 37 21 -20 40 24 -20
3 16 40 24 -20 37 21 -20 26.5 21 -20
3 16 40 24 -20 26.5 21 -20 23 21 -20
3 16 40 24 -20 23 21 -20 12.5 21 -20
3 16 40 24 -20 12.5 21 -20 9 21 -20
4 16 40 24 -20 9 21 -20 -1.5 21 -20 -40 24 -20
3 16 -40 24 -20 -1.5 21 -20 -5 21 -20
3 16 -40 24 -20 -5 21 -20 -10.5 21 -20
3 16 -40 24 -20 -10.5 21 -20 -15 21 -20
3 16 -40 24 -20 -15 21 -20 -20.5 21 -20
4 16 -40 0 20 40 0 20 40 24 20 -40 24 20
