Unofficial File parts/923.dat
Part Attributes:
File Header:

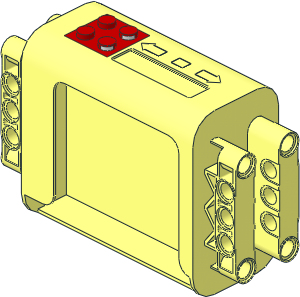

0 ~Electric 9V Battery Box with Pegholes Case
0 Name: 923.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2011-07-25 [PTadmin] Official Update 2011-01
0 !HISTORY 2024-02-06 [Steffen] used stug, changed winding
