Unofficial File parts/u9257.dat
Part Attributes:
File Header:

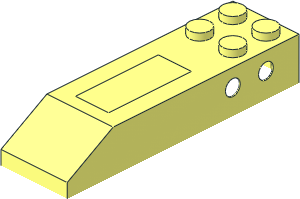

0 ~Electric Switch: Remote Control for Train Point 2 x 7 Top
0 Name: u9257.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Electric
0 !HISTORY 2024-02-15 [Steffen] separated into ~parts
0 !HISTORY 2024-11-11 [Blechtaler] moved origin to top, separated electric contacts
0 !HISTORY 2026-07-01 [MagFors] closed mesh
Show contents
1 16 0 0 0 0 0 1 0 1 0 -1 0 0 stug-2x2.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\u9257s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\u9257s01.dat
1 16 0 13 20 3.5 0 0 0 0 3.5 0 -1 0 4-4ndis.dat
0 BFC INVERTNEXT
1 16 0 13 20 3.5 0 0 0 0 3.5 0 -4 0 4-4cylo.dat
1 16 0 13 16 3.5 0 0 0 0 3.5 0 1 0 4-4ndis.dat
4 16 -6.5 22.5 20 6.5 22.5 20 20 24 20 -20 24 20
4 16 6.5 19 20 6.5 22.5 20 -6.5 22.5 20 -6.5 19 20
3 16 0 16.5 20 6.5 19 20 -6.5 19 20
3 16 -20 0 20 20 0 20 0 9.5 20
4 16 -10.25 0 -34.75 10.25 0 -34.75 20 0 20 -20 0 20
0 BFC INVERTNEXT
1 16 0 0 -60 0 0 10.25 0 4 0 25.25 0 0 box4.dat
4 16 -20 0 -92.2872 20 0 -92.2872 10.25 0 -85.25 -10.25 0 -85.25
1 16 0 20 -120 0 0 20 4 0 0 0 1 0 rect2p.dat
1 16 0 8 -106.1436 0 0 20 8 1 0 -13.8564 0 0 rect.dat
1 16 0 21.1547 -116 0 0 16 2.8453 0 0 0 -1 0 rect2p.dat
1 16 0 11.1547 -103.6077 0 0 16 -7.1547 -1 0 12.3923 0 0 rect.dat
1 16 0 0 -36.1436 20 0 0 0 1 0 0 0 56.1436 recte3.dat
1 16 0 12 20 20 0 0 0 0 12 0 1 0 recte3.dat
1 16 0 24 -50 20 0 0 0 1 0 0 0 -70 recte3.dat
1 16 0 24 -50 16 0 0 0 1 0 0 0 -66 recte3.dat
1 16 0 14 16 16 0 0 0 0 10 0 1 0 recte3.dat
1 16 0 4 -37.6077 16 0 0 0 1 0 0 0 53.6077 recte3.dat
4 16 -20 24 -120 -16 24 -116 16 24 -116 20 24 -120
4 16 16 24 16 -16 24 16 -20 24 20 20 24 20
4 16 6.5 22.5 16 -6.5 22.5 16 -16 24 16 16 24 16
4 16 -6.5 22.5 16 6.5 22.5 16 6.5 19 16 -6.5 19 16
3 16 0 16.5 16 -6.5 19 16 6.5 19 16
3 16 0 9.5 16 16 4 16 -16 4 16
4 16 -16 4 16 16 4 16 10.25 4 -34.75 -10.25 4 -34.75
4 16 -10.25 4 -85.25 10.25 4 -85.25 16 4 -91.2154 -16 4 -91.2154
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has Uncertified Subfiles
Current Votes:
None
Official parents and subparts
Part Events:
Steffen [Steffen]
initially submitted the part.
2024-02-15 18:27:53
Steffen [Steffen]
posted a vote of Hold
2024-02-15 18:28:59
the floating 2 discs at the left side each should be converted into a very flat dish IMHO
Steffen [Steffen]
posted a vote of Hold
2024-02-15 18:30:52
the top hole for the red switch still needs to be modeled.
additionally it is too small, i.e. in its current size it just works for when the switch is NOT pressed.
but when you slightly rotate the switch so that it is either pressed down at the front or the rear part,
then the current hole is too small.
additionally it is too small, i.e. in its current size it just works for when the switch is NOT pressed.
but when you slightly rotate the switch so that it is either pressed down at the front or the rear part,
then the current hole is too small.
Rene Rechthaler [Blechtaler]
made the following comment.
2024-02-15 22:22:25
should the metallic insides be a separate part?
should the flat discs at the left side be replaced with bump5000? (but wider and flatter scaled)
should the flat discs at the left side be replaced with bump5000? (but wider and flatter scaled)
Rene Rechthaler [Blechtaler]
made the following comment.
2024-11-06 23:15:27
got better pics and dimensions
when reworking, should the origin get moved to the center of the stud group? (also for the main part)
when reworking, should the origin get moved to the center of the stud group? (also for the main part)
Rene Rechthaler [Blechtaler]
submitted a new version of the part (all votes reset).
2024-11-11 21:32:02
moved origin to top, separated contacts
Rene Rechthaler [Blechtaler]
submitted a new version of the part (all votes reset).
2024-11-14 12:59:59
corrected the vertical height of the middle hole (vertical distance at the triple is now 6 LDU)
Willy Tschager [Holly-Wood]
made the following comment.
2025-09-15 07:01:34
* Correct me if I'm wrong. When you sub you get authorship of the sub.
Magnus Forsberg [MagFors]
posted a vote of Hold
2025-09-15 15:58:50
Steffen don't do it like that. Often keeping the original author in the new files.
As a separate part, the bottom edges are missing.
As a separate part, the bottom edges are missing.
Magnus Forsberg [MagFors]
submitted a new version of the part (all votes reset).
2026-07-01 17:46:00
Rene Rechthaler [Blechtaler]
submitted a new version of the part (all votes reset).
2026-07-01 20:59:39
Rene Rechthaler [Blechtaler]
made the following comment.
2026-07-01 21:05:11
made it hollow and the switch cutout goes through now
Creative Commons Attribution License information
This part is copyright ©
Rene Rechthaler
Licensed under
CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Steffen, Magnus Forsberg
