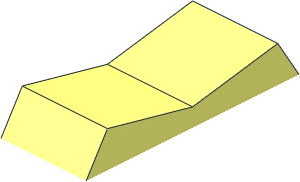

0 ~Electric Switch: Remote Control for Train Point 2 x 7 Switch
0 Name: u9258.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Electric
0 !CMDLINE -c4
0 !HISTORY 2024-02-15 [Steffen] separated into ~parts
0 !HISTORY 2024-11-11 [Blechtaler] moved origin to top, separated electric contacts
0 !HISTORY 2026-07-01 [MagFors] closed mesh
Show contents
1 16 0 -4 22.5 10 0 0 0 1 -4 0 0 -2.5 rect3.dat
1 16 0 -6 10 0 0 10 2 1 0 -10 0 0 rect2p.dat
2 24 -10 -4 0 10 -4 0
1 16 0 -6 -10 0 0 10 2 1 0 10 0 0 rect2p.dat
1 16 0 -4 -22.5 10 0 0 0 1 -4 0 0 2.5 rect3.dat
3 16 10 0 25 10 -8 20 10 -4 0
3 16 10 0 25 10 -4 0 10 0 -25
3 16 10 0 -25 10 -4 0 10 -8 -20
3 16 -10 -8 20 -10 0 25 -10 -4 0
3 16 -10 -4 0 -10 0 25 -10 0 -25
3 16 -10 -4 0 -10 0 -25 -10 -8 -20
1 16 0 0 0 0 0 -10 0 1 0 25 0 0 box5-2p.dat
