Official File parts/s/32208s01.dat
File Header:

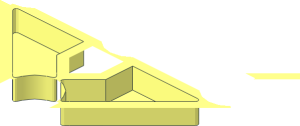

0 ~Znap Beam Angle 9 Holes - Centre Half
0 Name: s\32208s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Subpart UPDATE 2024-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02
Show contents
0 // Closure
3 16 40 -10 50 40 -10 48.9998 41.4877 -10 50.4876
3 16 40 -10 50 41.4877 -10 50.4876 49.6421 -10 58.6419
3 16 40 -10 50 49.6421 -10 58.6419 47.0711 -10 61.2131
3 16 40 -10 50 47.0711 -10 61.2131 35.8579 -10 50
1 16 -40 -10 40 0 0 9 0 1 0 -9 0 0 1-8tndis.dat
1 16 0 -10 40 0 0 9 0 1 0 -9 0 0 1-8tndis.dat
1 16 0 -10 40 0 0 -9 0 1 0 -9 0 0 1-8tndis.dat
1 16 40 -10 40 0 0 -9 0 1 0 -9 0 0 1-8tndis.dat
1 16 40 -10 40 0 0 9 0 1 0 -9 0 0 1-8tang.dat
3 16 -33.6361 -10 33.6361 -33.6361 -10 31 -31.5321 -10 33.6361
4 16 -6.3639 -10 31 -8.4679 -10 33.6361 -31.5321 -10 33.6361 -33.6361 -10 31
3 16 -8.4679 -10 33.6361 -6.3639 -10 31 -6.364 -10 33.636
3 16 6.3639 -10 33.6361 6.3639 -10 31 8.4679 -10 33.6361
4 16 33.6361 -10 31 31.5321 -10 33.6361 8.4679 -10 33.6361 6.3639 -10 31
3 16 31.5321 -10 33.6361 33.6361 -10 31 33.636 -10 33.636
3 16 -40 -10 31 -36.5802 -10 30 -33.6361 -10 31
4 16 -36.5802 -10 30 -10 -10 30 -6.3639 -10 31 -33.6361 -10 31
0 // Extension
1 16 -7.071 -10 7.071 .7071 0 .7071 0 8 0 .7071 0 -.7071 npeghol7.dat
0 BFC INVERTNEXT
1 16 -36.5802 -10 29 0 0 -1 0 8 0 1 0 0 8\3-8cylo.dat
1 16 -36.5802 -2 29 0 0 -1 0 1 0 1 0 0 8\3-8chrd.dat
1 16 -23.2901 -6 30 0 0 13.2901 4 0 0 0 1 0 rect3.dat
1 16 -24.4291 -6 15.432 -12.8582 -1 0 0 0 -4 12.8609 0 0 rect2p.dat
1 16 -10 -6 24.5 0 1 0 0 0 4 5.5 0 0 rect2p.dat
1 16 -6.2856 -6 15.2855 0 1 -3.71445 -4 0 0 0 0 3.71455 rect3.dat
4 16 -10 -2 30 -36.5802 -2 30 -37.2873 -2 28.2929 -10 -2 19
4 16 -2.5711 -2 11.5709 -10 -2 19 -37.2873 -2 28.2929 -11.5709 -2 2.5711
3 16 -10.4876 -10 1.4877 -10 -10 0 -9 -10 0
4 16 -10 -10 0 -10.4876 -10 1.4877 -37.2873 -10 28.2929 -10 -10 -4.1421
4 16 -10 -10 -4.1421 -37.2873 -10 28.2929 -40 -10 30 -44.1421 -10 30
3 16 -40 -10 30 -37.2873 -10 28.2929 -37.5802 -10 29
3 16 -40 -10 30 -37.5802 -10 29 -37.2873 -10 29.7071
4 16 -40 -10 31 -40 -10 30 -37.2873 -10 29.7071 -36.5802 -10 30
1 16 7.071 -10 7.071 -.7071 0 -.7071 0 8 0 .7071 0 -.7071 npeghol7.dat
0 BFC INVERTNEXT
1 16 36.5802 -10 29 0 0 1 0 8 0 1 0 0 8\3-8cylo.dat
1 16 36.5802 -2 29 0 0 1 0 1 0 1 0 0 8\3-8chrd.dat
1 16 23.2901 -6 30 0 0 -13.2901 4 0 0 0 1 0 rect3.dat
1 16 24.4291 -6 15.432 12.8582 1 0 0 0 -4 12.8609 0 0 rect2p.dat
1 16 10 -6 24.5 0 -1 0 0 0 4 5.5 0 0 rect2p.dat
1 16 6.2856 -6 15.2855 0 -1 3.71445 -4 0 0 0 0 3.71455 rect3.dat
4 16 36.5802 -2 30 10 -2 30 10 -2 19 37.2873 -2 28.2929
4 16 11.5709 -2 2.5711 37.2873 -2 28.2929 10 -2 19 2.5711 -2 11.5709
3 16 10 -10 0 10.4876 -10 1.4877 9 -10 0
4 16 37.2873 -10 28.2929 10.4876 -10 1.4877 10 -10 0 10 -10 -4.1421
4 16 40 -10 30 37.2873 -10 28.2929 10 -10 -4.1421 47.071 -10 32.929
3 16 37.2873 -10 28.2929 40 -10 30 37.5802 -10 29
3 16 37.5802 -10 29 40 -10 30 37.2873 -10 29.7071
3 16 37.2873 -10 29.7071 40 -10 30 36.5802 -10 30
4 16 6.3639 -10 30 6.3639 -10 20.5021 10 -10 19 10 -10 30
4 16 -6.3639 -10 20.5021 -6.3639 -10 30 -10 -10 30 -10 -10 19
3 16 1.4877 -10 10.4876 -1.4877 -10 10.4876 0 -10 9
4 16 -6.3639 -10 20.5021 -10 -10 19 -2.5711 -10 11.5709 0 -10 14.1421
4 16 2.5711 -10 11.5709 10 -10 19 6.3639 -10 20.5021 0 -10 14.1421
4 16 -10 -10 30 -6.3639 -10 30 0 -10 31 -6.3639 -10 31
4 16 6.3639 -10 31 0 -10 31 -6.3639 -10 30 6.3639 -10 30
4 16 33.6361 -10 31 6.3639 -10 31 6.3639 -10 30 10 -10 30
4 16 40 -10 31 33.6361 -10 31 10 -10 30 36.5802 -10 30
4 16 36.5802 -10 30 40 -10 30 41.7901 -10 31 40 -10 31
4 16 -1.4877 -10 10.4876 1.4877 -10 10.4876 2.5711 -10 11.5709 -2.5711 -10 11.5709
3 16 47.071 -10 32.929 46.3639 -10 33.6361 45.0985 -10 32.3698
3 16 47.071 -10 32.929 45.0985 -10 32.3698 43.4443 -10 31.6849
4 16 40 -10 30 47.071 -10 32.929 43.4443 -10 31.6849 41.7901 -10 31
3 16 0 -10 14.1421 -2.5711 -10 11.5709 2.5711 -10 11.5709
Status:
Official
This part has the following warnings
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 -6.2856 -6 15.2855 0 1 -3.71445 -4 0 0 0 0 3.71455 rect3.dat
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 6.2856 -6 15.2855 0 -1 3.71445 -4 0 0 0 0 3.71455 rect3.dat
