Official File parts/s/32213s01.dat
File Header:

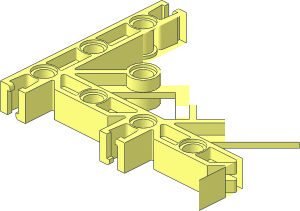

0 ~Znap Grid 15 Holes - Half
0 Name: s\32213s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Subpart UPDATE 2024-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-02-15 [GeraldLasser] Subfiled
0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02
Show contents
1 16 -80 0 -60 -1 0 0 0 1 0 0 0 1 znap6.dat
1 16 -80 0 -40 1 0 0 0 1 0 0 0 -1 connhole.dat
1 16 -80 0 -40 0 0 1 0 1 0 -1 0 0 znap3a.dat
1 16 -40 0 -40 0 0 1 0 1 0 -1 0 0 znap2.dat
1 16 -40 0 -40 1 0 0 0 1 0 0 0 1 connhole.dat
1 16 -40 0 -40 0 0 -1 0 1 0 1 0 0 znap2.dat
1 16 0 0 -40 0 0 -1 0 -1 0 -1 0 0 znap3b.dat
1 16 0 0 -40 0 0 1 0 1 0 -1 0 0 connhole.dat
1 16 0 0 -60 1 0 0 0 1 0 0 0 1 znap6.dat
1 16 0 0 -40 0 0 1 0 1 0 -1 0 0 znap3b.dat
1 16 40 0 -40 0 0 1 0 1 0 -1 0 0 znap2.dat
1 16 40 0 -40 1 0 0 0 1 0 0 0 1 connhole.dat
1 16 40 0 -40 0 0 -1 0 1 0 1 0 0 znap2.dat
1 16 80 0 -40 0 0 -1 0 -1 0 -1 0 0 znap3a.dat
1 16 -40 0 -50 20 0 0 0 0 -10 0 1 0 rect2p.dat
1 16 40 0 -50 20 0 0 0 0 -10 0 1 0 rect2p.dat
1 16 -80 0 -40 1 0 0 0 1 0 0 0 -1 znap2a.dat
1 16 -80 0 0 1 0 0 0 1 0 0 0 1 znap2.dat
1 16 -80 0 0 -1 0 0 0 1 0 0 0 1 connhole.dat
1 16 -80 0 0 1 0 0 0 1 0 0 0 -1 znap2.dat
1 16 -80 0 40 1 0 0 0 1 0 0 0 1 znap2a.dat
1 16 -80 0 40 1 0 0 0 1 0 0 0 -1 connhole.dat
1 16 -80 0 60 1 0 0 0 1 0 0 0 -1 znap6.dat
1 16 -90 0 0 0 1 0 0 0 -10 -65 0 0 rect2p.dat
1 16 -40 0 0 1 0 0 0 1 0 0 0 1 connhole.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\32213s02.dat
1 16 0 0 0 1 0 0 0 -1 0 0 0 1 s\32213s02.dat
1 16 -44.39335 0 -18.53555 0 -1 -11.46445 -2 0 0 0 0 -11.46445 rect3.dat
1 16 -26.46445 0 -.60665 -6.46445 -1 0 0 0 2 -6.46445 0 0 rect2p.dat
1 16 .8578 0 -25 5 1 0 0 0 2 5 0 0 rect2p.dat
1 16 -7.0711 0 -7.0711 0 1 -12.9289 -2 0 0 0 0 12.9289 rect.dat
1 16 -30 0 -30 25.8578 0 0 0 0 2 0 -1 0 rect1.dat
4 16 -70 -10 30 -70 -2 -15.8578 -70 2 -15.8578 -70 10 30
4 16 24.1422 -2 -30 70 -10 -30 70 10 -30 24.1422 2 -30
1 16 47.0711 0 -7.0711 -22.9289 -1 0 0 0 2 -22.9289 0 0 rect.dat
2 24 70 -10 -30 70 10 -30
Status:
Official
This part has the following warnings
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 -44.39335 0 -18.53555 0 -1 -11.46445 -2 0 0 0 0 -11.46445 rect3.dat
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 -26.46445 0 -.60665 -6.46445 -1 0 0 0 2 -6.46445 0 0 rect2p.dat
