Unofficial File parts/32939c01.dat
Part Attributes:
Base Part: 32939.dat
File Header:

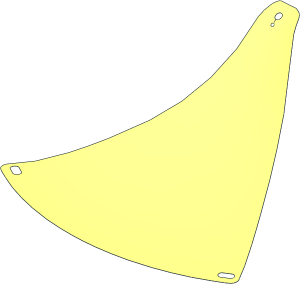

0 Sheet Fabric Triangular 21.8 x 20.7 with Curved Sides and 4 Holes (Formed)
0 Name: 32939c01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Sheet Fabric
0 !KEYWORDS BrickLink 32939, Carousel, Fairground, Rebrickable 32939, Set 10257
Show contents
1 16 0 -0.3 -0.1 1 0 0 0 1 0 0 0 1 s\32939c01s01.dat
1 16 0 -0.3 -0.1 -1 0 0 0 1 0 0 0 1 s\32939c01s01.dat
0 BFC INVERTNEXT
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\32939c01s01.dat
0 BFC INVERTNEXT
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\32939c01s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\32939c01s02.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\32939c01s02.dat
5 24 0 -5.6925 4.7777 0 -5.9925 4.6777 1.91 -5.7826 4.3177 -1.91 -5.7826 4.3177
5 24 0 6.6049 -12.7678 0 6.9049 -12.6678 0.96 6.4665 -12.626 -0.96 6.4665 -12.626
5 24 0 182.7 -346.86 0 183 -346.76 -19.33 182.7 -346.37 19.33 182.7 -346.37
2 24 0 3.1064 -9.1861 0 3.4064 -9.0861
2 24 0 -0.1677 -4.6962 0 -0.4677 -4.7962
5 24 0 141.31 -155.04 0 161.15 -208.67 -61.1108 161.15 -201.2279 61.1108 161.15 -201.2279
5 24 0 169.22 -235.72 0 175.6 -260.48 -73.6448 175.6 -251.4989 73.6448 175.6 -251.4989
5 24 0 51.71 -42.38 0 89.9 -75.76 28.9811 89.9 -72.2629 -28.9811 89.9 -72.2629
5 24 0 119.38 -113.41 0 141.61 -154.94 -48.1365 141.61 -149.0909 48.1365 141.61 -149.0909
5 24 0 119.08 -113.51 0 141.31 -155.04 -48.1365 141.31 -149.1909 48.1365 141.31 -149.1909
5 24 0 89.6 -75.86 0 119.08 -113.51 -38.0895 119.08 -108.8946 38.0895 119.08 -108.8946
5 24 0 51.41 -42.48 0 89.6 -75.86 -28.9811 89.6 -72.3629 28.9811 89.6 -72.3629
5 24 0 89.9 -75.76 0 119.38 -113.41 -38.0895 119.38 -108.7946 38.0895 119.38 -108.7946
5 24 0 175.9 -260.38 0 183 -303.57 84.0934 183 -293.306 -84.0934 183 -293.306
5 24 0 141.61 -154.94 0 161.45 -208.57 -61.1108 161.45 -201.1279 61.1108 161.45 -201.1279
5 24 0 175.6 -260.48 0 182.7 -303.67 -84.0934 182.7 -293.406 84.0934 182.7 -293.406
5 24 0 161.45 -208.57 0 169.52 -235.62 -67.6548 169.52 -227.3744 67.6548 169.52 -227.3744
5 24 0 169.52 -235.62 0 175.9 -260.38 73.6448 175.9 -251.3989 -73.6448 175.9 -251.3989
5 24 0 161.15 -208.67 0 169.22 -235.72 -67.6548 169.22 -227.4744 67.6548 169.22 -227.4744
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
This part has the following warnings
- Number in description may need a leading space
Current Votes:
None
Official parents and subparts
Part Events:
2024-02-18 17:21:14
2024-02-18 19:46:11
Seems to need more tweaking to really fit the model...
Improved shape to avoid collisions in 10257 model
2025-04-25 06:26:29
Header Edits
description:
Canvas Triangular 21.8 x 20.7 with Curved Sides and 4 Holes (Formed)
to
Sheet Fabric Triangular 21.8 x 20.7 with Curved Sides and 4 Holes (Formed)
