Unofficial File parts/51493.dat
Part Attributes:
File Header:

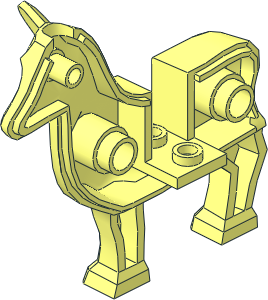

0 ~Animal Reindeer Body Right
0 Name: 51493.dat
0 Author: Fredrik Hareide [fhareide]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-02-19 {LEGO Digital Designer} Original part shape
0 !HISTORY 2024-02-19 [fhareide] File preparation for LDraw Parts Tracker
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\51493s00.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\51538s02.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\51538s03.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\51538s04.dat
Status:
Errors Found (HN)
This part has the following automated holds from the Parts Tracker
Current Votes:
| User | Vote |
|---|---|
| Holly-Wood | Hold |
Official parents and subparts
Part Events:
2024-02-21 10:12:10
Fixed a misunderstanding regarding shortcuts
* There is a gap between this and the head sub:
2 4 -8.924 -68.666 -59.429 -7.285 -70.539 -62.738
2 4 -9.688 -46.095 -53.679 -9.344 -41.342 -54.814
2 4 -7.002 -71.372 -54.422 -8.329 -71.032 -55.707
2 4 -8.329 -71.032 -55.707 -8.939 -70.563 -57.335
2 4 -9.344 -41.342 -54.814 -9.822 -32.005 -55.072
2 4 -9.822 -32.005 -55.072 -11.636 -19.278 -52.572
2 4 -7.285 -70.539 -62.738 -4.031 -71.817 -64.486
2 4 -8.939 -70.563 -57.335 -8.924 -68.666 -59.429
* The detail of the internal mesh should match the counterpart.
* Admittedly it is a bit steeper her but you used conds in the counterpart:
2 24 -13.734 12.294 44.567 0 11.527 48.451
2 24 -1.998 11.872 49.2 0 11.527 48.451
* Please check this in the Shortcut 69060:
2 4 0 13.091 17.531 0 12.935 17.383
* What are these vertices for?
2 110 0 -29 -10 0 -29 10
* As these conds are required something is wrong:
5 24 2.993 -56.36 -74.982 2.994 -57.746 -77.182 3.02 -59.836 -73.141 3.019 -52.702 -77.553
5 24 2.522 -31.361 -19.449 2.585 -29.14 -20.541 2.499 -33.099 -26.908 2.459 -30.083 -16.022
5 24 2.528 -38.171 -32.321 2.493 -39.714 -30.403 2.453 -35.065 -25.404 2.517 -49.521 -38.498
5 24 2.976 -42.442 -72.634 3.032 -44.896 -69.939 3.041 -43.39 -60.227 2.993 -41.696 -80.134
5 24 3.041 -44.005 -83.754 2.993 -43.01 -86.154 2.947 -41.651 -83.758 3.041 -45.417 -85.13
5 24 2.729 -29.764 29.774 2.833 -28.024 37.119 3.029 -30.09 37.666 2.799 -27.809 30.005
but since the two halves penetrate each other:
1 4 0 0 0 1 0 0 0 1 0 0 0 1 51493.dat
1 46 0 0 0 1 0 0 0 1 0 0 0 1 51538.dat
it would be best to just copy geometry from 51538:
4 31 0 -29.185 13.728 0 -31.024 10 0 -31.207 19.999 0 -29.422 19.944
4 31 0 -30.452 29.752 0 -29.422 19.944 0 -31.207 19.999 0 -32.739 29.755
4 31 0 -30.664 37.772 0 -30.452 29.752 0 -32.739 29.755 0 -32.854 37.775
3 31 0 -30.664 37.772 0 -32.854 37.775 -.905 -30.505 44.29
3 31 -1.135 -28.787 43.264 0 -30.664 37.772 -.905 -30.505 44.29
4 31 0 -14.295 -57.918 0 -5.495 -54.332 0 -4.335 -56.68 0 -13.906 -60.283
4 31 0 -51.301 -36.147 0 -62.416 -41.307 0 -56.747 -36.512 0 -48.989 -33.197
4 31 2.441 -29.424 19.941 0 -29.422 19.944 0 -30.452 29.752 2.426 -30.452 29.752
3 31 2.426 -30.452 29.752 0 -30.452 29.752 0 -30.664 37.772
3 31 2.545 -30.138 37.772 2.426 -30.452 29.752 0 -30.664 37.772
3 31 2.545 -30.138 37.772 0 -30.664 37.772 1.98 -27.975 43.282
3 31 0 -30.664 37.772 -1.135 -28.787 43.264 1.98 -27.975 43.282
3 31 0 -14.295 -57.918 3 -6.33 -54.311 0 -5.495 -54.332
3 31 0 -14.295 -57.918 3 -14.42 -57.404 3 -6.33 -54.311
4 31 2.466 -62.416 -41.75 0 -62.416 -41.307 0 -51.301 -36.147 2.493 -50.659 -36.291
4 31 3 -7.399 -52.615 3 -6.33 -54.311 3 -14.42 -57.404 3 -14.992 -55.602
4 31 2.494 -61.223 -43.928 2.466 -62.416 -41.75 2.493 -50.659 -36.291 2.517 -49.521 -38.498
4 31 2.441 -29.424 19.941 2.426 -30.452 29.752 2.514 -27.764 29.823 2.493 -26.636 20.127
3 31 2.514 -27.764 29.823 2.426 -30.452 29.752 2.493 -27.976 36.435
3 31 2.426 -30.452 29.752 2.545 -30.138 37.772 2.493 -27.976 36.435
4 31 1.908 -25.852 41.956 2.493 -27.976 36.435 2.545 -30.138 37.772 1.98 -27.975 43.282
4 31 2.47 -29.185 13.728 2.441 -29.424 19.941 2.493 -26.636 20.127 2.522 -26.197 13.821
4 31 0 -29.185 13.728 0 -29.422 19.944 2.441 -29.424 19.941 2.47 -29.185 13.728
and merge the vertices accordingly.
2 4 -8.924 -68.666 -59.429 -7.285 -70.539 -62.738
2 4 -9.688 -46.095 -53.679 -9.344 -41.342 -54.814
2 4 -7.002 -71.372 -54.422 -8.329 -71.032 -55.707
2 4 -8.329 -71.032 -55.707 -8.939 -70.563 -57.335
2 4 -9.344 -41.342 -54.814 -9.822 -32.005 -55.072
2 4 -9.822 -32.005 -55.072 -11.636 -19.278 -52.572
2 4 -7.285 -70.539 -62.738 -4.031 -71.817 -64.486
2 4 -8.939 -70.563 -57.335 -8.924 -68.666 -59.429
* The detail of the internal mesh should match the counterpart.
* Admittedly it is a bit steeper her but you used conds in the counterpart:
2 24 -13.734 12.294 44.567 0 11.527 48.451
2 24 -1.998 11.872 49.2 0 11.527 48.451
* Please check this in the Shortcut 69060:
2 4 0 13.091 17.531 0 12.935 17.383
* What are these vertices for?
2 110 0 -29 -10 0 -29 10
* As these conds are required something is wrong:
5 24 2.993 -56.36 -74.982 2.994 -57.746 -77.182 3.02 -59.836 -73.141 3.019 -52.702 -77.553
5 24 2.522 -31.361 -19.449 2.585 -29.14 -20.541 2.499 -33.099 -26.908 2.459 -30.083 -16.022
5 24 2.528 -38.171 -32.321 2.493 -39.714 -30.403 2.453 -35.065 -25.404 2.517 -49.521 -38.498
5 24 2.976 -42.442 -72.634 3.032 -44.896 -69.939 3.041 -43.39 -60.227 2.993 -41.696 -80.134
5 24 3.041 -44.005 -83.754 2.993 -43.01 -86.154 2.947 -41.651 -83.758 3.041 -45.417 -85.13
5 24 2.729 -29.764 29.774 2.833 -28.024 37.119 3.029 -30.09 37.666 2.799 -27.809 30.005
but since the two halves penetrate each other:
1 4 0 0 0 1 0 0 0 1 0 0 0 1 51493.dat
1 46 0 0 0 1 0 0 0 1 0 0 0 1 51538.dat
it would be best to just copy geometry from 51538:
4 31 0 -29.185 13.728 0 -31.024 10 0 -31.207 19.999 0 -29.422 19.944
4 31 0 -30.452 29.752 0 -29.422 19.944 0 -31.207 19.999 0 -32.739 29.755
4 31 0 -30.664 37.772 0 -30.452 29.752 0 -32.739 29.755 0 -32.854 37.775
3 31 0 -30.664 37.772 0 -32.854 37.775 -.905 -30.505 44.29
3 31 -1.135 -28.787 43.264 0 -30.664 37.772 -.905 -30.505 44.29
4 31 0 -14.295 -57.918 0 -5.495 -54.332 0 -4.335 -56.68 0 -13.906 -60.283
4 31 0 -51.301 -36.147 0 -62.416 -41.307 0 -56.747 -36.512 0 -48.989 -33.197
4 31 2.441 -29.424 19.941 0 -29.422 19.944 0 -30.452 29.752 2.426 -30.452 29.752
3 31 2.426 -30.452 29.752 0 -30.452 29.752 0 -30.664 37.772
3 31 2.545 -30.138 37.772 2.426 -30.452 29.752 0 -30.664 37.772
3 31 2.545 -30.138 37.772 0 -30.664 37.772 1.98 -27.975 43.282
3 31 0 -30.664 37.772 -1.135 -28.787 43.264 1.98 -27.975 43.282
3 31 0 -14.295 -57.918 3 -6.33 -54.311 0 -5.495 -54.332
3 31 0 -14.295 -57.918 3 -14.42 -57.404 3 -6.33 -54.311
4 31 2.466 -62.416 -41.75 0 -62.416 -41.307 0 -51.301 -36.147 2.493 -50.659 -36.291
4 31 3 -7.399 -52.615 3 -6.33 -54.311 3 -14.42 -57.404 3 -14.992 -55.602
4 31 2.494 -61.223 -43.928 2.466 -62.416 -41.75 2.493 -50.659 -36.291 2.517 -49.521 -38.498
4 31 2.441 -29.424 19.941 2.426 -30.452 29.752 2.514 -27.764 29.823 2.493 -26.636 20.127
3 31 2.514 -27.764 29.823 2.426 -30.452 29.752 2.493 -27.976 36.435
3 31 2.426 -30.452 29.752 2.545 -30.138 37.772 2.493 -27.976 36.435
4 31 1.908 -25.852 41.956 2.493 -27.976 36.435 2.545 -30.138 37.772 1.98 -27.975 43.282
4 31 2.47 -29.185 13.728 2.441 -29.424 19.941 2.493 -26.636 20.127 2.522 -26.197 13.821
4 31 0 -29.185 13.728 0 -29.422 19.944 2.441 -29.424 19.941 2.47 -29.185 13.728
and merge the vertices accordingly.
