Unofficial File parts/69060.dat
Part Attributes:
File Header:

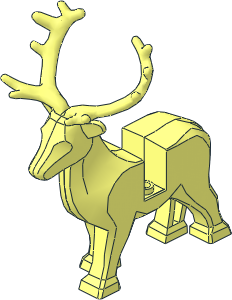

0 Animal Reindeer
0 Name: 69060.dat
0 Author: Fredrik Hareide [fhareide]
0 !LDRAW_ORG Unofficial_Shortcut
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Bricklink 51493c01, Deer, Rebrickable 51591, Set 75945, Stag
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 51493.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 51538.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 52084.dat
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfilesparts/51493.dat (Errors Found)
parts/51538.dat (Awaiting Admin Review)
parts/52084.dat (Needs More Votes)
parts/s/51538s02.dat (Needs More Votes)
parts/s/51538s03.dat (Needs More Votes)
parts/s/51538s04.dat (Needs More Votes)
parts/s/51493s00.dat (Needs More Votes)
parts/s/51538s02.dat (Needs More Votes)
parts/s/51538s03.dat (Needs More Votes)
parts/s/51538s04.dat (Needs More Votes)
parts/s/51538s00.dat (Needs More Votes)
parts/s/52084s01.dat (Errors Found)
parts/s/51538s01.dat (Needs More Votes)
parts/s/51538s01.dat (Needs More Votes)
Current Votes:
None
Official parents and subparts
Part Events:
2024-02-21 10:12:30
2024-02-21 10:22:54
Unsure about keeping this the HP one or if I should make aliases or something smarter
* Rounding errors:
2 4 -19.903 0 10.003 -19.903 0 -10.003
2 4 -19.838 -29.017 -10.004 -19.865 -29 10.003
2 4 19.92 -29.017 -10.004 20.009 -29.004 10.003
2 4 20.097 0 10.003 20.097 0 -10.003
* The seam in the middle has to be closed:
2 24 -.041 -58.675 -79.342 -.041 -62.65 -77.029
2 24 -.041 -53.975 -83.569 -.041 -58.675 -79.342
2 24 -.041 -69.492 -72.338 -.041 -74.592 -68.981
2 24 -.041 -53.977 -83.573 -.041 -58.677 -79.346
2 24 -.041 -62.652 -77.032 -.041 -66.558 -74.297
2 24 -.041 -62.65 -77.029 -.041 -66.556 -74.294
2 24 -.041 -66.558 -74.297 -.041 -69.492 -72.338
2 24 -.041 -49.392 -88.601 -.041 -53.977 -83.573
2 24 -.041 -58.677 -79.346 -.041 -62.652 -77.032
2 24 -.041 -49.39 -88.598 -.041 -53.975 -83.569
2 24 -.041 -69.49 -72.334 -.041 -74.59 -68.978
2 24 -.041 -66.556 -74.294 -.041 -69.49 -72.334
* Rounding errors also on the sides:
2 61 -19.473 56 -11.774 -19.646 56 -28.198
2 61 -19.665 56 47.49 -19.672 56 31.797
2 61 19.787 56 -48.334 19.885 56 -32.622
2 61 19.891 56 68.51 19.926 56 51.8
2 4 -19.903 0 10.003 -19.903 0 -10.003
2 4 -19.838 -29.017 -10.004 -19.865 -29 10.003
2 4 19.92 -29.017 -10.004 20.009 -29.004 10.003
2 4 20.097 0 10.003 20.097 0 -10.003
* The seam in the middle has to be closed:
2 24 -.041 -58.675 -79.342 -.041 -62.65 -77.029
2 24 -.041 -53.975 -83.569 -.041 -58.675 -79.342
2 24 -.041 -69.492 -72.338 -.041 -74.592 -68.981
2 24 -.041 -53.977 -83.573 -.041 -58.677 -79.346
2 24 -.041 -62.652 -77.032 -.041 -66.558 -74.297
2 24 -.041 -62.65 -77.029 -.041 -66.556 -74.294
2 24 -.041 -66.558 -74.297 -.041 -69.492 -72.338
2 24 -.041 -49.392 -88.601 -.041 -53.977 -83.573
2 24 -.041 -58.677 -79.346 -.041 -62.652 -77.032
2 24 -.041 -49.39 -88.598 -.041 -53.975 -83.569
2 24 -.041 -69.49 -72.334 -.041 -74.59 -68.978
2 24 -.041 -66.556 -74.294 -.041 -69.49 -72.334
* Rounding errors also on the sides:
2 61 -19.473 56 -11.774 -19.646 56 -28.198
2 61 -19.665 56 47.49 -19.672 56 31.797
2 61 19.787 56 -48.334 19.885 56 -32.622
2 61 19.891 56 68.51 19.926 56 51.8
Fixed a misunderstanding regarding shortcuts
2024-02-21 12:58:39
I need more information on the errors you refer to here. I can not see any issue in those areas. Care to elaborate a bit more?
* The cutout has to perfectly fit a 1x2x2. Your vertices need hard rounding:
1 47 0 -48 0 1 0 0 0 1 0 0 0 1 3245a.dat
2 3 20 -29 10 20 -29 -10
2 3 -20 -29 -10 -20 -29 10
2 4 -20 0 10 -20 0 -10
2 4 20 0 10 20 0 -10
* The seam has to be eliminated with:
2 2 -.041 -31.207 19.999 .041 -31.209 19.996
X=0 for both subs
* The part has to accommodate the LDraw system. In this case the cutout and the feet.
1 47 0 56 10 0 0 1 0 1 0 -1 0 0 3832.dat
1 47 -10 48 60 1 0 0 0 1 0 0 0 1 3024.dat
1 47 0 48 80 1 0 0 0 1 0 0 0 1 3023b.dat
1 47 10 48 40 1 0 0 0 1 0 0 0 1 3024.dat
2 5 20 56 68.51 20 56 51.865
2 5 1.3 56 50 18 56 50
2 5 1.3 56 70 1.3 56 50
2 5 1.3 56 70 18 56 70
1 47 0 -48 0 1 0 0 0 1 0 0 0 1 3245a.dat
2 3 20 -29 10 20 -29 -10
2 3 -20 -29 -10 -20 -29 10
2 4 -20 0 10 -20 0 -10
2 4 20 0 10 20 0 -10
* The seam has to be eliminated with:
2 2 -.041 -31.207 19.999 .041 -31.209 19.996
X=0 for both subs
* The part has to accommodate the LDraw system. In this case the cutout and the feet.
1 47 0 56 10 0 0 1 0 1 0 -1 0 0 3832.dat
1 47 -10 48 60 1 0 0 0 1 0 0 0 1 3024.dat
1 47 0 48 80 1 0 0 0 1 0 0 0 1 3023b.dat
1 47 10 48 40 1 0 0 0 1 0 0 0 1 3024.dat
2 5 20 56 68.51 20 56 51.865
2 5 1.3 56 50 18 56 50
2 5 1.3 56 70 1.3 56 50
2 5 1.3 56 70 18 56 70
2024-02-21 21:36:19
Thanks! I will do the necessary adjustments
2024-02-21 22:34:20
It might be worth adding a vertex or two at the back of the deer to smoothen the curve there, very point at the moment.
2024-02-22 10:01:17
Ok, I have now done my best to learn from the comments and alter the model thereafter. Let me know if something still is off. Regarding the hooves I kept the inner part at 1.0 and -1.0. Not 0. I have the real part in my hand and they do not go all the way to the middle. Gap is gone in the middle and I added a few segments to the back
2024-02-24 06:44:41
Creative Commons Attribution License information
This part is copyright © Fredrik Hareide
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
