File Detail parts/s/4412s02.dat

Official File parts/s/4412s02.dat

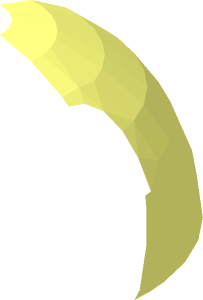

~Technic Dome 5 x 5 x 2.5 Outer Surface Quarter

File Header:

0 ~Technic Dome  5 x  5 x  2.5 Outer Surface Quarter
0 Name: s\4412s02.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Subpart UPDATE 2024-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-06-30 [OrionP] Official Update 2024-05
