File Detail parts/s/4412s00.dat

Official File parts/s/4412s00.dat

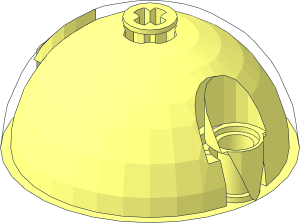

~Technic Dome 5 x 5 x 2.5 without Outer Surface

File Header:

0 ~Technic Dome  5 x  5 x  2.5 without Outer Surface
0 Name: s\4412s00.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Subpart UPDATE 2024-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-06-30 [OrionP] Official Update 2024-05

Show contents

1 16 40 -10 0 1 0 0 0 1 0 0 0 1 connhole.dat
1 16 -40 -10 0 1 0 0 0 1 0 0 0 1 connhole.dat
1 16 0 -50 0 1 0 0 0 20 0 0 0 1 axl3hole.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\4412s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\4412s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\4412s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\4412s01.dat
5 24 -26.5 -37.371 0 -22.609 -39.66 0 -26.96 -36.864 -3.472 -26.96 -36.864 3.472
5 24 0 -11.028 47.881 0 -23.529 43.176 8.423 -23.529 42.347 -8.423 -23.529 42.347
5 24 0 -30 -9.3 0 -44.7 -9.3 2.4068 -44.7 -8.9829 -2.4068 -44.7 -8.9829
5 24 -26.5 -20 0 -26.5 -37.371 0 -26.96 -36.864 -3.472 -26.96 -36.864 3.472
5 24 27.722 -40.629 0 29.6 -39.111 0 30.3914 -38.484 -3.9801 30.3914 -38.484 3.9801
5 24 0 -39.274 23.531 0 -33.845 30.956 -6.039 -33.845 30.362 6.039 -33.845 30.362
5 24 0 -44.7 -9.3 0 -42.778 -16.173 3.135 -42.782 -15.839 -3.135 -42.782 -15.839
5 24 0 -23.529 43.176 0 -31.856 37.542 -7.324 -31.856 36.82 7.324 -31.856 36.82
5 24 0 -42.778 -16.173 0 -39.274 -23.531 4.591 -39.274 -23.079 -4.591 -39.274 -23.079
5 24 -49.2 -20 0 -49.2 0 0 -49 -1.603 1.7901 -49 -1.603 -1.7901
5 24 -16.173 -42.778 0 -9.3 -44.7 0 -8.9829 -44.7 -2.4068 -8.9829 -44.7 2.4068
5 24 0 -39.62 28.544 0 -45.45 18.555 3.62 -45.45 18.199 -3.62 -45.45 18.199
5 24 0 -45.45 -18.555 0 -48.2 -9 3.62 -45.45 -18.199 -3.62 -45.45 -18.199
5 24 -29.6 -39.111 0 -29.6 -20 0 -30.3914 -20 -3.9801 -30.3914 -20 3.9801
5 24 18.555 -45.45 0 27.722 -40.629 0 27.189 -40.629 5.408 27.189 -40.629 -5.408
5 24 0 0 -49.25 0 -11.028 -47.881 9.341 -11.028 -46.961 -9.341 -11.028 -46.961
5 24 26.5 -20 0 26.5 -37.371 0 26.96 -36.864 -3.472 26.96 -36.864 3.472
5 24 0 -44.7 9.3 0 -42.778 16.173 3.135 -42.782 15.839 -3.135 -42.782 15.839
5 24 16.173 -42.778 0 9.3 -44.7 0 8.9829 -44.7 -2.4068 8.9829 -44.7 2.4068
5 24 0 -18.077 -42.183 0 -7.173 -45.559 8.888 -7.173 -44.683 -8.888 -7.173 -44.683
5 24 0 -30 9.3 0 -44.7 9.3 2.4068 -44.7 8.9829 -2.4068 -44.7 8.9829
5 24 -9.3 -44.7 0 -9.3 -30 0 -8.9829 -30 -2.4068 -8.9829 -30 2.4068
5 24 -27.722 -40.629 0 -29.6 -39.111 0 -30.3914 -38.484 3.9801 -30.3914 -38.484 -3.9801
5 24 -9 -48.2 0 -18.555 -45.45 0 -18.199 -45.45 3.62 -18.199 -45.45 -3.62
5 24 0 -31.856 37.542 0 -39.62 28.544 -5.569 -39.62 27.996 5.569 -39.62 27.996
5 24 0 -7.173 45.559 0 0 45.875 -8.95 0 44.994 8.95 0 44.994
5 24 9 -48.2 0 18.555 -45.45 0 18.199 -45.45 3.62 18.199 -45.45 -3.62
5 24 0 -31.856 -37.542 0 -39.62 -28.544 -5.569 -39.62 -27.996 5.569 -39.62 -27.996
5 24 0 -11.028 -47.881 0 -23.529 -43.176 -8.423 -23.529 -42.347 8.423 -23.529 -42.347
5 24 0 -27.912 -36.298 0 -18.077 -42.183 8.23 -18.077 -41.373 -8.23 -18.077 -41.373
5 24 9.3 -44.7 0 9.3 -30 0 8.9829 -30 -2.4068 8.9829 -30 2.4068
5 24 0 -18.077 42.183 0 -7.173 45.559 8.888 -7.173 44.683 -8.888 -7.173 44.683
5 24 0 -33.845 30.956 0 -27.912 36.298 -7.081 -27.912 35.6 7.081 -27.912 35.6
5 24 0 -42.778 16.173 0 -39.274 23.531 -4.591 -39.274 23.079 4.591 -39.274 23.079
5 24 0 -33.845 -30.956 0 -27.912 -36.298 7.081 -27.912 -35.6 -7.081 -27.912 -35.6
5 24 0 -39.62 -28.544 0 -45.45 -18.555 -3.62 -45.45 -18.199 3.62 -45.45 -18.199
5 24 29.6 -39.111 0 29.6 -20 0 30.3914 -20 3.9801 30.3914 -20 -3.9801
5 24 0 0 49.25 0 -11.028 47.881 -9.341 -11.028 46.961 9.341 -11.028 46.961
5 24 0 -7.173 -45.559 0 0 -45.875 8.95 0 -44.994 -8.95 0 -44.994
5 24 0 -27.912 36.298 0 -18.077 42.183 8.23 -18.077 41.373 -8.23 -18.077 41.373
5 24 0 -23.529 -43.176 0 -31.856 -37.542 7.324 -31.856 -36.82 -7.324 -31.856 -36.82
5 24 49.2 -20 0 49.2 0 0 49 -1.603 1.7901 49 -1.603 -1.7901
5 24 0 -39.274 -23.531 0 -33.845 -30.956 6.039 -33.845 -30.362 -6.039 -33.845 -30.362
5 24 26.5 -37.371 0 22.609 -39.66 0 26.96 -36.864 -3.472 26.96 -36.864 3.472
5 24 -18.555 -45.45 0 -27.722 -40.629 0 -27.189 -40.629 5.408 -27.189 -40.629 -5.408
5 24 0 -45.45 18.555 0 -48.2 9 -3.62 -45.45 18.199 3.62 -45.45 18.199
5 24 22.609 -39.66 0 16.173 -42.778 0 15.839 -42.782 3.135 15.839 -42.782 -3.135
5 24 -22.609 -39.66 0 -16.173 -42.778 0 -15.839 -42.782 -3.135 -15.839 -42.782 3.135
1 16 40 -16 0 1 0 0 0 1 0 0 0 -1 s\4412s03.dat
1 16 40 -16 0 1 0 0 0 1 0 0 0 1 s\4412s03.dat

Status:

Official
