File Detail parts/s/u9226bs01.dat

Unofficial File parts/s/u9226bs01.dat

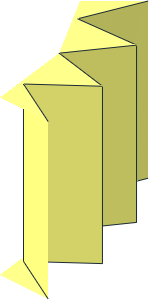

~Train Track 12V Tapered Point Vertical Axle Electric Teeth 1/8

File Header:

0 ~Train Track 12V Tapered Point Vertical Axle Electric Teeth 1/8
0 Name: s\u9226bs01.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

1 16 0 16 0 12 0 0 0 1 0 0 0 12 48\1-8aring.dat
1 16 0 25 0 12 0 0 0 -1 0 0 0 12 48\1-8aring.dat
3 16 12 16 0 15 16 0 11.8968 16 1.566
3 16 11.8968 16 1.566 14.4885 16 3.882 11.5908 16 3.1056
3 16 11.5908 16 3.1056 14.4885 16 3.882 11.0868 16 4.5924
3 16 10.392 16 6 11.0868 16 4.5924 12.99 16 7.5
3 16 10.392 16 6 12.99 16 7.5 9.5208 16 7.3056
3 16 8.4852 16 8.4852 9.5208 16 7.3056 10.6065 16 10.6065
3 16 15 25 0 12 25 0 11.8968 25 1.566
3 16 14.4885 25 3.882 11.8968 25 1.566 11.5908 25 3.1056
3 16 14.4885 25 3.882 11.5908 25 3.1056 11.0868 25 4.5924
3 16 11.0868 25 4.5924 10.392 25 6 12.99 25 7.5
3 16 12.99 25 7.5 10.392 25 6 9.5208 25 7.3056
3 16 9.5208 25 7.3056 8.4852 25 8.4852 10.6065 25 10.6065
1 16 13.4484 20.5 .783 0 -1 -1.5516 4.5 0 0 0 0 .783 rect3.dat
1 16 13.19265 20.5 2.724 1.29585 -1 0 0 0 -4.5 1.158 0 0 rect2p.dat
1 16 12.78765 20.5 4.2372 0 -1 1.70085 -4.5 0 0 0 0 -.3552 rect3.dat
1 16 12.0384 20.5 6.0462 0 -1 -.9516 -4.5 0 0 0 0 -1.4538 rect3.dat
1 16 11.2554 20.5 7.4028 1.7346 1 0 0 0 4.5 .0972 0 0 rect.dat
1 16 10.06365 20.5 8.95605 .54285 -1 0 0 0 -4.5 1.65045 0 0 rect2p.dat

Status:

Needs More Votes (CN)

This part has the following automated holds from the Parts Tracker

No path of certified files to a certified or official parent in the parts folder

Current Votes:

User	Vote
RainbowDolphin	Certify

Official parents and subparts

Part Events:

Rene Rechthaler [Blechtaler]

initially submitted the part.

2024-03-02 15:12:16

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2024-05-31 15:25:04
