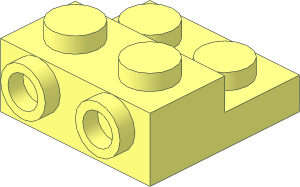

0 ~Plate 2 x 2 x 0.667 with Two Studs On Side and Two Raised - Common Area
0 Name: s\99206s01.dat
0 Author: Max Martin Richter [MMR1988]
0 !LDRAW_ORG Subpart UPDATE 2024-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-06-30 [OrionP] Official Update 2024-05
Show contents
0 // Underside Stud
1 16 0 4 10 0 0 8 0 8 0 -8 0 0 3-16cyli.dat
1 16 0 4 10 0 0 -8 0 8 0 -8 0 0 3-16cyli.dat
1 16 0 4 10 0 0 8 0 1 0 -8 0 0 3-16edge.dat
1 16 0 4 10 0 0 -8 0 1 0 -8 0 0 3-16edge.dat
1 16 0 12 10 0 0 -8 0 1 0 8 0 0 5-16edge.dat
1 16 0 12 10 0 0 8 0 1 0 8 0 0 5-16edge.dat
1 16 0 12 10 1 0 0 0 -1 0 0 0 1 stud4a.dat
2 24 -6.76 12 6 -7.39 12 6.94
2 24 6.76 12 6 7.39 12 6.94
0 // Underside box
4 16 16 16 -6 16 4 -6 16 4 6 16 12 6
4 16 -16 4 6 -16 4 -6 -16 16 -6 -16 12 6
4 16 16 16 -6 16 12 6 16 12 26 16 16 26
4 16 -16 12 26 -16 12 6 -16 16 -6 -16 16 26
1 16 0 14 26 0 0 16 2 0 0 0 1 0 rect2p.dat
1 16 0 16 10 16 0 0 0 1 0 0 0 16 recte4.dat
0 BFC INVERTNEXT
1 16 0 10 0 16 0 0 0 0 -6 0 -6 0 box2-7.dat
0 // Underside Face
4 16 -20 16 -10 -16 16 -6 16 16 -6 20 16 -10
4 16 -20 16 30 -16 16 26 -16 16 -6 -20 16 -10
4 16 20 16 30 16 16 26 -16 16 26 -20 16 30
4 16 20 16 -10 16 16 -6 16 16 26 20 16 30
0 // Outside Box
1 16 0 8 0 20 0 0 0 -8 0 0 0 -10 box2-7.dat
0 BFC INVERTNEXT
1 16 0 4 20 20 0 0 0 4 0 0 0 -10 box2-5.dat
1 16 0 12 30 0 0 20 4 0 0 0 -1 0 rect2p.dat
4 16 20 16 30 20 8 30 20 8 10 20 16 -10
4 16 20 0 -10 20 16 -10 20 8 10 20 0 10
4 16 -20 8 10 -20 8 30 -20 16 30 -20 16 -10
4 16 -20 8 10 -20 16 -10 -20 0 -10 -20 0 10
1 16 0 16 10 20 0 0 0 1 0 0 0 20 recte4.dat
0 // Studs
1 16 10 0 0 1 0 0 0 1 0 0 0 1 stud.dat
1 16 -10 0 0 1 0 0 0 1 0 0 0 1 stud.dat
1 16 -10 8 20 1 0 0 0 1 0 0 0 1 stud.dat
1 16 10 8 20 1 0 0 0 1 0 0 0 1 stud.dat
1 16 10 6 -10 0 0 1 1 0 0 0 1 0 stud2.dat
